Description

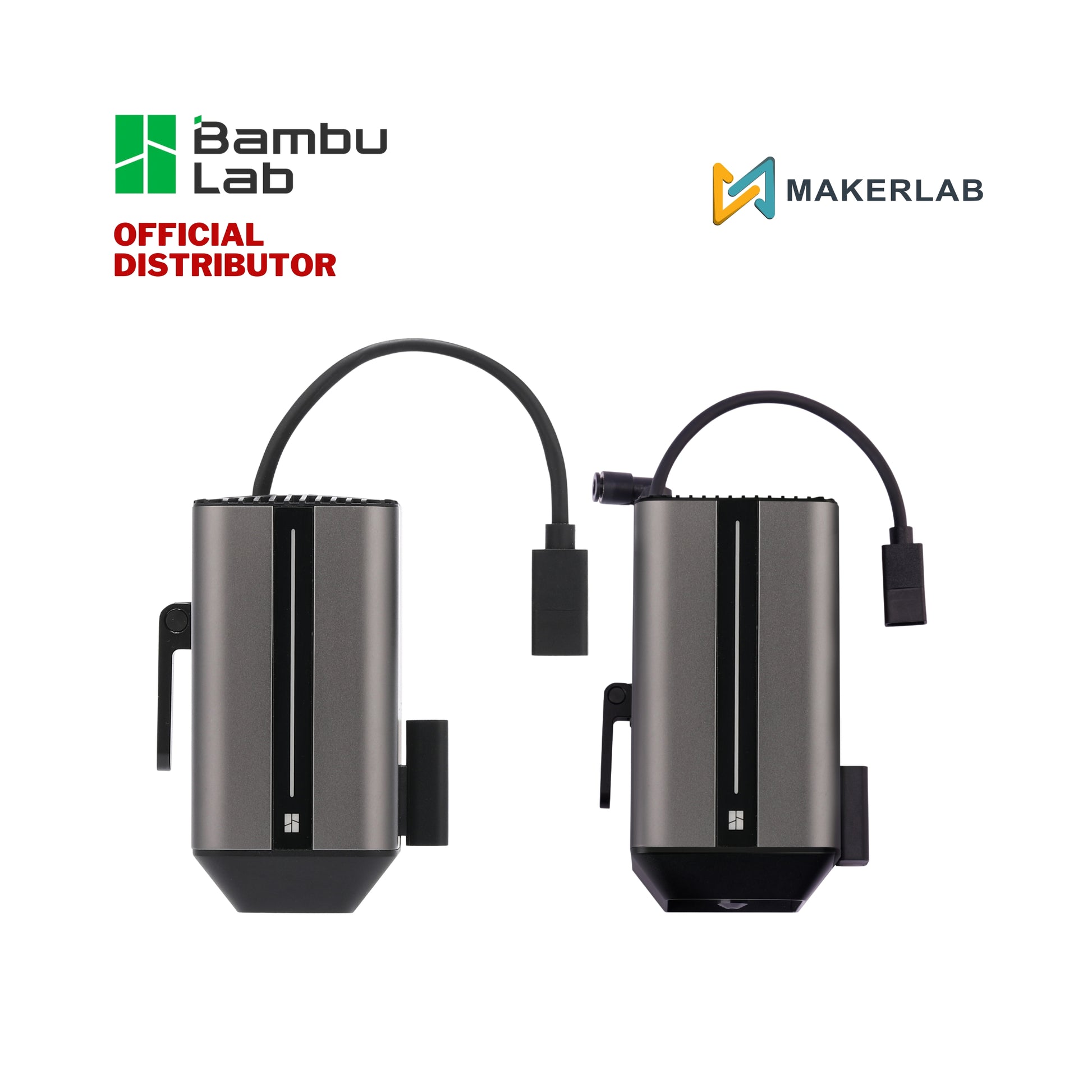

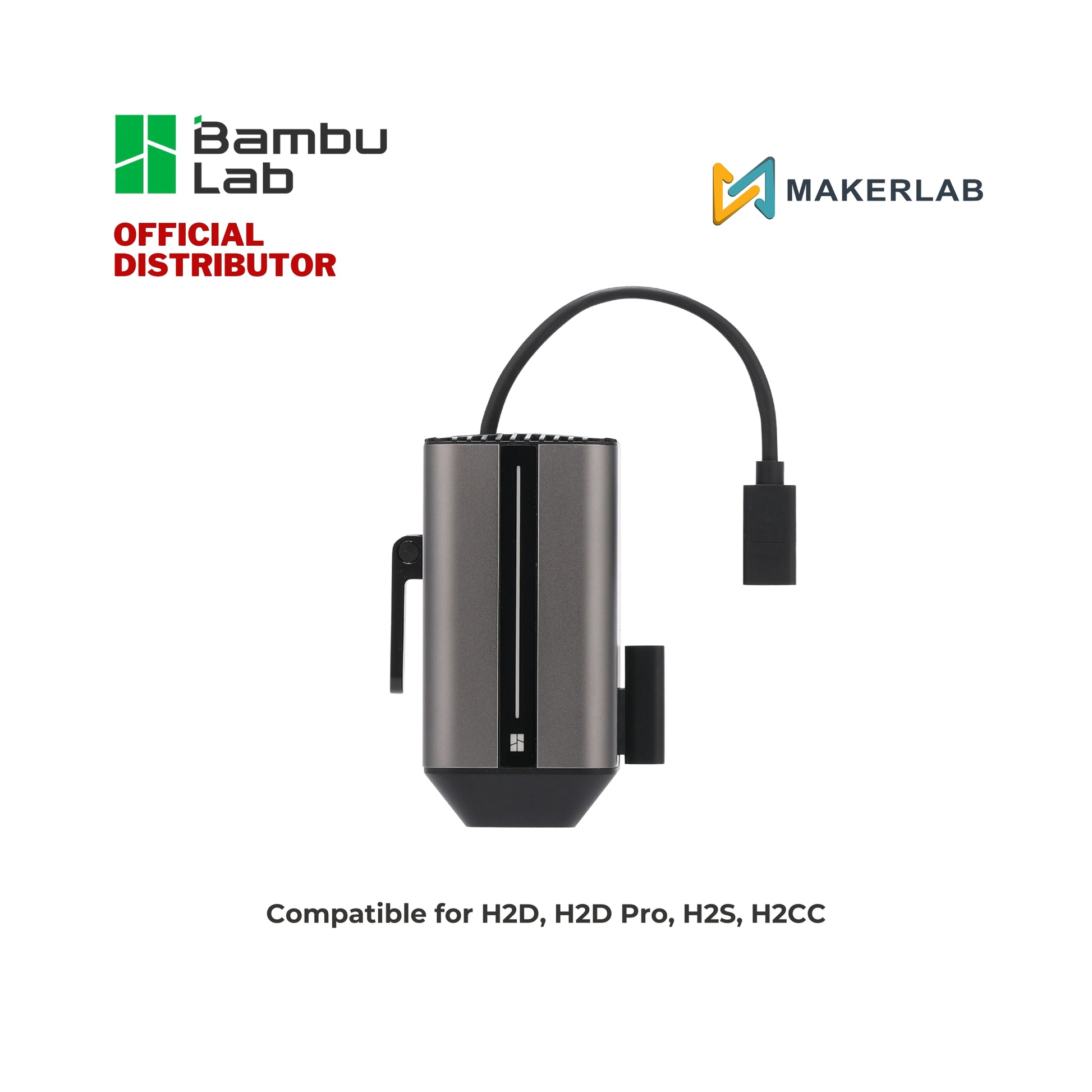

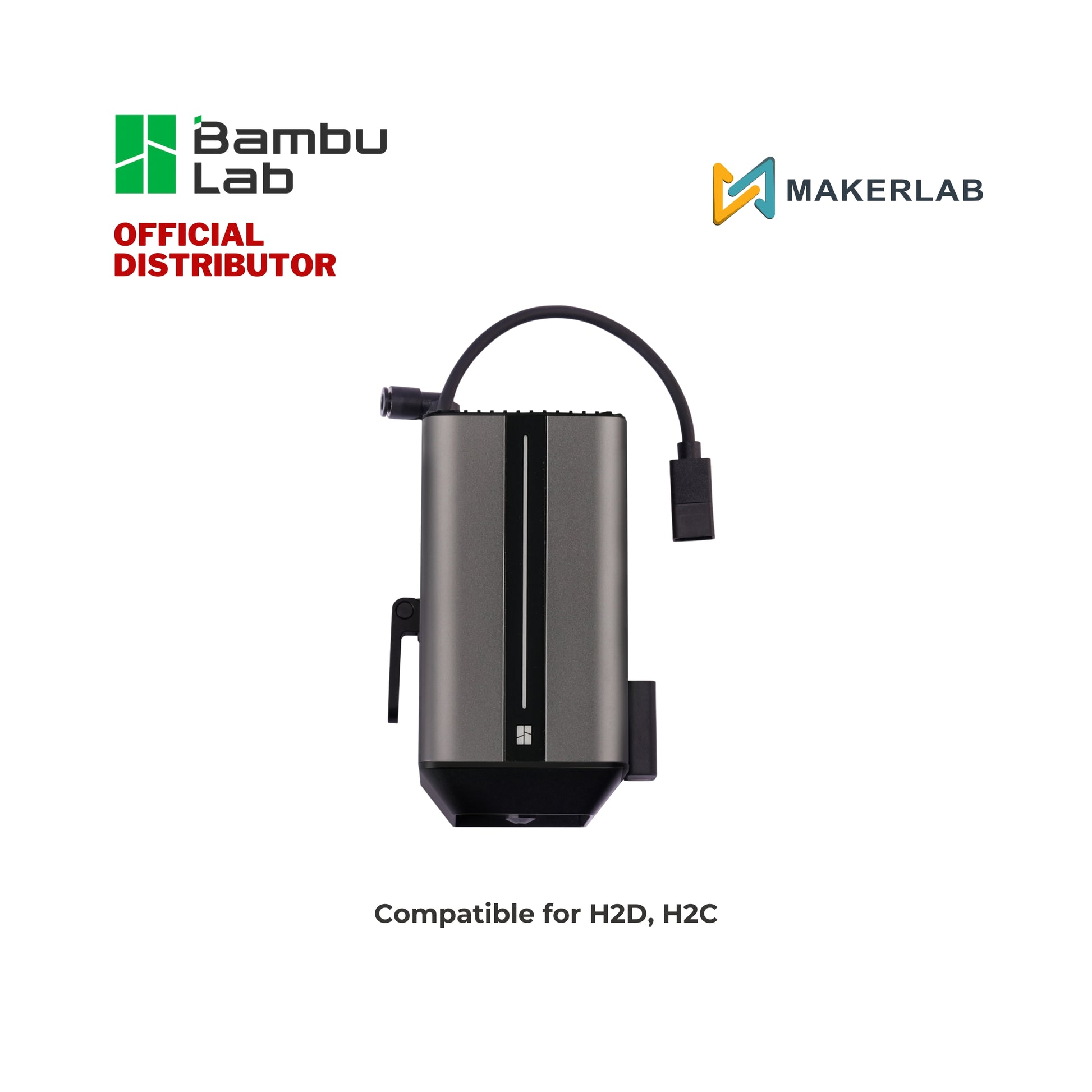

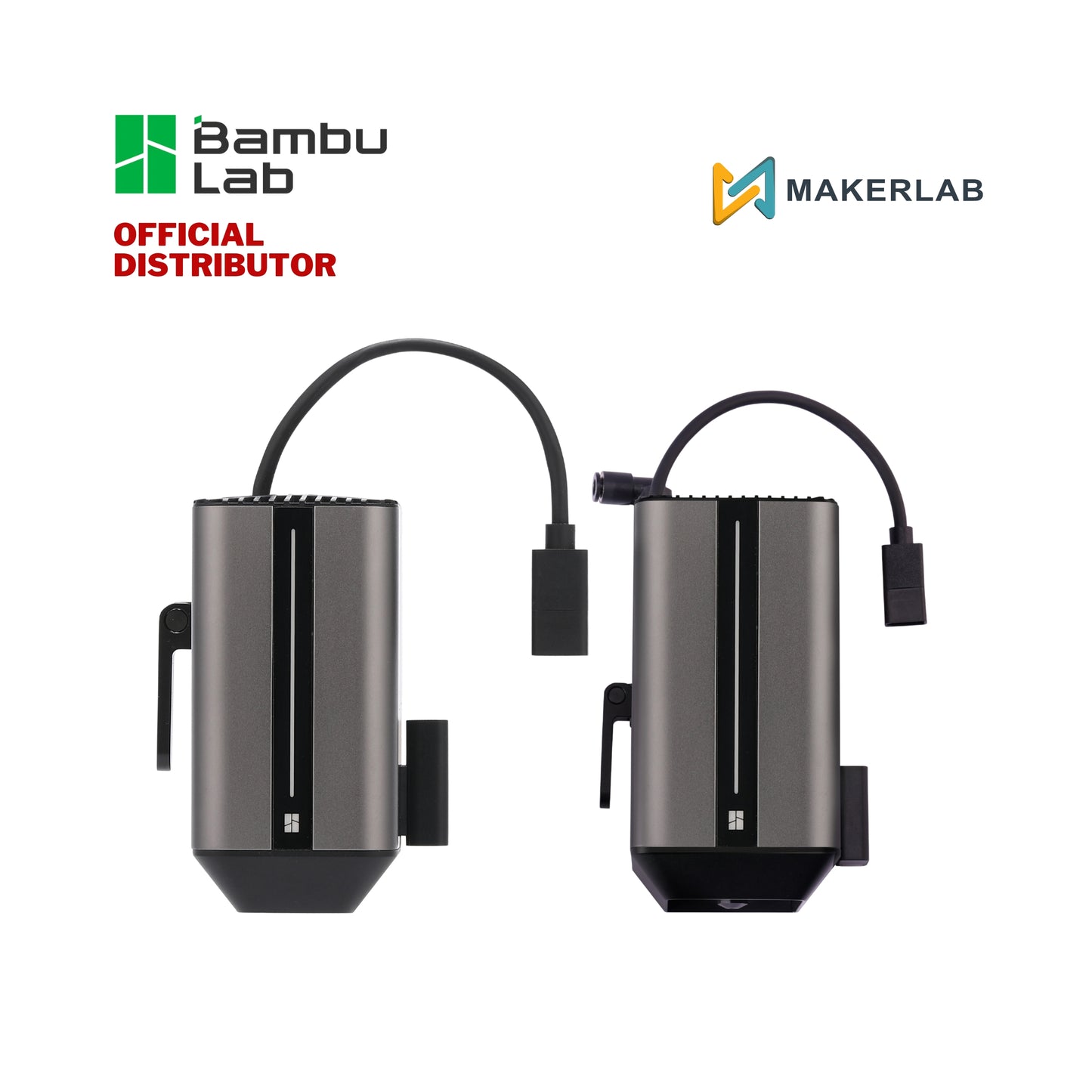

Designed for seamless integration into the printer's primary toolhead carriage slot, these modules skip the need for complex rewiring or external hardware control blocks. They utilize a standard 455nm blue semiconductor laser configuration backed by automated smart safety features—including native integration with the printer housing's built-in flame detection systems and active air assist.
Whether executing highly intricate vector engravings or slicing through structural prototyping blanks, these official modules work directly with Bambu Studio and built-in AI machine vision to deliver automatic layout optimization and digital-to-physical spatial alignment calibration.
Features
Powerful Cutting Efficiency
With its high-power 455nm laser, 40W laser module achieves blazing speeds up to 1000mm/s and effortlessly cuts through thicker plywood in a single pass.
Contact-less 3D Mesh*
Advanced optical height measurement creates a detailed 3D mesh without physical contact, enabling precise laser work on curved surfaces.
Air Assist
Improve surface quality by directing high-speed air to cool the laser path, ensuring cleaner and more precise results.
Flame Sensor
The H2 chamber is equipped with a flame sensor that can instantly detect fire. In the event of a fire, it quickly sends alerts through push notifications and a buzzer, minimizing potential risks.
Max Cutting Thickness
| Laser Module |
40W |
10W |
| Basswood Plywood |
15mm |
6mm |
| Birch Plywood |
15mm |
6mm |
| Bamboo Board |
6mm |
3mm |
| Black Acrylic |
15mm |
3mm |
| Cork Sheet |
4mm |
2mm |
| Stainless Metal |
0.1mm |
0.05mm |
Max Cutting Speed
| Laser Module |
40W |
10W |
| 3mm Basswood |
16mm/s |
5mm/s |
| 4mm Basswood |
15mm/d |
4mm/s |
| 6mm Basswood |
10mm/s |
2mm/s |
| 10mm Basswood |
4mm/s |
- |
Specifications
Laser Type: Semiconductor Laser
Laser Wavelength
Engraving Laser: 455 nm ± 5 nm Blue Light
Height Measuring Laser: 850 nm ± 5 nm Infrared Light
Laser Power
10 W ± 1 W
40 W ± 2 W
Laser Spot Dimension
10 W：0.14 x 0.03 mm
40 W：0.14 x 0.2 mm
Supported Material Type: Wood, rubber, metal sheet, leather, dark acrylic, stone, and more
Max Engraving Speed
10 W：400 mm/s
40 W： 1000 mm/s
Laser Safety Class for Laser Module: Class 4
Overall Laser Safety Class: Class 1
Engraving Area
10 W: 310 mm x 270 mm
40 W: 310 mm x 250 mm
Ventilation Pipe Adapter Outer Diameter: 100 mm
