Description

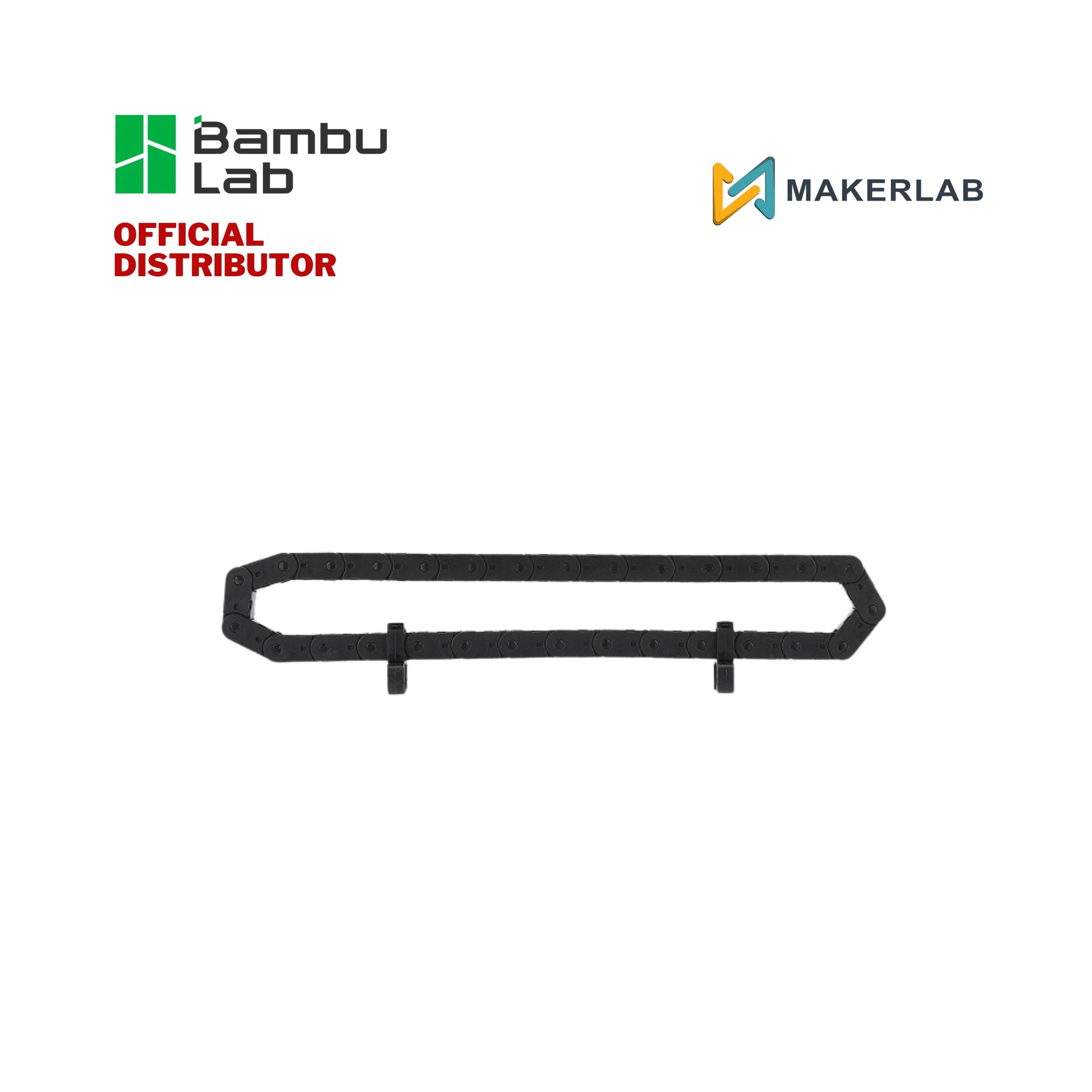

The Cable Chain assembly links the toolhead to the printer's rear, housing the PTFE tube, USB-C cable, and Toolhead-to-MC Board cable/power cable.
Features
Active Cable Protection: Prevents the toolhead cable and PTFE tube from rubbing against the carbon rods or metal frame during high-speed printing.
Optimized Bend Radius: Engineered to provide maximum flexibility without over-stressing the copper strands inside the high-density toolhead cables.
Modular Link Design: Made of individual snap-fit segments, allowing for easy inspection of the internal wires without completely removing the chain.
Heat-Stabilized Material: Constructed from premium engineering plastics that maintain structural integrity in the high-temperature environment of the H2S/P2S series.
Integrated Mounting Brackets: Includes pre-molded end links for secure attachment to both the toolhead carriage and the printer's rear gantry.
Installation
In the Box
For H2S
-
Cable Chain*1
-
Cable Chain Base*1
-
Cable Chain Base Clip*1
-
Cable Chain Clip*2
Compatibility
H2S and H2S Laser
Specifications
Materials: Plastic, Metal
Color: Black
Packaging Weight: 0.085 kg
Packaging Size: 100*135*45 mm
