Description

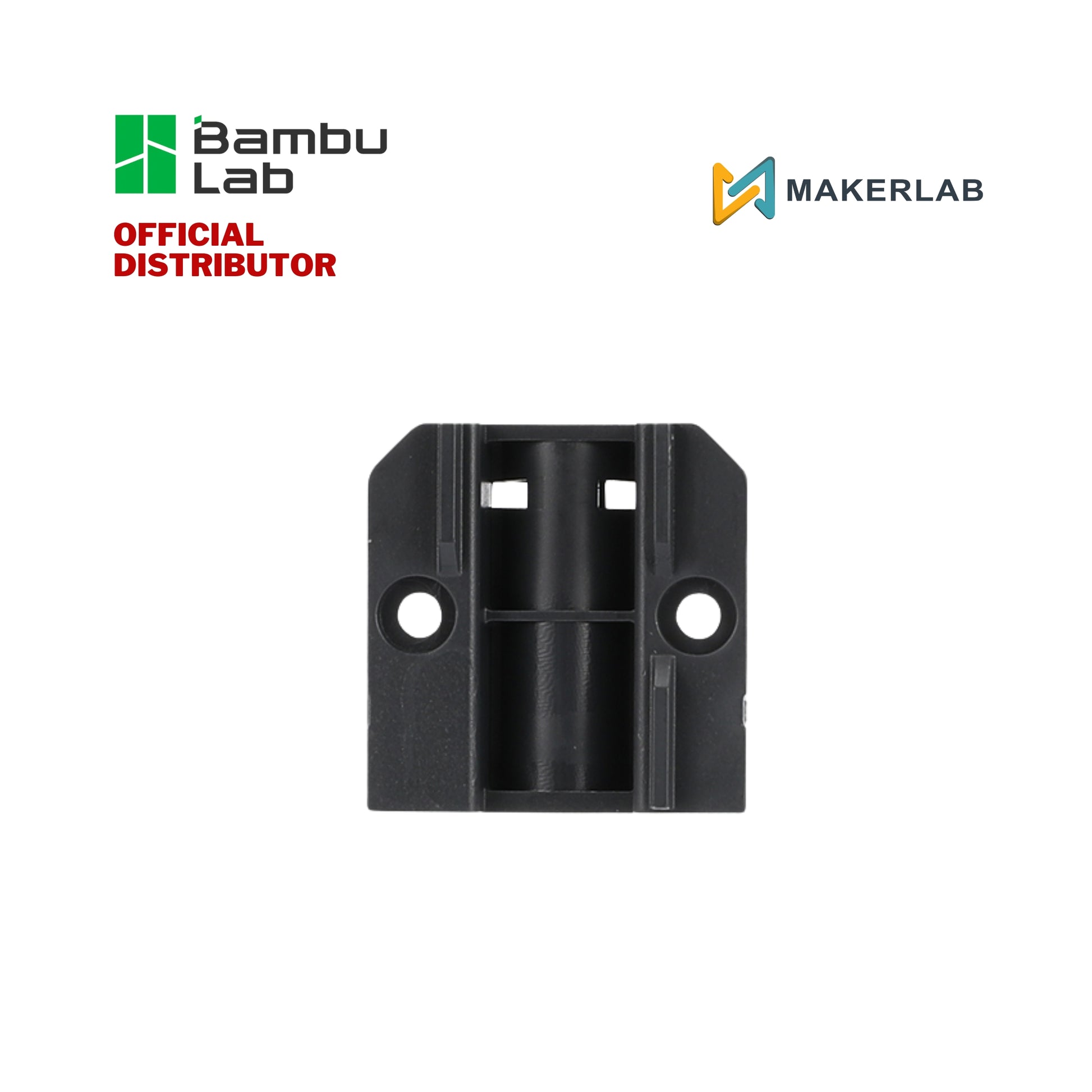

Belt tensioner bracket mounted at the rear of the machine, designed to deliver adjustable and reliable tensioning force for XY-direction drive belts through a mechanical structure.
Features
Automatic-Assist Mechanism: Internal constant-force springs ensure equal tension across both XY belts with a simple "loosen-and-tighten" procedure.
Low-Friction Idler Pulleys: Includes pre-pressed, high-speed bearings designed to handle the rapid direction changes of CoreXY motion without developing "flat spots."
Reinforced Die-Cast Housing: Constructed from a high-strength alloy to prevent bracket flex, which is a common cause of layer shifts in high-speed printers.
Dust-Shielded Bearings: The pulleys feature integrated shields to prevent filament dust and debris from entering the bearing races, extending the maintenance interval.
Precision Alignment: CNC-machined mounting points ensure the belts remain perfectly parallel to the gantry, reducing wear on the belt teeth.
Installation

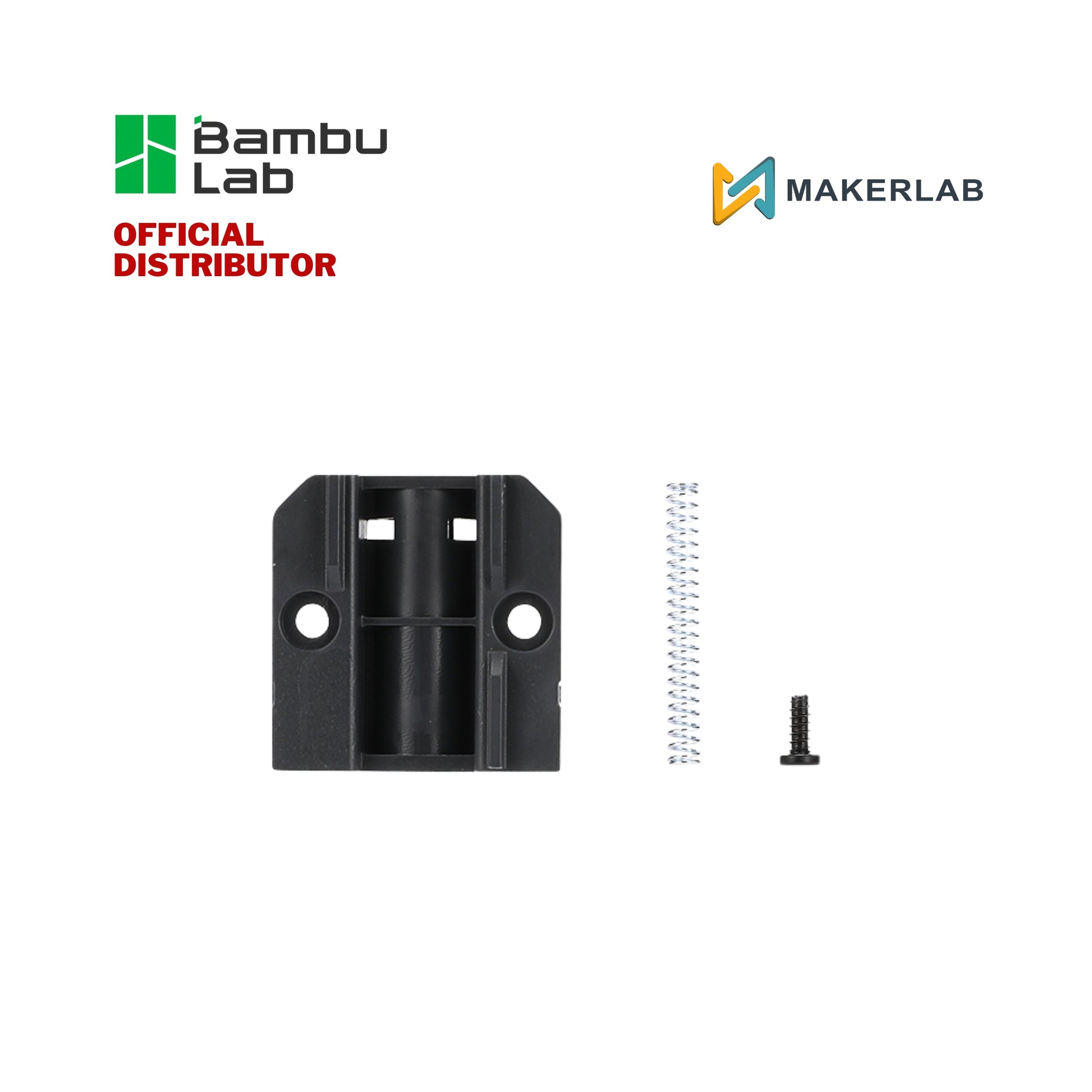

In the Box
- Belt Tensioner Bracket*1
- Spring*1
-BT3x8 Screw*2
Compatibility
P2 Series
Specifications
Materials: Plastic
Color: Black
Packaging Weight: 0.0094Kg
Packaging Size: 105*54*33mm
