Description

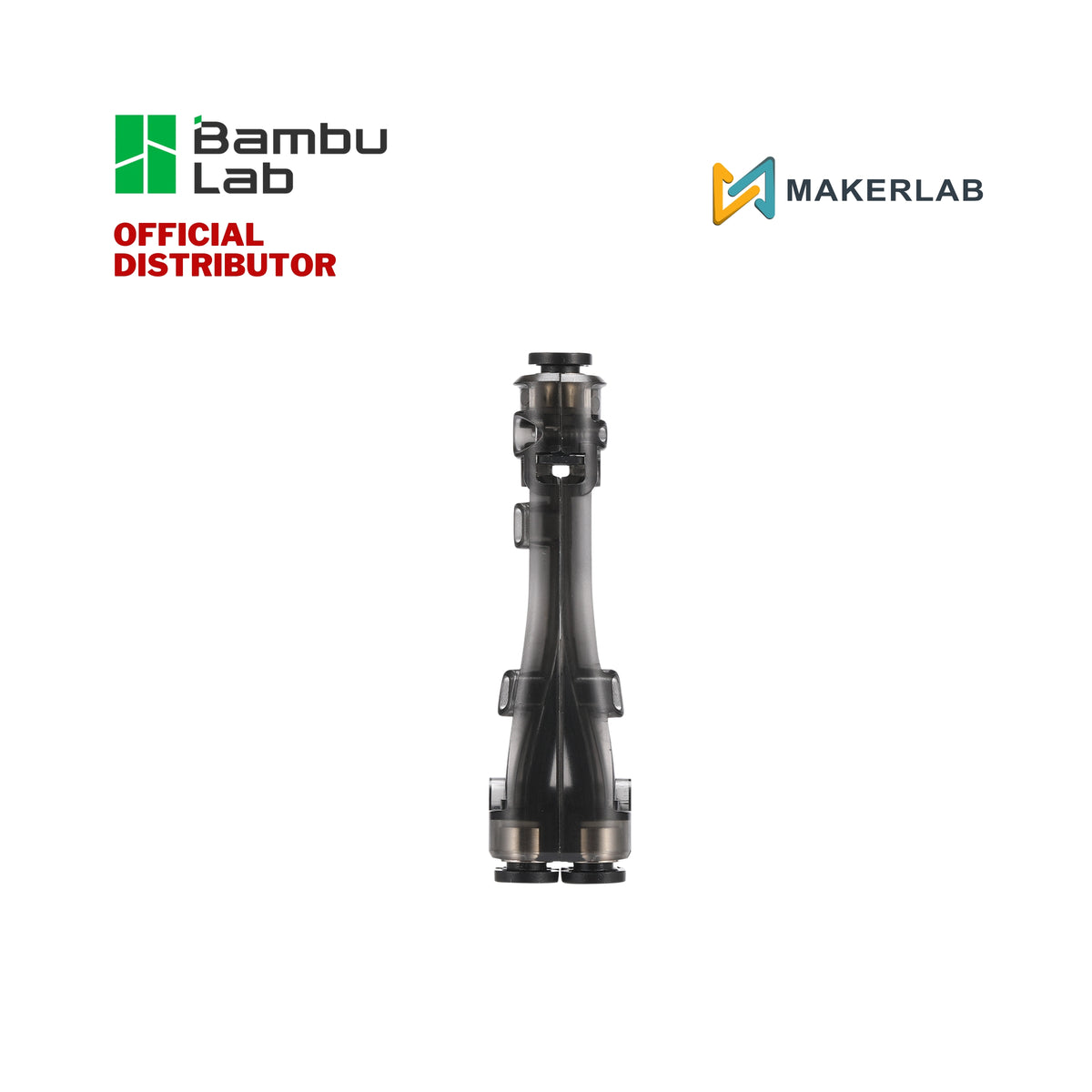

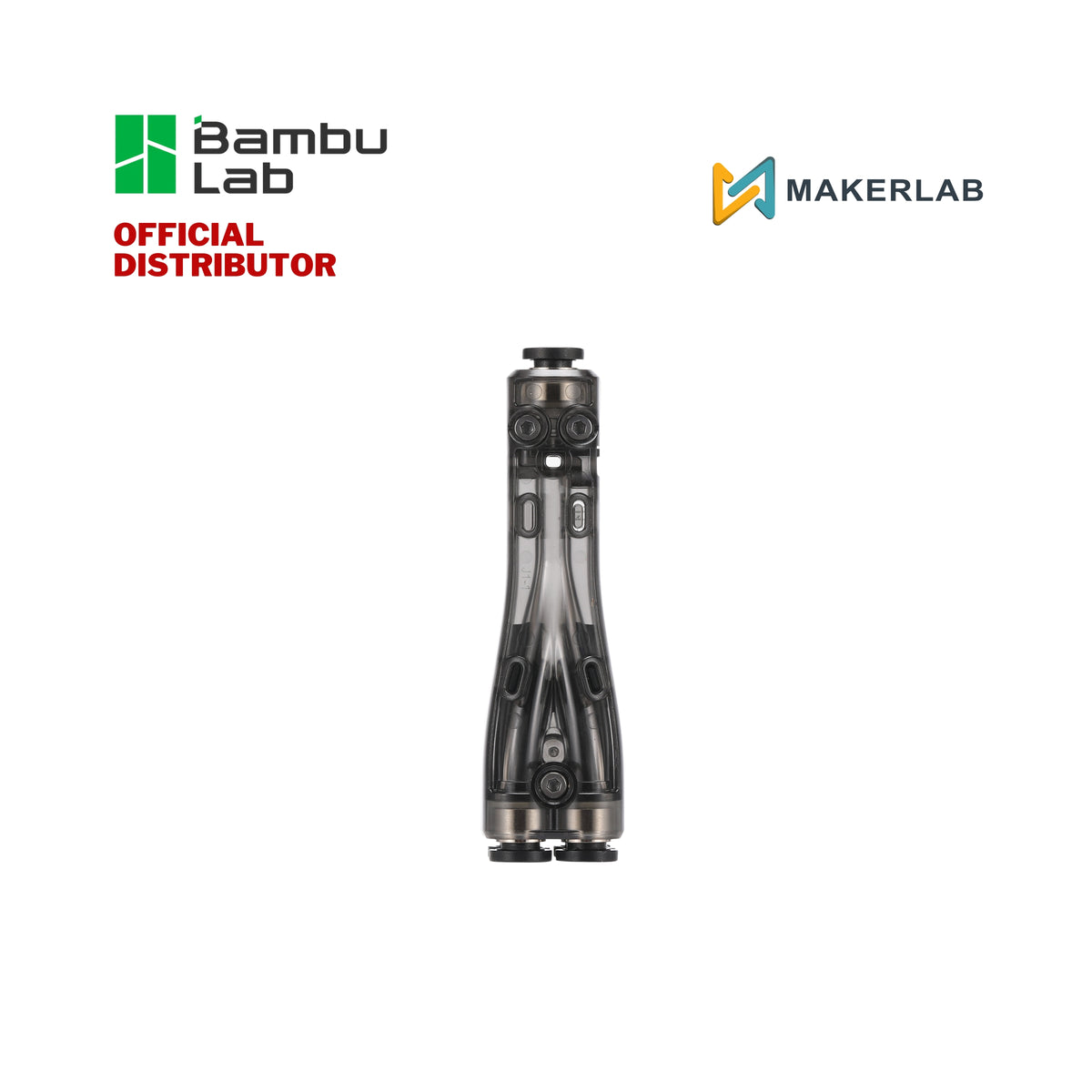

The Bambu 4-in-1 PTFE Adapter is an adapter used to connect the PTFE tube. Compared to the original PTFE tube connector, the 4-in-1 adapter can connect 4 feeder modules to the printer at the same time. (up to 7 different filaments: 1 AMS and 3 other filaments). It can help users to connect the printer to AMS along with other filaments which are not compatible with AMS such as TPU 95A, Bambu PET-CF and other brands' carbon-fiber/glass-fiber contained filaments.
Features
Multi-Module Integration: Connects the AMS and up to three external filaments (like TPU 95A or PET-CF) to the toolhead without needing to unplug tubes.

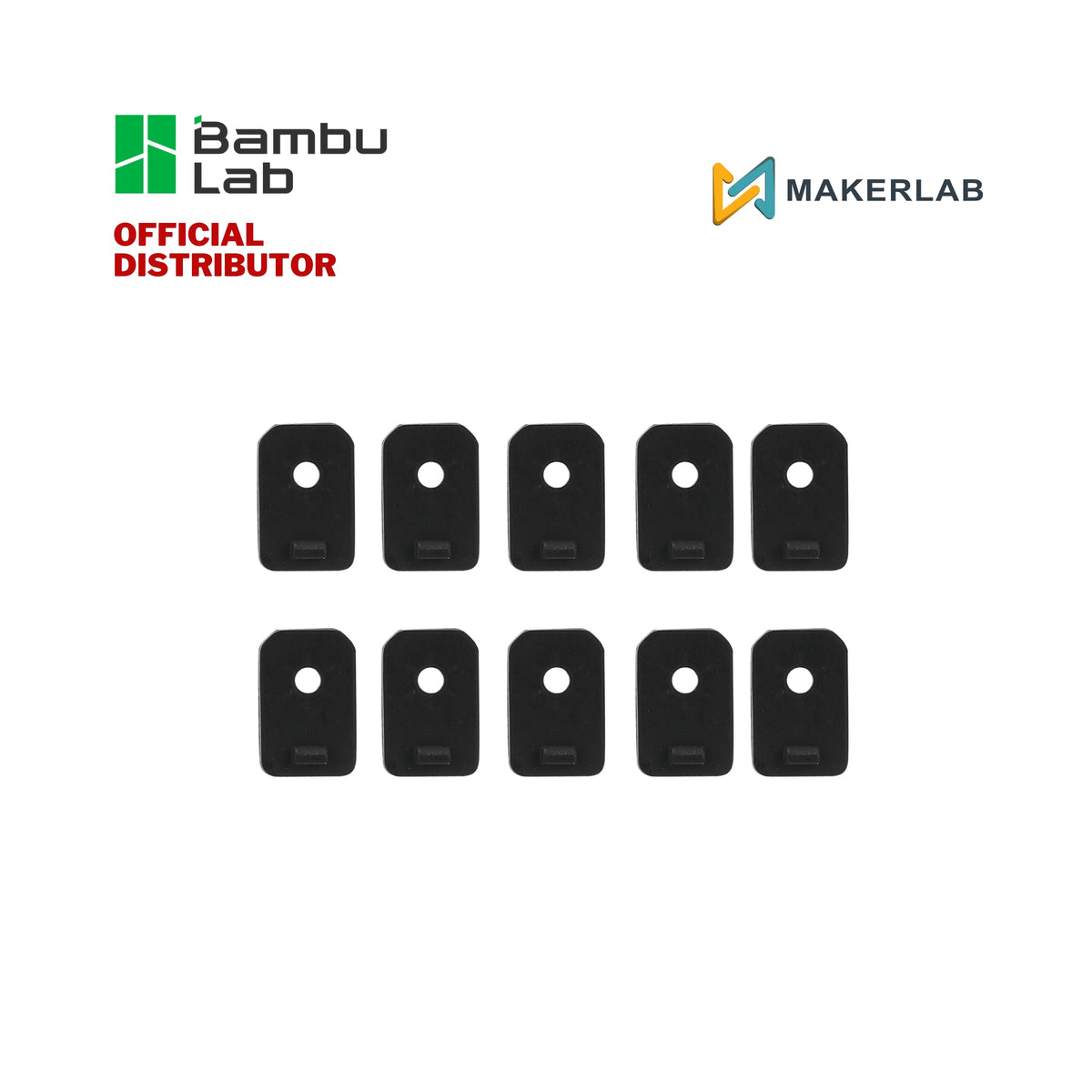

Debris Management: Includes specialized filament cleaning pads that trap and discharge debris through an expansion port before it reaches the extruder.
Low-Friction Path: Engineered with a smooth internal transition to prevent filament "tips" from catching during the high-speed retractions of the AMS.
Clear Directional Flow: Laser-etched "IN" and "OUT" indicators ensure correct installation, preventing the jams associated with reversed orientation.
Broad Compatibility: Designed to work across the entire Bambu Lab ecosystem, from the P1/X1 series to the high-temp H2 and P2 series.
Installation
Learn more about the replacement of Bambu 4-in-1 PTFE Adapter on
Bambu Lab Wiki.
Compatibility
All Series
Instructions for use
The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.
-
When using AMS:
-
Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
-
Connect the PTFE tube from the buffer output to one of its IN ends. - Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
-
When the AMS is not being used:
It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.
Specifications
Color: Black
Materials: Plastic, Metal
