Description

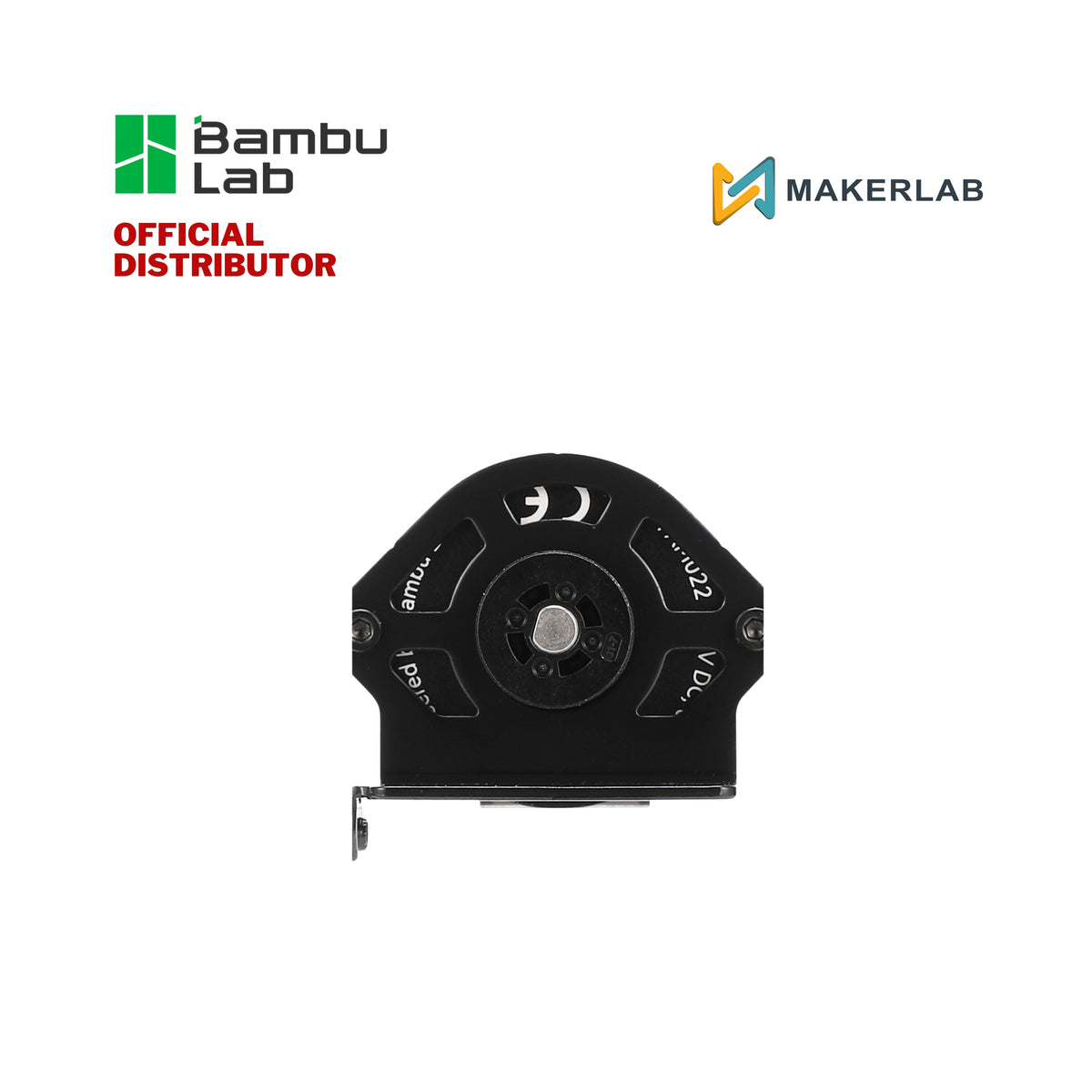

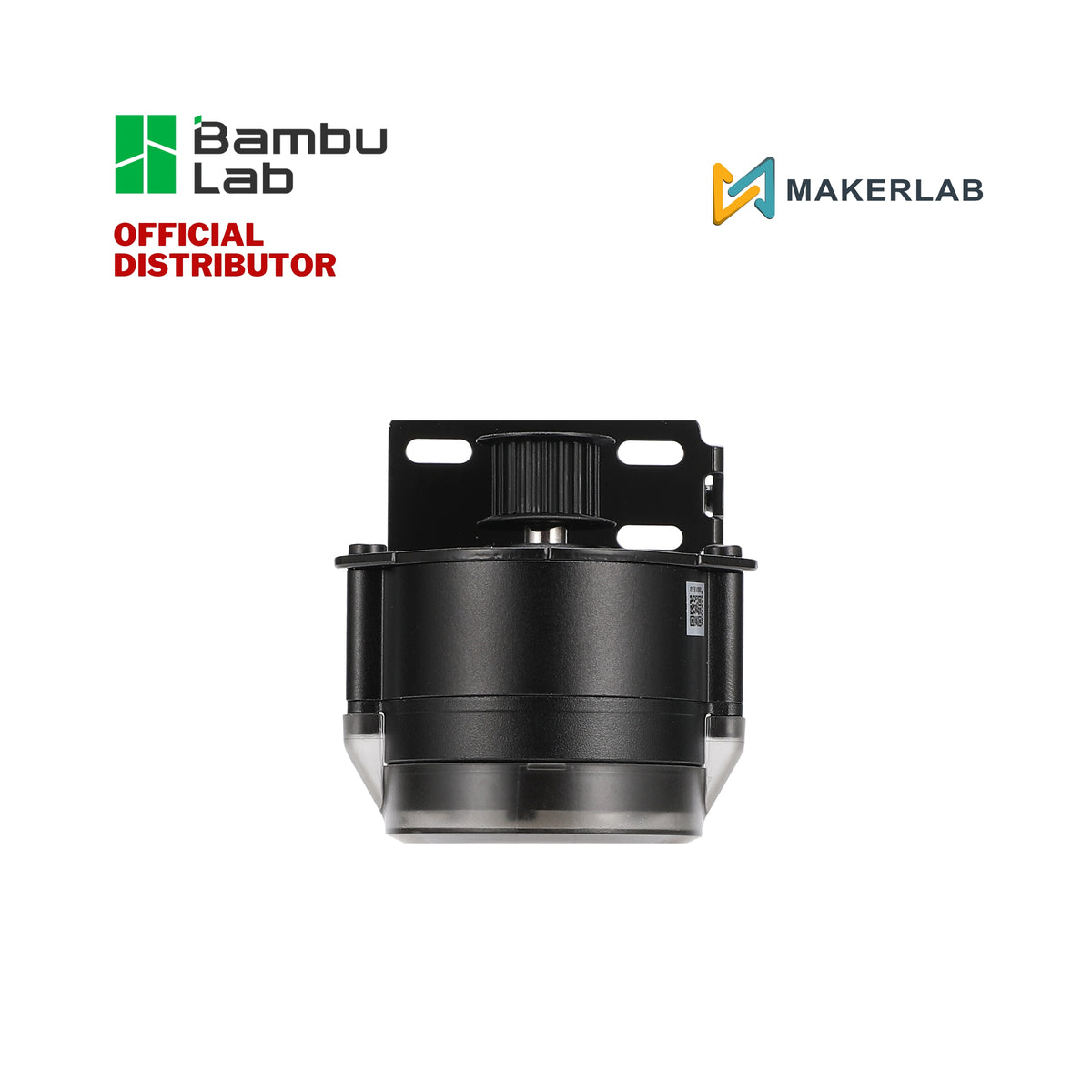

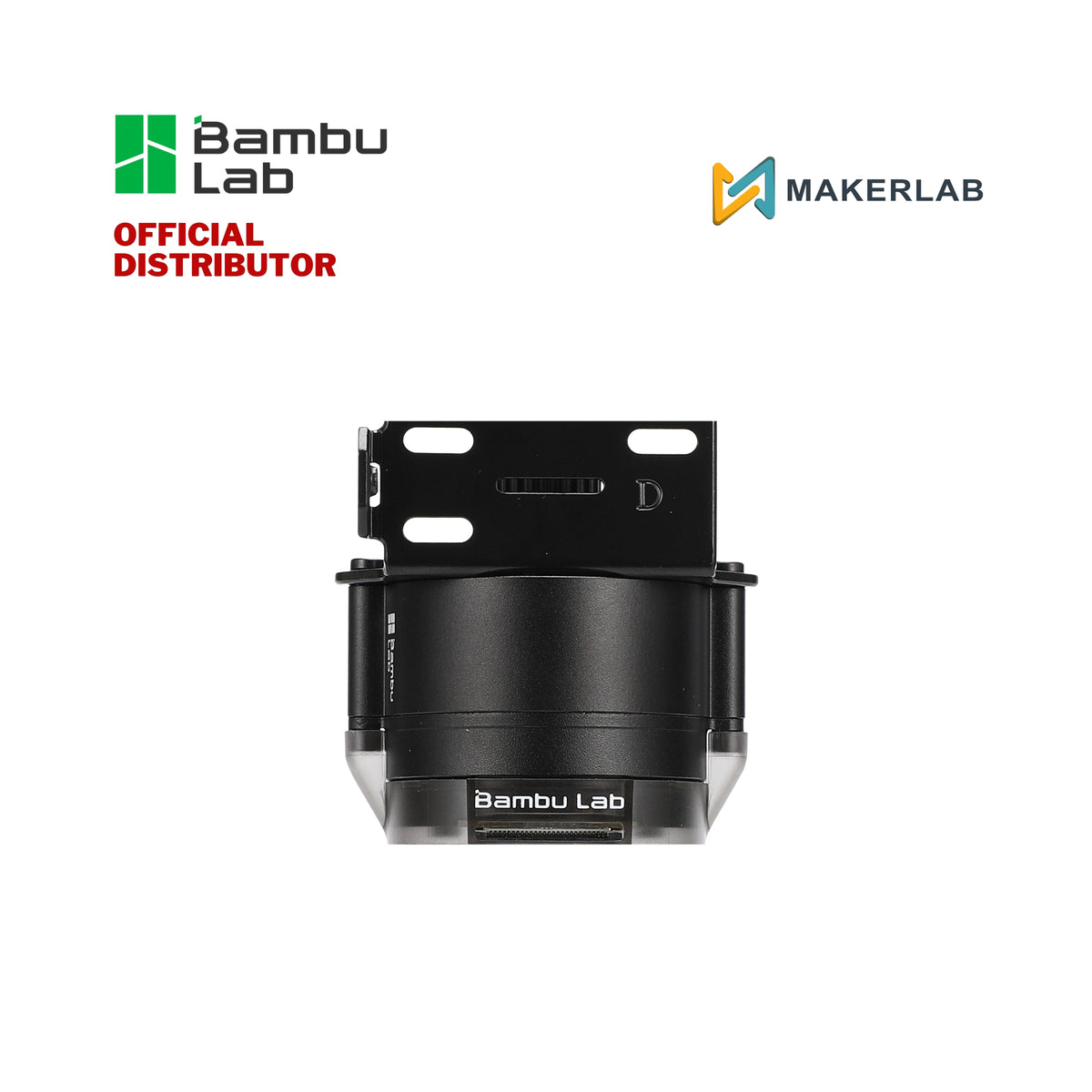

The 3513 Induction Hotend Rack Motor is a servo motor responsible for driving the lifting movement of the rack. It provides stable and reliable torque output with intelligent adjustment capabilities, automatically modulating torque or triggering an HMS alarm in case of obstruction or abnormal motion, ensuring the safety and precision of the hotend lifting operation.
Features
High-Torque Performance: Specifically to provide the lifting power required to move a fully loaded 6-slot hotend rack.
Heat-Resistant Construction: Optimized for the H2C’s enclosed environment, maintaining performance even when the internal chamber reaches 65°C.
Precision Stepping: Features a fine step angle that allows for the sub-millimeter vertical adjustments necessary for the toolhead to successfully dock with an induction hotend.
Integrated Connector: Comes with a pre-installed, vibration-resistant wiring harness for direct connection to the H2C distribution board.
Compact 3513 Form Factor: Designed for a low-profile footprint to maximize internal build volume while providing the power of a larger NEMA-17 motor.
Installation
Learn more about the replacement of 3513 Induction Hotend Rack Motor on
Bambu Lab Wiki.

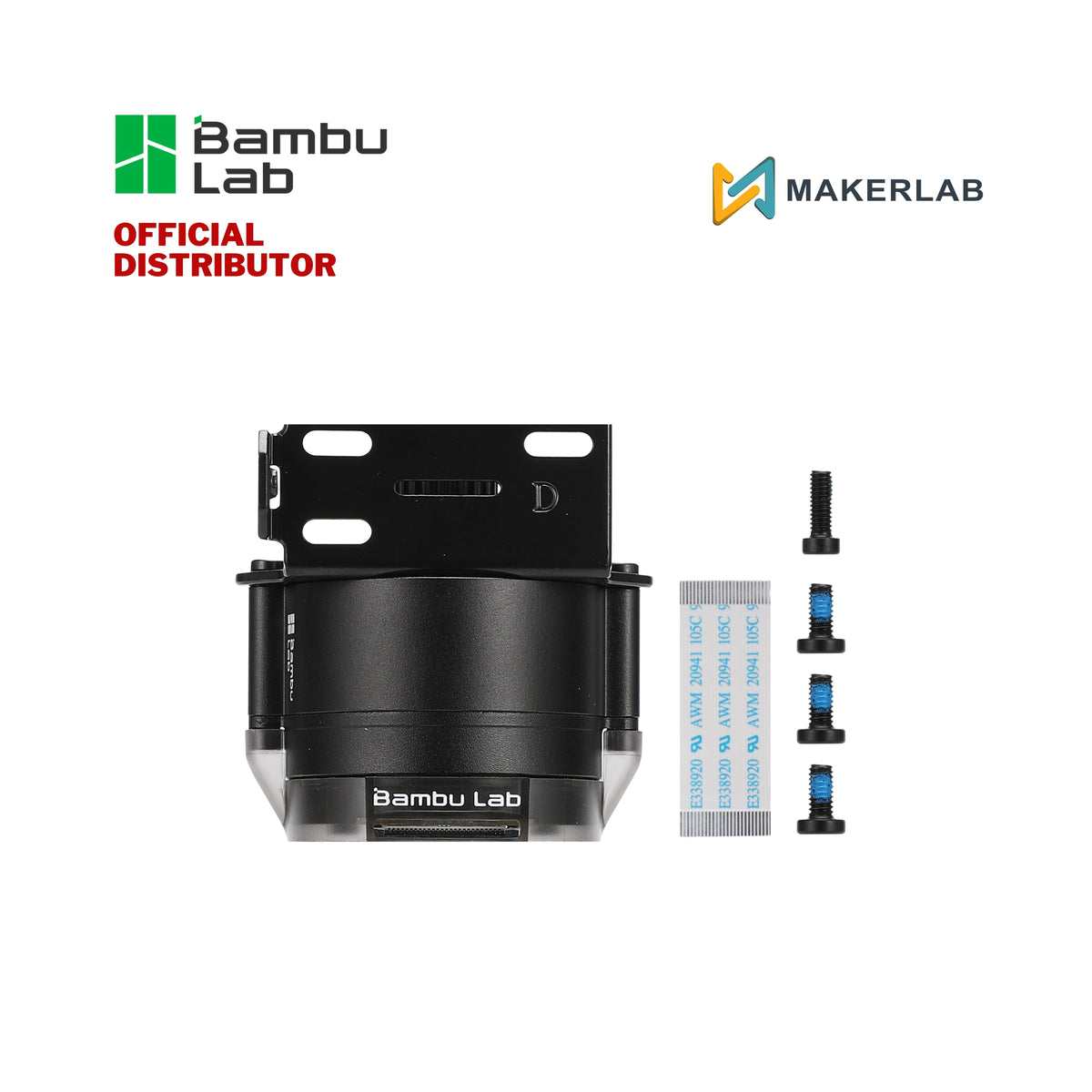

In the Box
Compatibility
H2C and H2C Laser
Specifications
Material: Metal
Color: Black, Gray
