Description

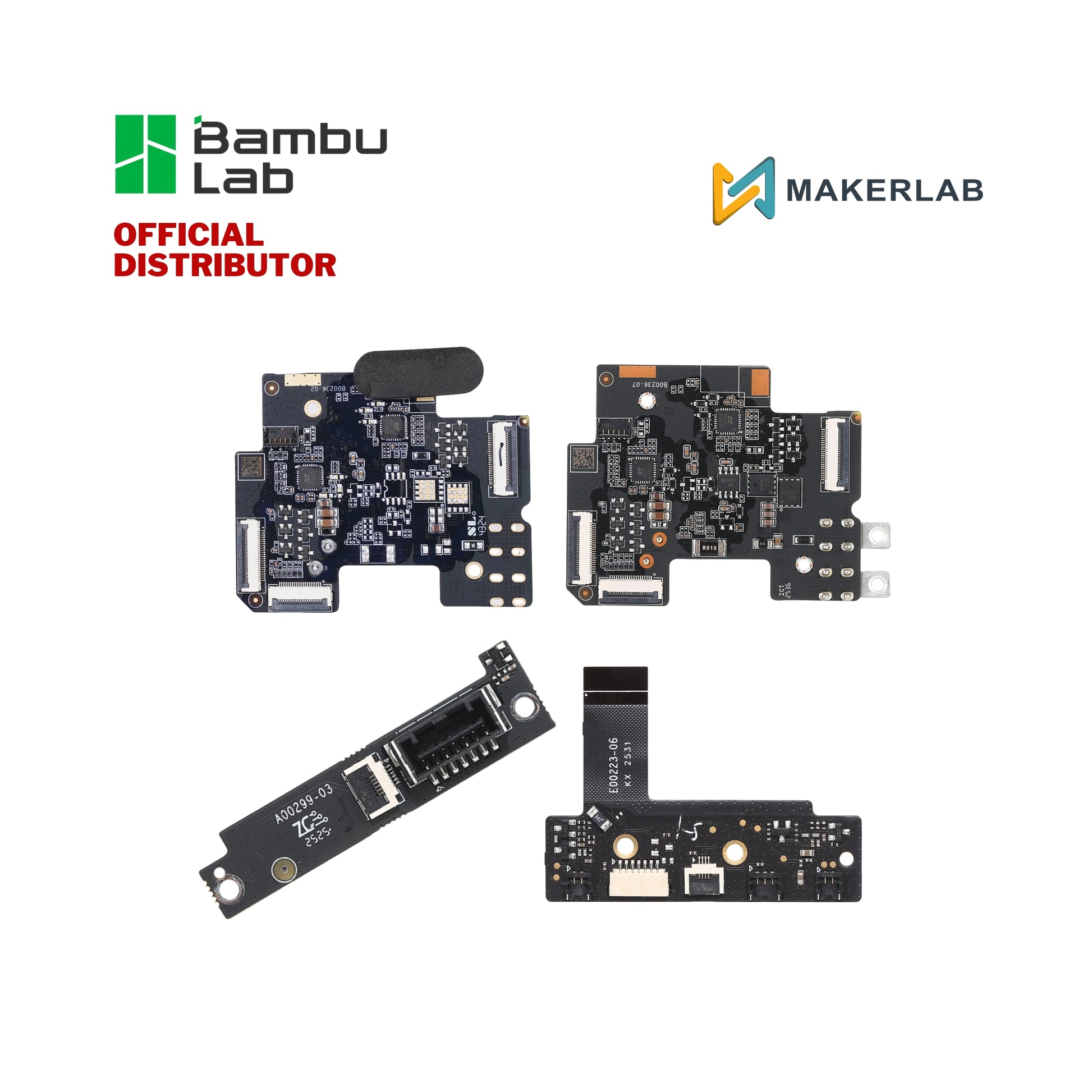

The Extruder Connection Board is installed on the back of the toolhead and primarily serves to connect and manage the electrical signals and power supply for the extruder. It acts as an interface between the extruder components and the main control system, ensuring stable operation of sensors, heating elements, and motors.
Features
Localized Cable Management: Neatly groups individual component plugs so you can swap out parts like the filament cutter sensor or extruder motor independently, without having to unroute cables across the entire printhead toolhead assembly.
Heavy-Duty Vibrational Shock Isolation: Built on rigid, multi-layered FR4 substrates with reinforced solder pads designed to withstand high CoreXY print acceleration shocks without developing hairline trace fractures.
Zero-Solder Connection Array: Equipped with factory-keyed locking JST/Molex style sockets, guaranteeing quick, error-free plug-and-play installation during routine maintenance.
Specifications
H2D and H2C

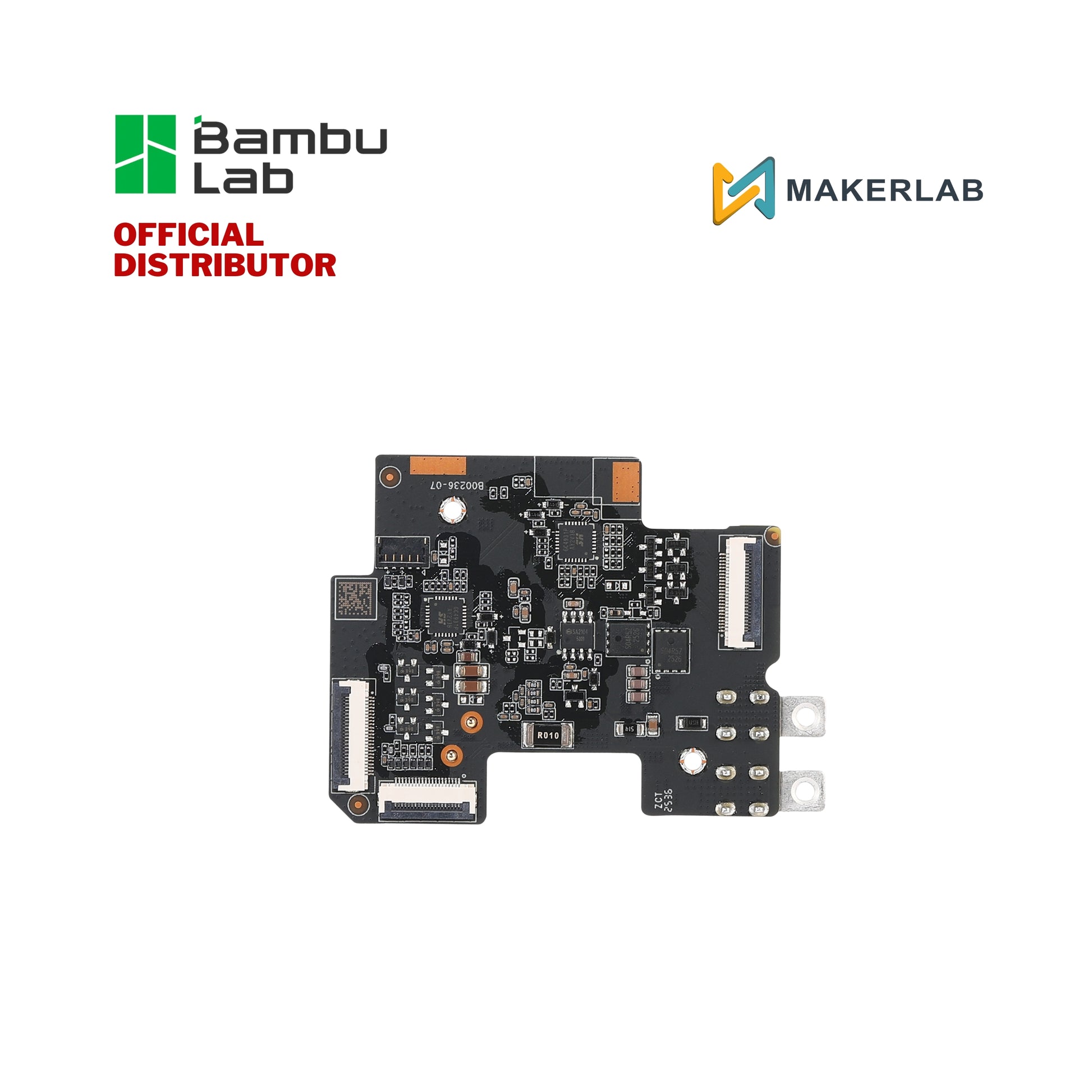

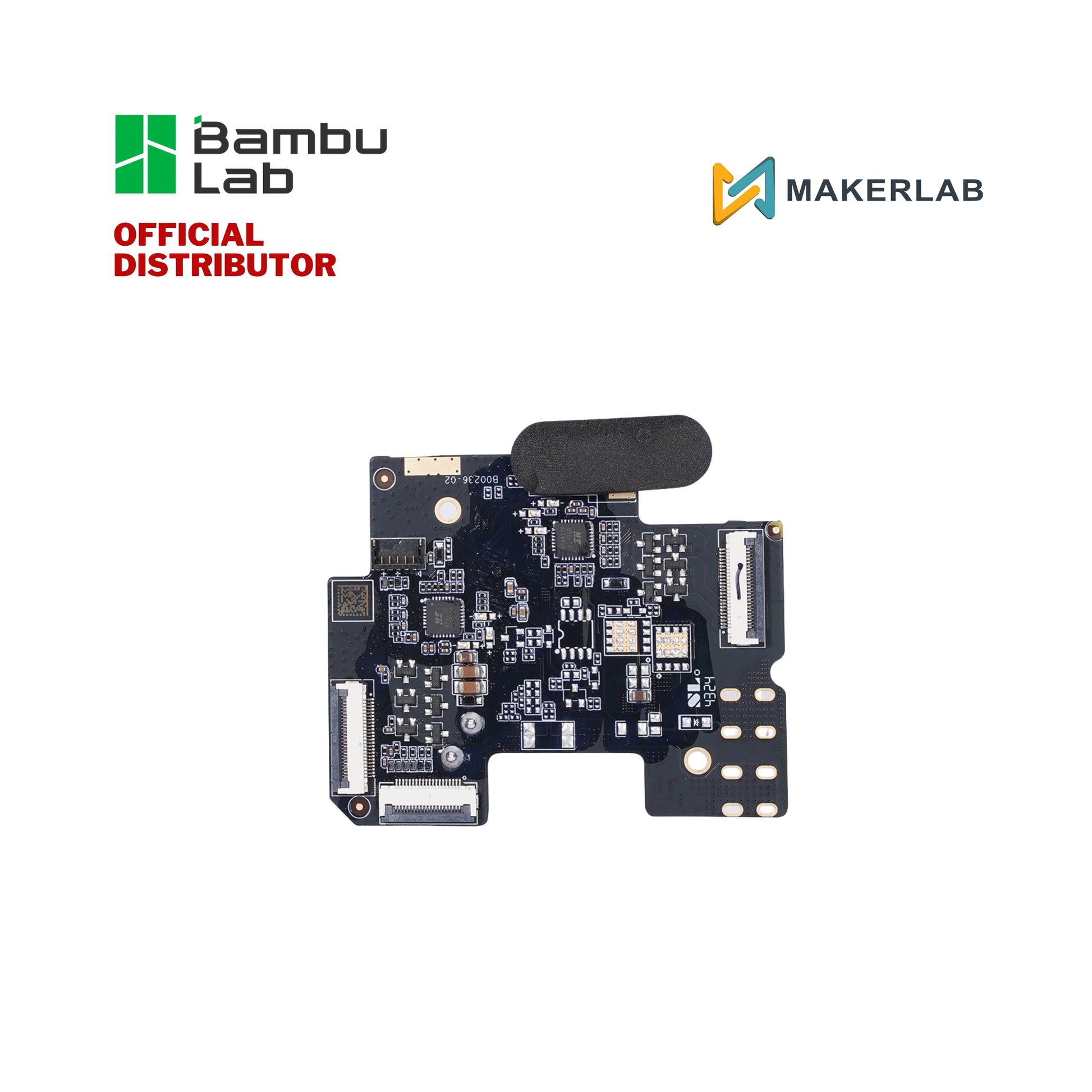

Materials: Circuit board
Color: Black
Packaging Weight: 0.038 kg
Packaging Size: 105*72*35 mm
P2S

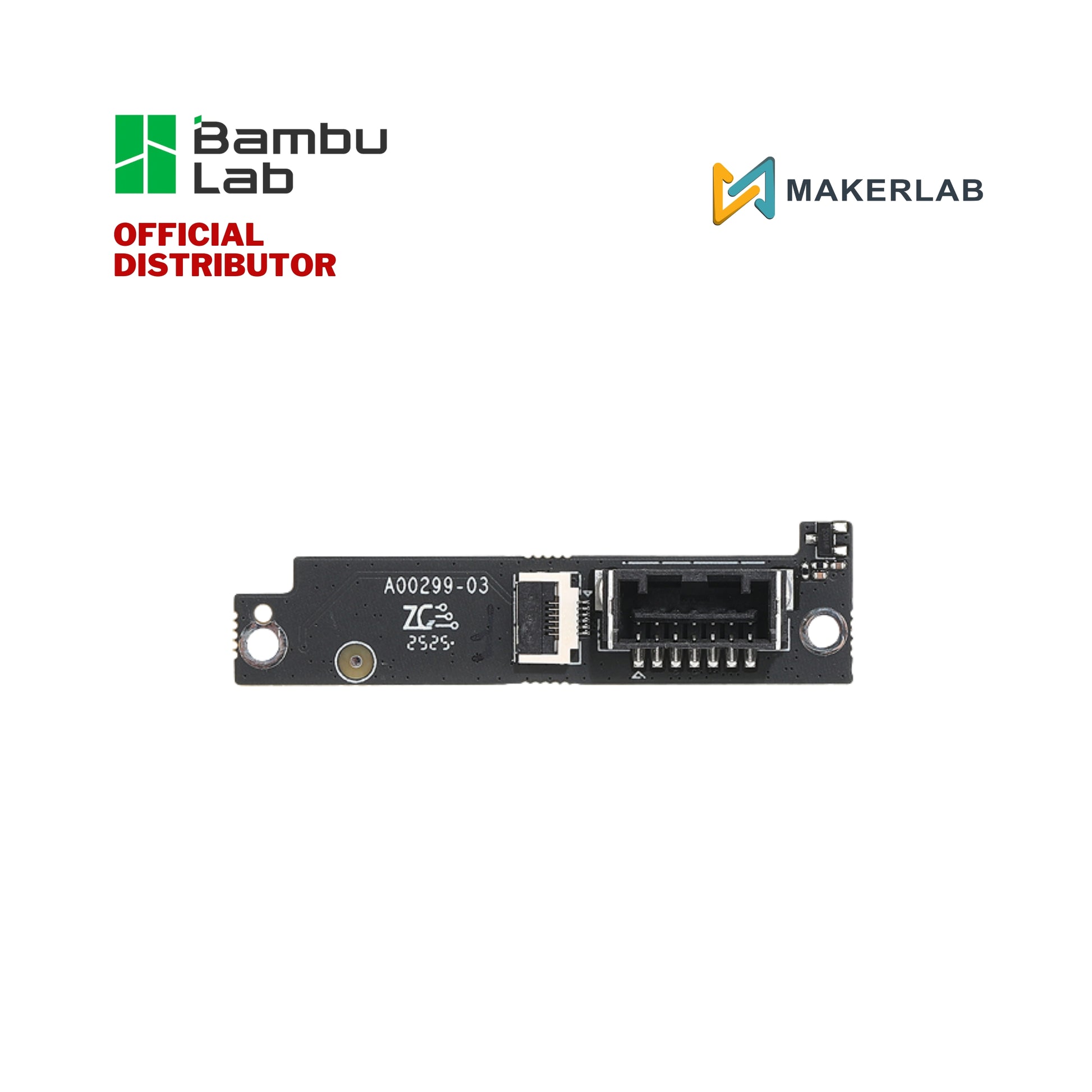

Materials: PCBA
Color: Black
Packaging Weight: 0.0037Kg
Packaging Size: 60*60*30mm
X2D

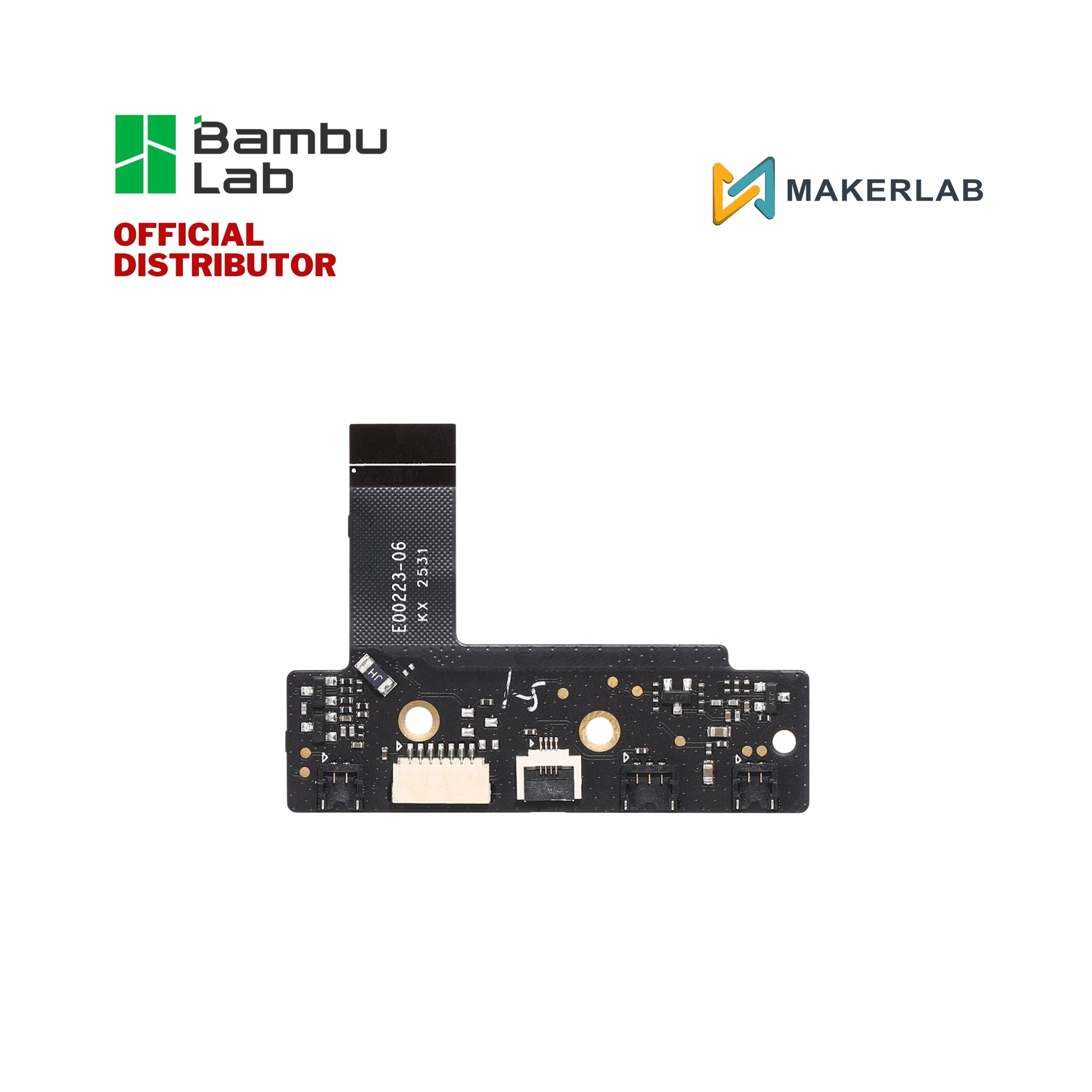

Materials: Copper
Color: Black
Packaging Weight: 0.0023KG
Packaging Size: 60*60*30mm
In The Box
For H2D
For H2C
For P2S
For X2D
