Description

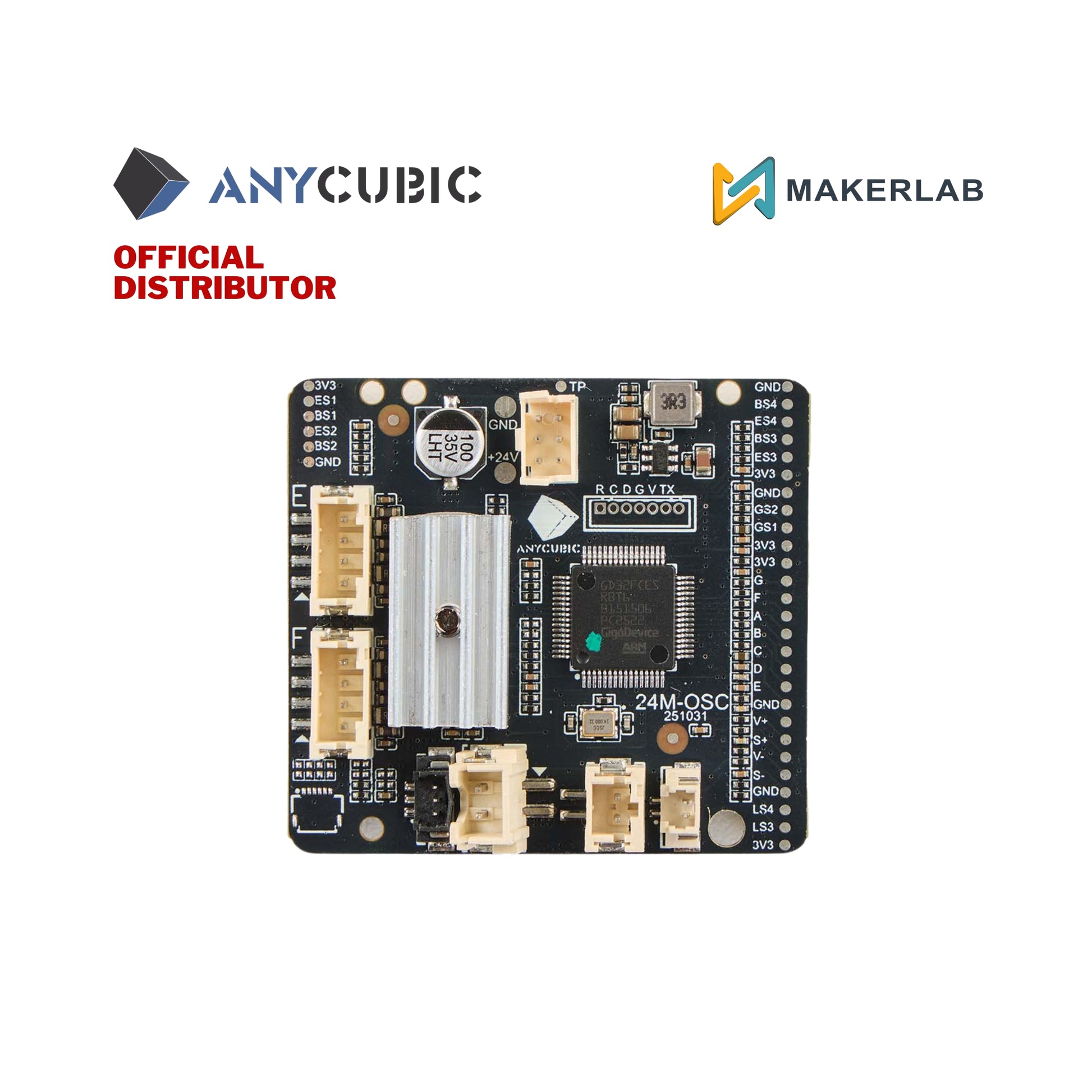

The Toolhead Board acts as the central electronic nervous system for the Kobra X’s printhead. Positioned directly on the moving carriage assembly, this micro-PCB aggregates all individual toolhead signals—including the heater cartridge, thermistor, dual cooling fans, extruder stepper motor, filament runout sensor, and LeviQ 3.0 auto-leveling probe.
Instead of routing dozens of loose, heavy wires back to the mainboard, the toolhead board condenses these signals into a single, high-efficiency multi-pin ribbon cable network. Over extensive operational hours, rapid carriage accelerations or static discharge can damage the onboard circuitry, leading to intermittent connection drops, false thermal runaway alerts, or sensor failures. Swapping in this drop-in OEM board restores stable data communication and ensures clean signal pathways.
Features
Genuine Anycubic OEM Component: Pre-loaded with native system logic routing to ensure perfect communication with the main motherboard and stock Kobra OS firmware.
Streamlined Cable Architecture: Condenses all extruder components into centralized terminal blocks, making toolhead maintenance clean and clutter-free.
Gold-Plated Interface Contacts: Equipped with high-conductivity, low-resistance pin slots that prevent signal corrosion and handle high current loads without overheating.
Rigid FR4 Layer PCB Construction: Built on a high-durability fiberglass substrate designed to withstand intense, rapid G-force vibrations from high-speed CoreXY or Cartesian movements.
Pre-Drawn Mounting Footprint: Features factory-aligned screw cutouts that align perfectly with the Kobra X carriage chassis for tool-less positioning alignment.
Specifications
Model Number: S010402
Compatible 3D Printer: Anycubic Kobra X
Substrate Material: High-Density FR4 Fiberglass Circuit Board
Onboard Connectivity Interfaces: JST-PH / Micro-Fit Terminal Sockets for Hotend, Fans, and Probe
Main Output Bus: Multi-Pin High-Density Ribbon Cable Connector
Logic Supply Voltage: 24V DC
