Description

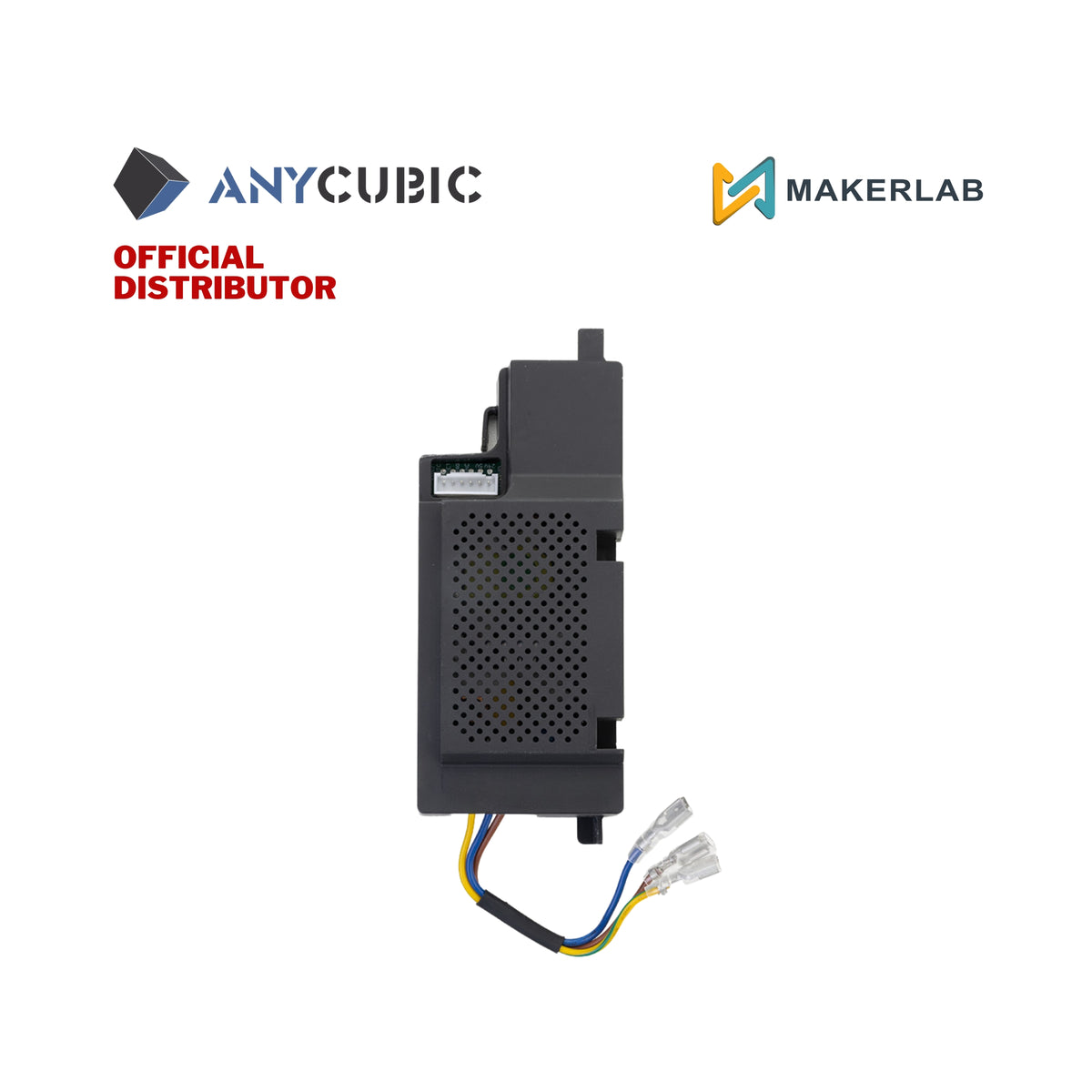

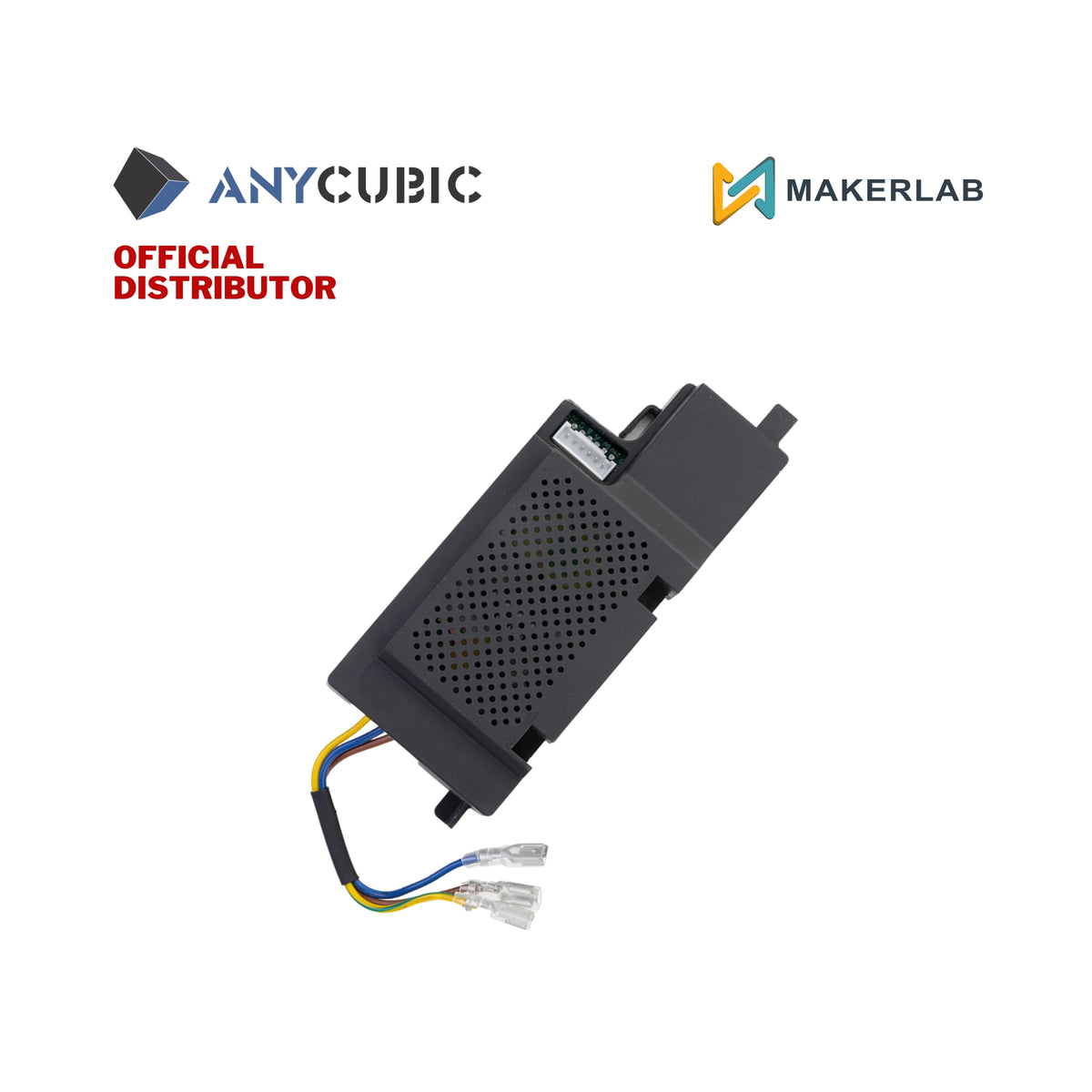

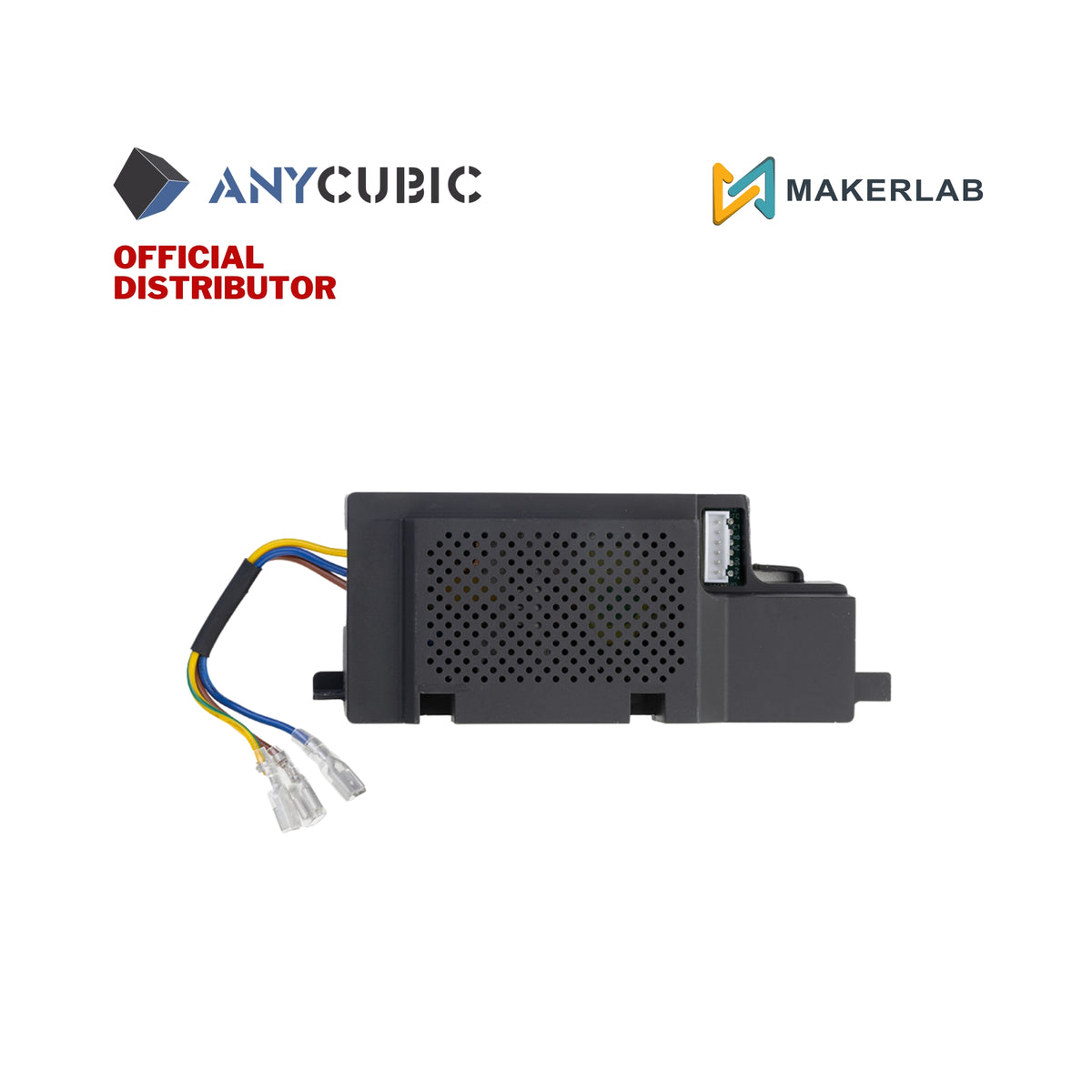

The Anycubic Power Module with Structural Components is an official OEM internal electrical power conversion and structural chassis kit engineered specifically for the Anycubic Color Engine Pro 2 (ACE 2 Pro) multi-color filament manager.
This assembly combines a high-efficiency AC-to-DC internal power supply unit with factory-fitted structural mounting brackets and internal distribution wiring harnesses. Designed to handle the simultaneous power requirements of the ACE 2 Pro system, it supplies clean, low-ripple voltage to drive four active filament spool motors, internal PT100/NTC thermistors, and high-wattage PTC drying heating elements. Replacing this complete module restores full heating, filament feeding, and signal synchronization across all 4 material slots.
Features
Complete OEM Power Sub-Assembly: Includes the internal AC-to-DC power board, aluminum heat-sink bracket, structural mounting plate, and factory terminal wiring.
Dual Power Delivery System: Engineered to concurrently power high-draw PTC active drying chamber heaters and delicate multi-channel stepper motor control logic.
Direct Drop-In Structural Fit: Factory-drilled mounting holes and pre-terminated wiring harnesses connect directly into the ACE 2 Pro chassis without modification.
Integrated Electrical Safeguards: Built-in over-voltage (OVP), short-circuit (SCP), and thermal overload protection protect internal motherboard logic during multi-hour drying and feeding cycles.
Stable Low-Ripple Output: Delivers steady DC voltage to eliminate stepper motor stutter and communication signal dropouts with the primary 3D printer.
Specifications
Part Number: S010376
Component Type: Internal Power Module & Structural Chassis Assembly
Compatibility: Anycubic Color Engine Pro 2 (ACE 2 Pro)
Input Voltage Range: 100V - 240V (50/60Hz)
Output Capability: Multi-Rail 24V DC High-Current System
Housing / Chassis Material: Anodized Aluminum Bracket / Perforated Metal Frame
Termination Types: Latching JST & Screw-Terminal Harnesses
