Description

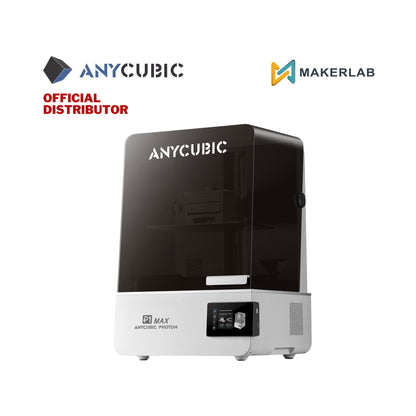

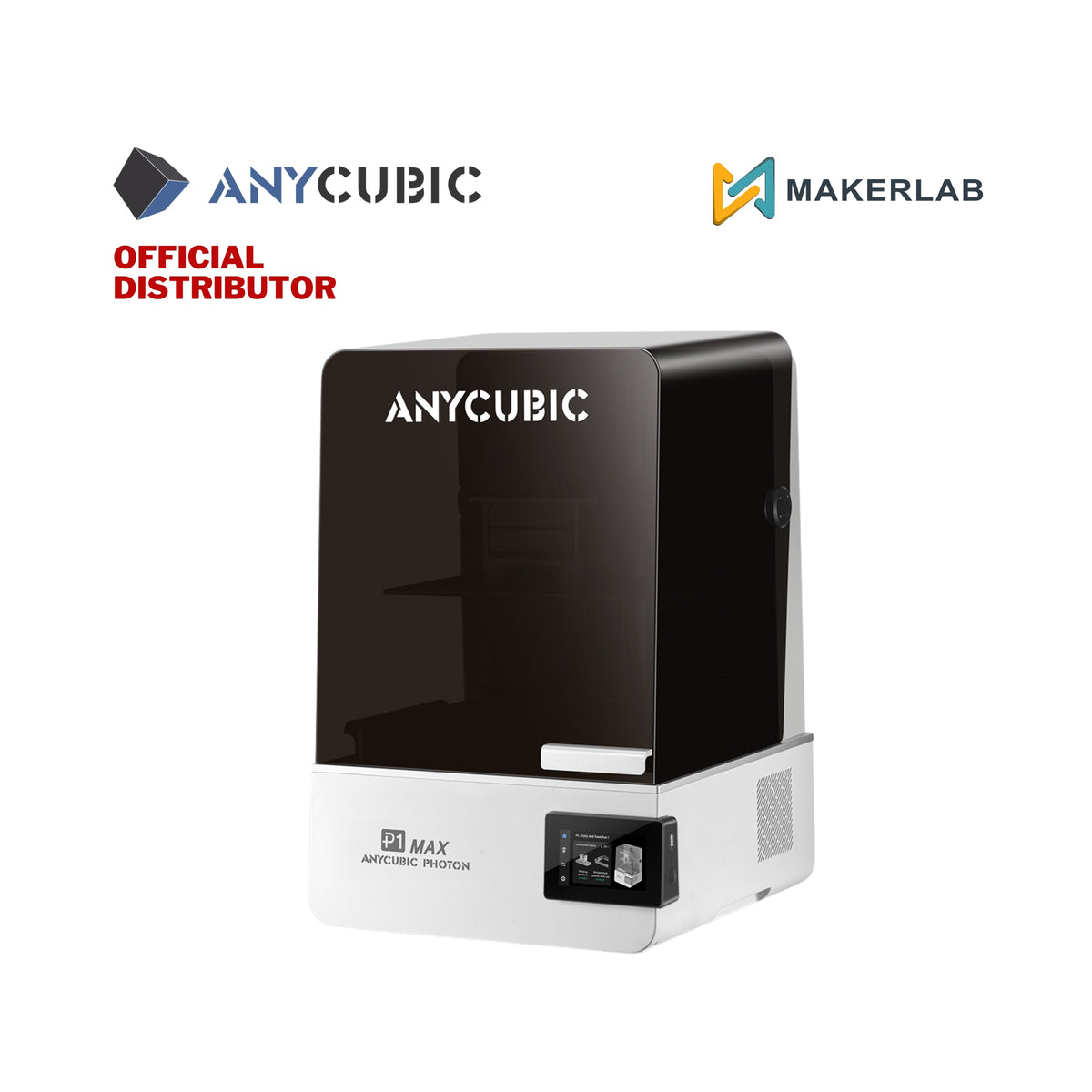

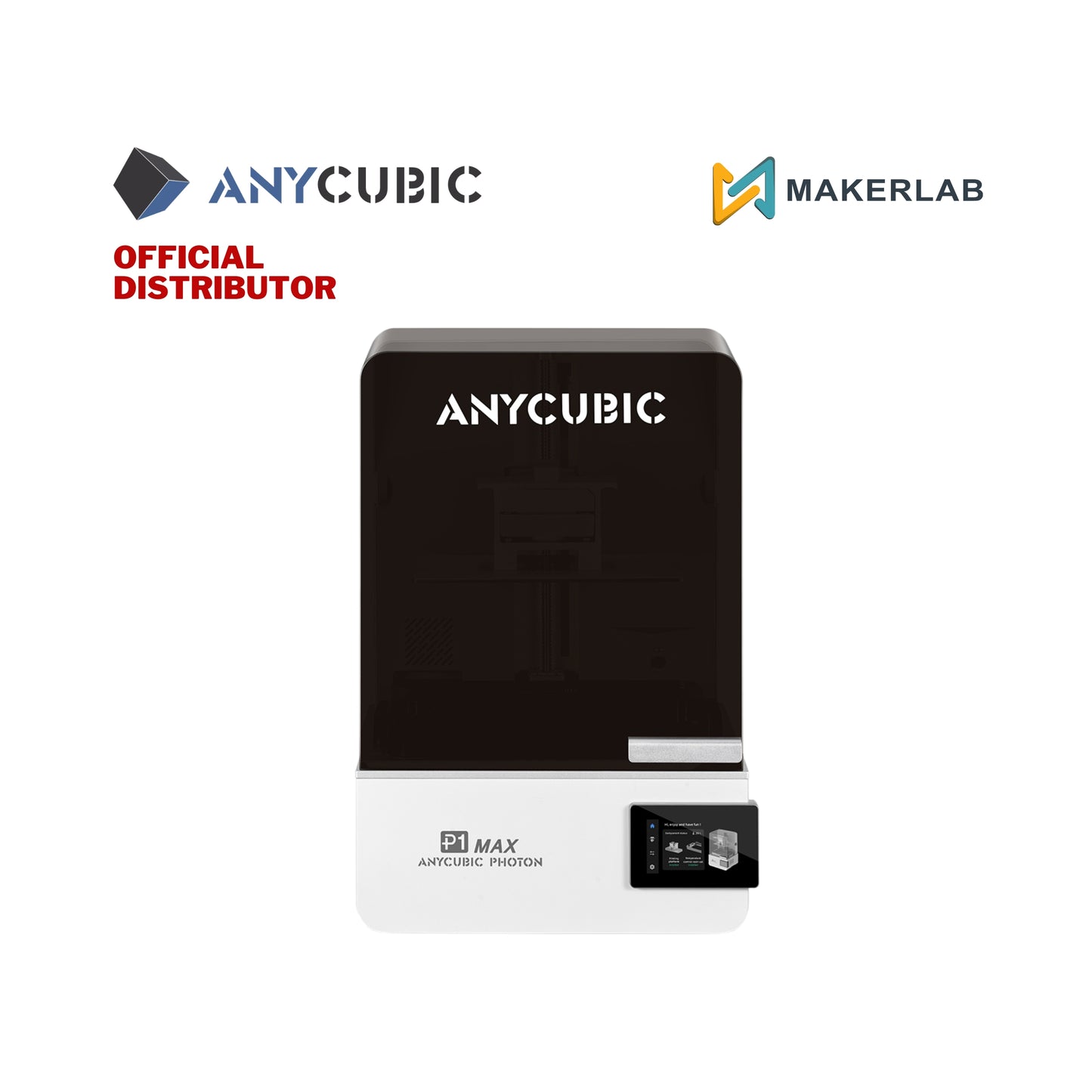

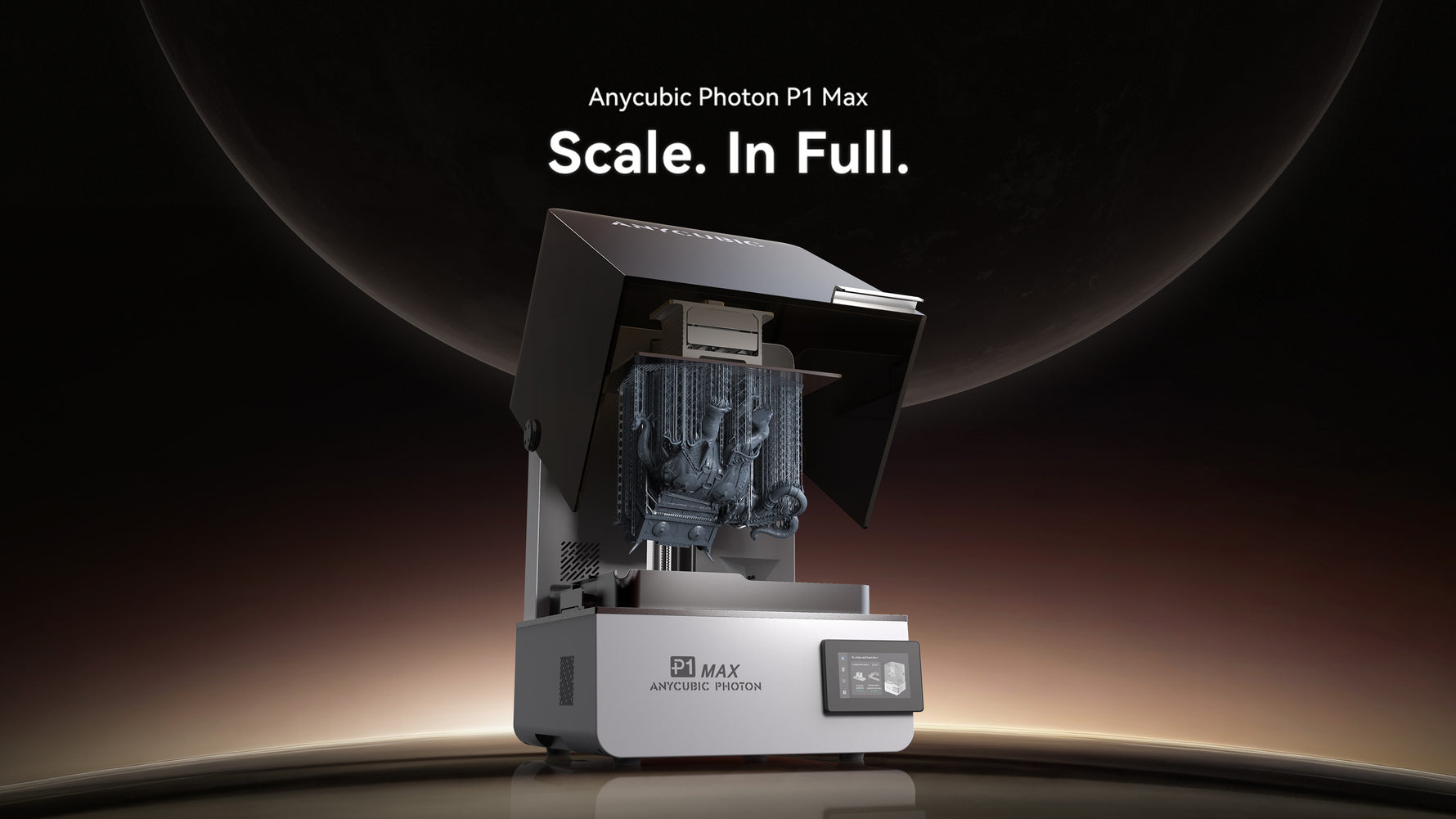

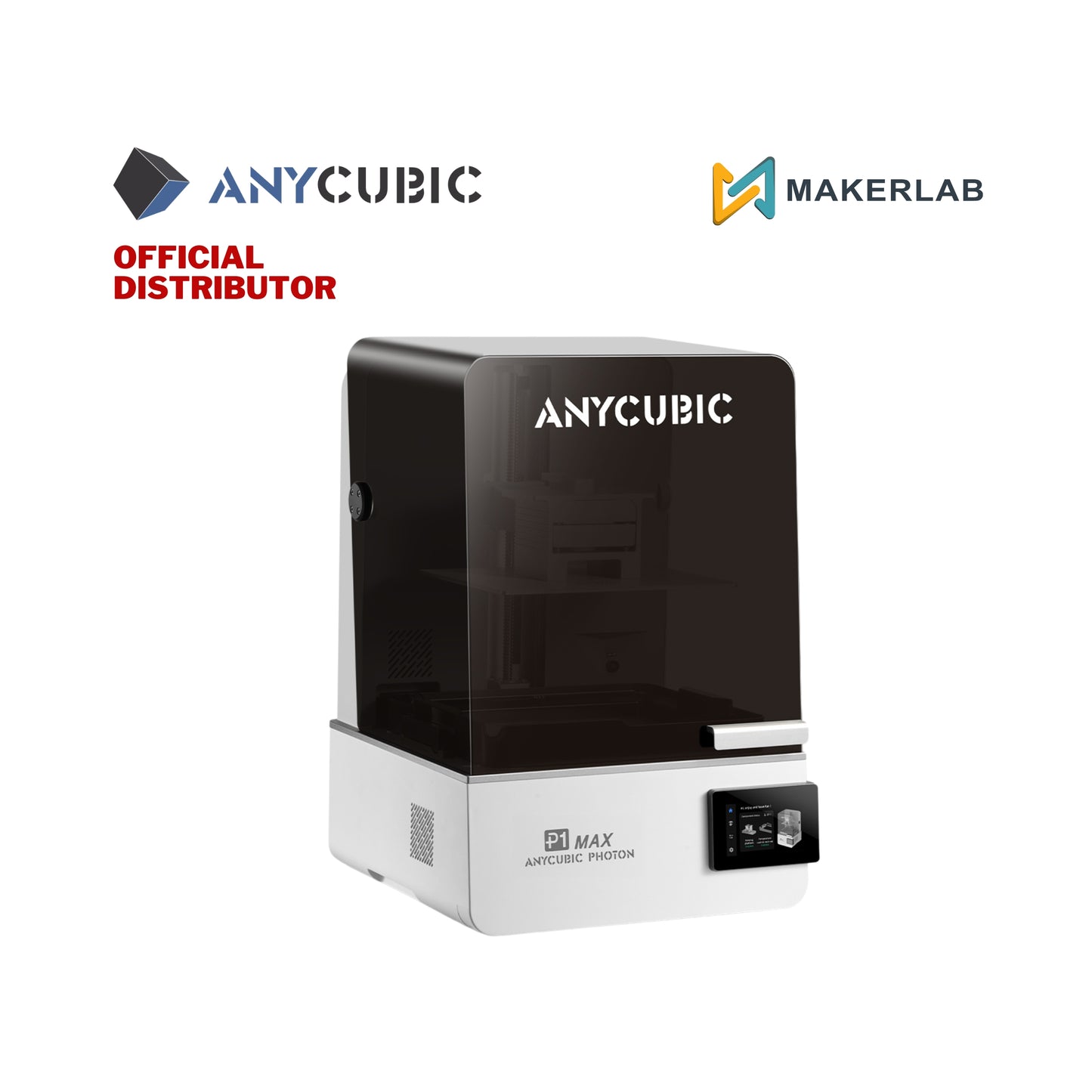

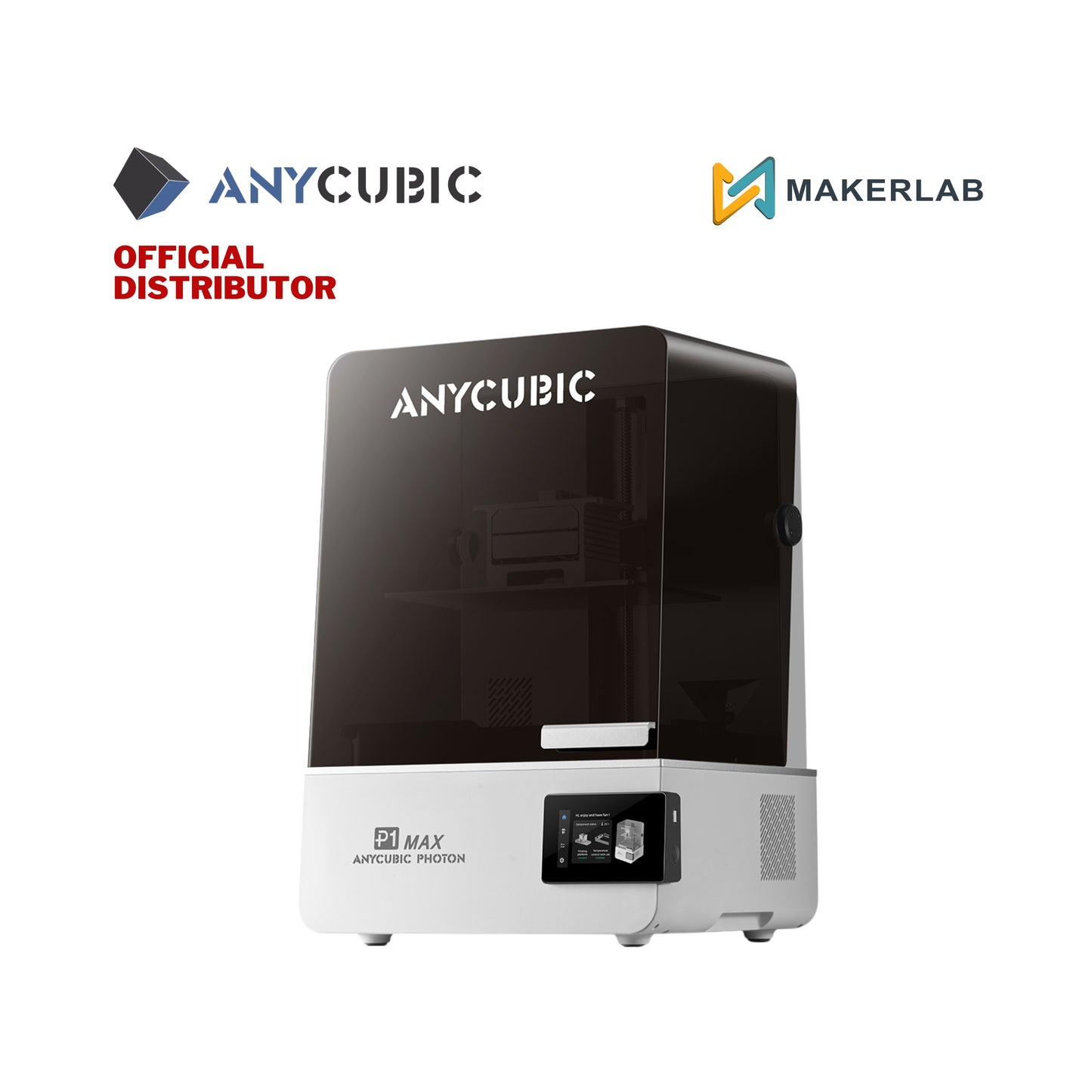

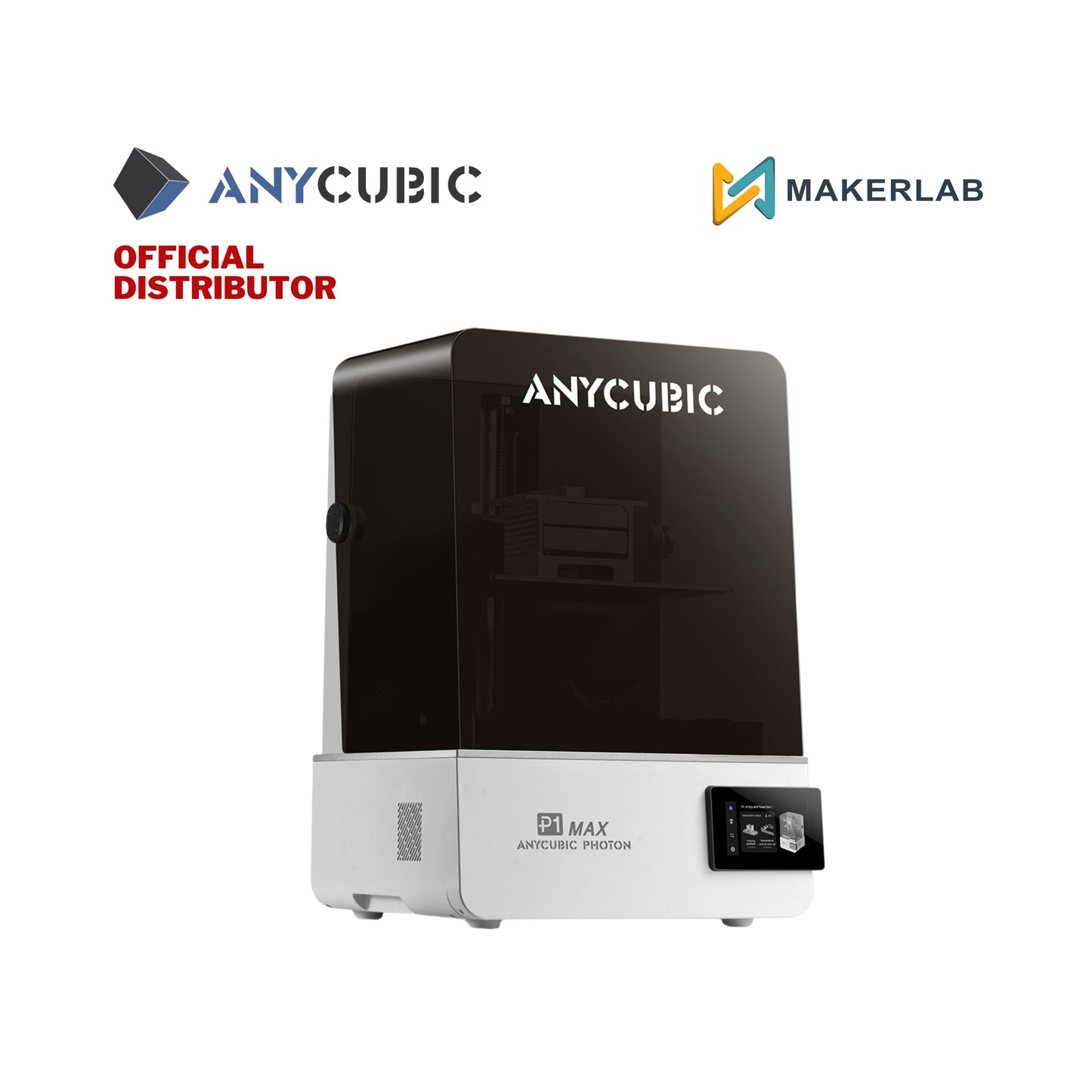

The Anycubic Photon P1 Max is a large-format resin 3D printer engineered for industrial-grade prototyping, production batching, and detailed large-scale models.
Built around a high-resolution 12K or 14K monochrome LCD screen paired with Anycubic’s upgraded LighTurbine matrix light source, the P1 Max delivers uniform UV exposure across its entire build plate to preserve fine details. Equipped with a high-rigidity dual linear Z-axis, an integrated heater, and automated resin feeding/refilling compatibility, the P1 Max is designed for consistent production and batch reliability in demanding workshop and studio environments.
Why Choose Photon P1 Max?
-
Wave Release Technology
-
Full-Scale 18.3L Print Volume
-
92% Light Uniformity
-
Precision-Ground Steel Build Plate
-
Engineered for 8000cps Resin
-
Intelligent Printing Assistant 3.0
Features
Bigger Volume (285.5x214x300mm)
The Anycubic Photon P1 Max features a massive 18.3L full‑scale build volume.
Silky, Smooth
The high-resolution 14-inch 12K(11520 x 8640px) screen and 24.8x24.8μm square pixels combination eliminates jagged edges for smooth, aliasing-free surfaces on every model.
C7-Grade Ball Screw
The Anycubic Photon P1 Max utilizes C7-grade ball screws and linear guide rails, achieving a remarkable repeat positioning accuracy of ±0.01mm. This robust motion control system provides a rock-solid foundation, ensuring stable operation and print precision.
Wave Release Technology
Wave Release Technology reduces release force by 60% during the lift cycle compared to standard smooth NFEP films. This leads to faster and more reliable print cycles.
Intelligent Dynamic Adjustment, Fast & Steady Wins the Race
Dynamic Release 3.0
Monitors real-time layer separation forces to modulate the lift height and speed. This ensures reliable release with every layer, significantly boosting both print success rate and quality.
Dynamic Light-Off Compensation 3.0
Calculates resin flow-back rate and dynamically adjusts the light-off duration to precisely prepare each layer for exposure, ensuring optimal speed and efficiency.
Specifications
Printing Volume: 285.5*214*300mm³
Printing Speed: 15-25 mm/h (0.05 mm layer, Std Resin)
Light Source: COB + Fresnel + Mask
Material Compatibility: All Anycubic Resins
Build Platform: Precision-ground Steel Platform
Z-axis: Dual linear guide rails + Ball lead screws
Release film: NFEP
Resin Vat: 1.9L
Machine Leveling: Leveling-Free 3.0 + Leveling Feedback + Leveling Self-Check
Power Supply: 296W
Protection Film: Wave Release Film
Slicing Software: Photon Workshop( + Chitubox/Lychee/Tango)
Hinged Cover: Smooth Hinge (>45° stepless)
Operating Screen: 4.5" Resistive Touchscreen
Air Purifier: Optional AirPure 2.0
LCD Screen: 14" Monochrome LCD (12K)
Machine Weight: 23.1kg
Product Dimensions: 430*414*625mm³
What's In The Box
