Description

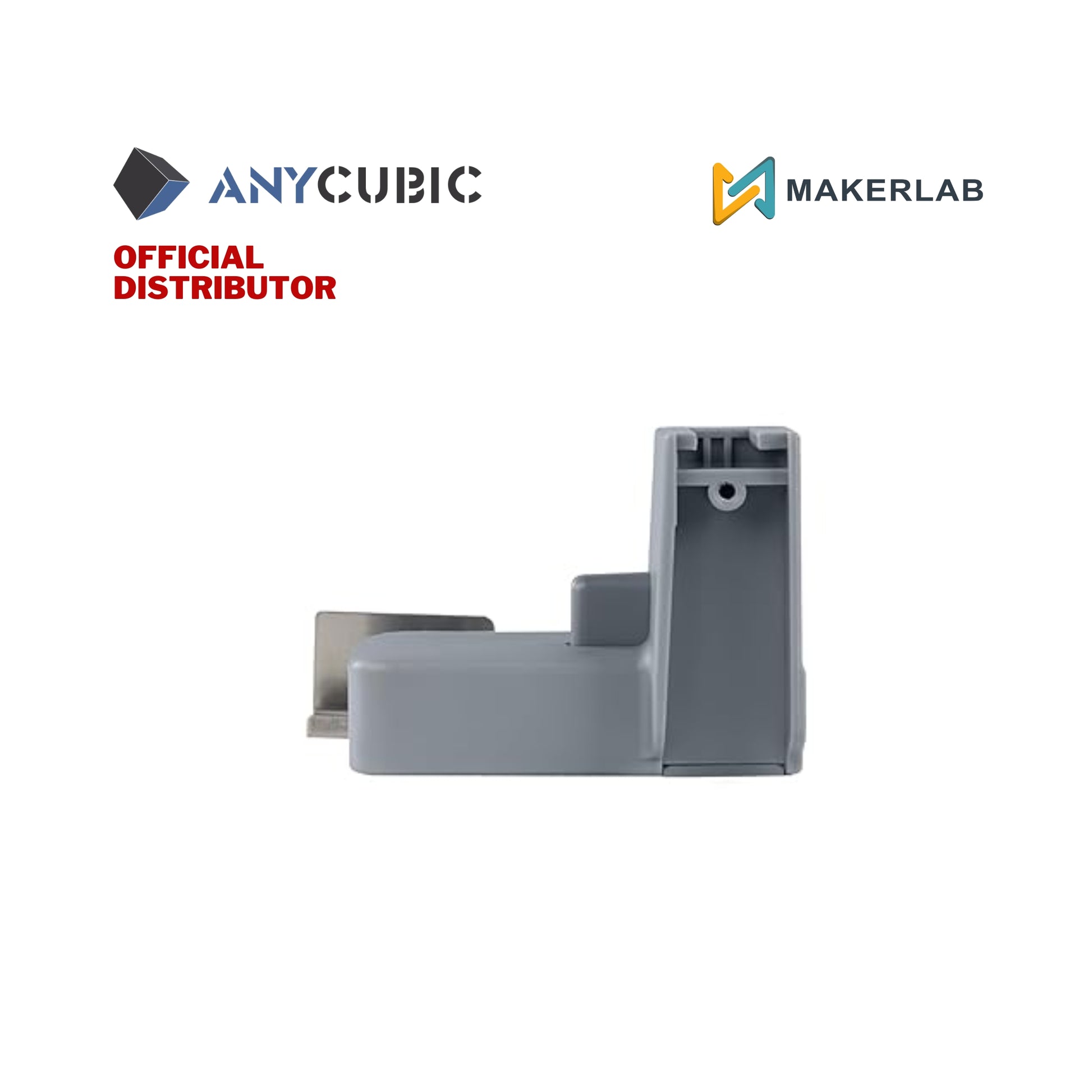

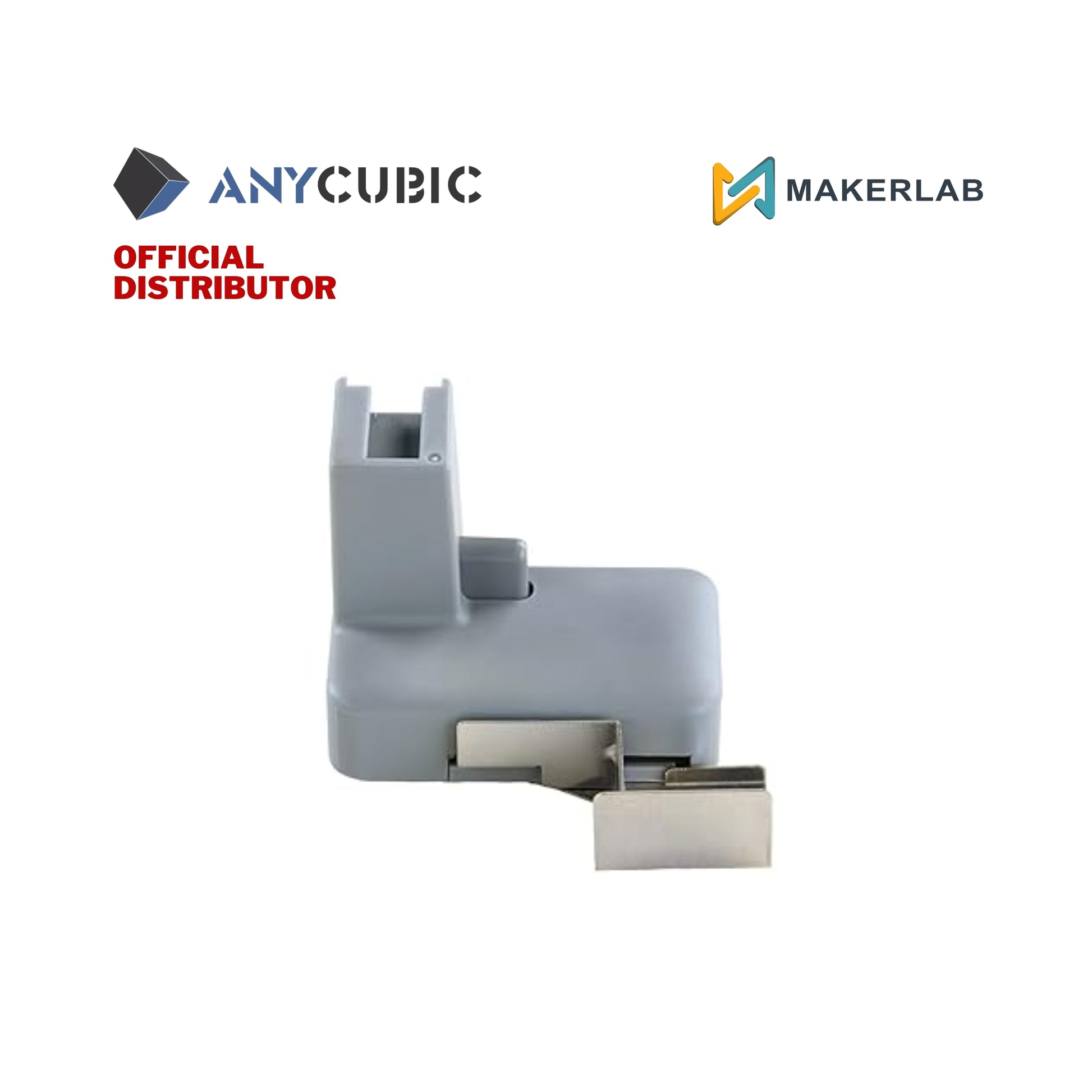

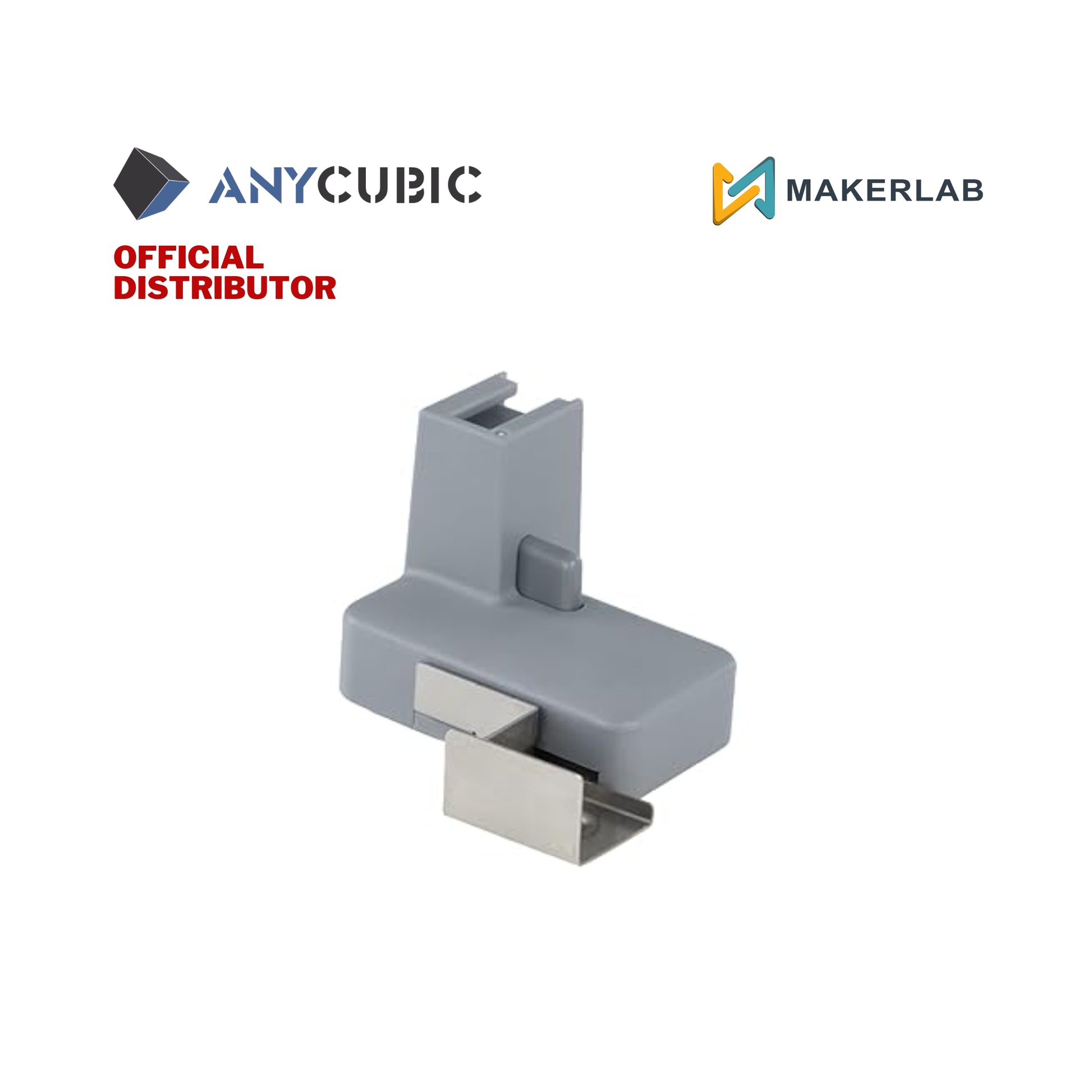

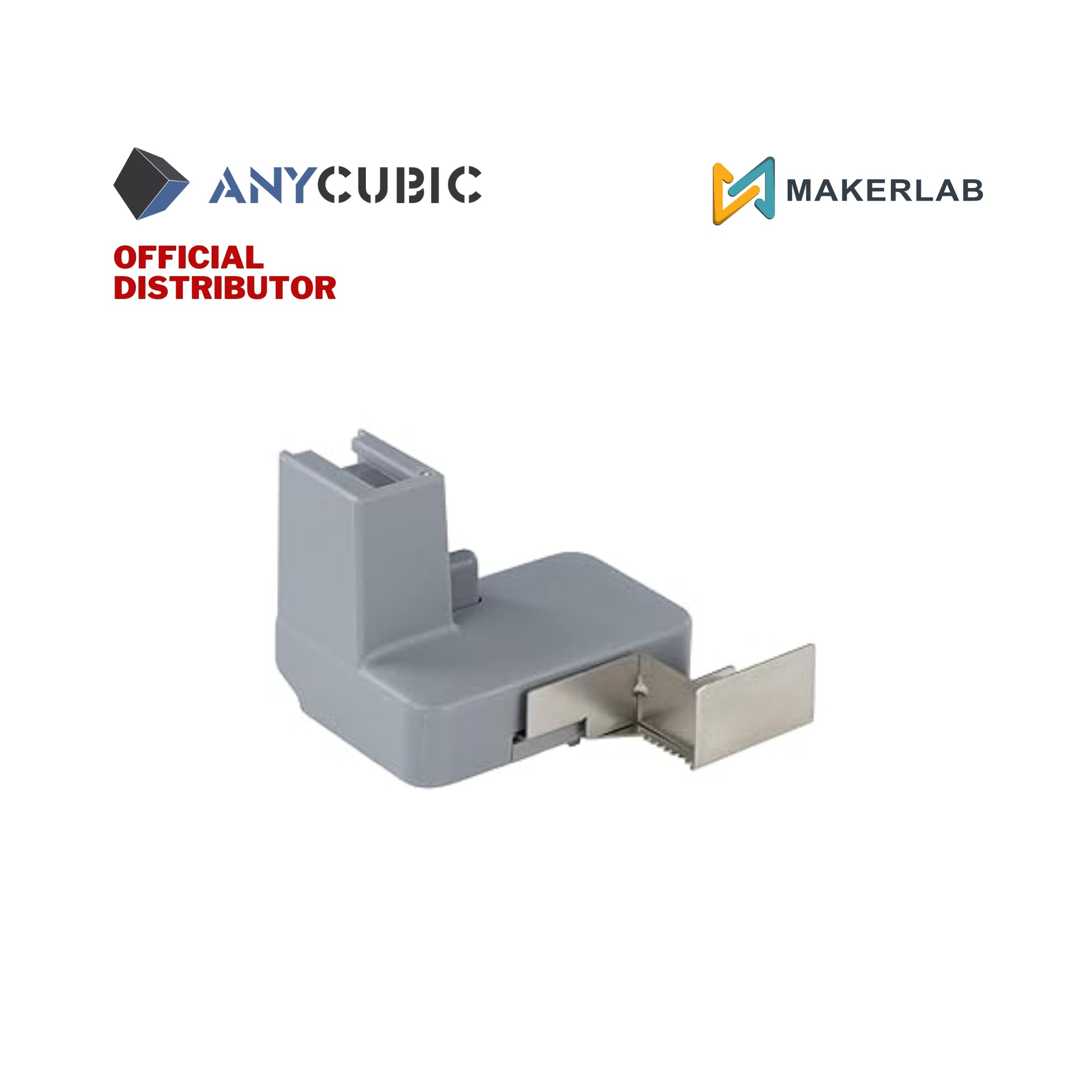

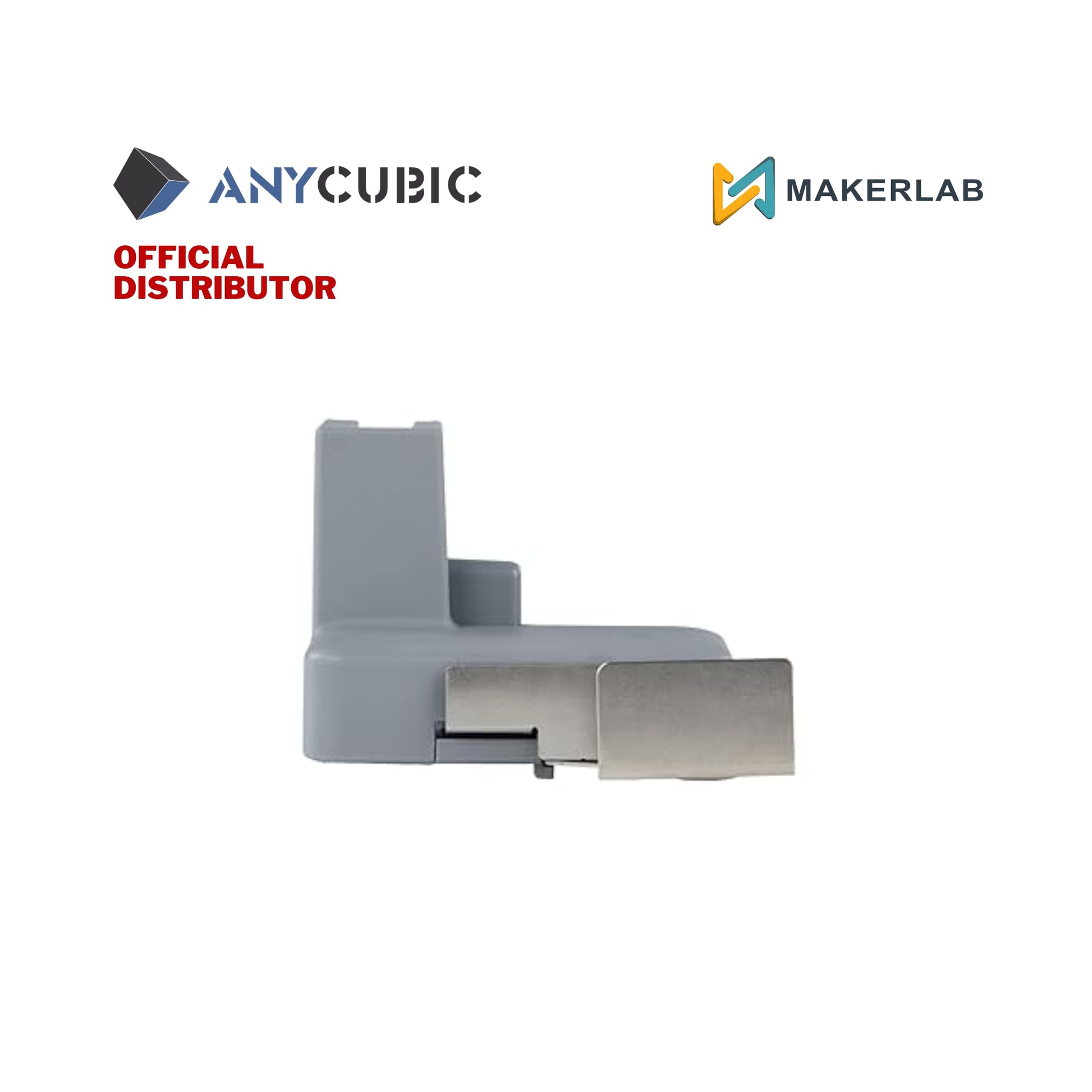

The Material Throwing Assembly is the hardware responsible for the flick or ejection action that removes purged filament from the toolhead area. In high-speed multi-color printing, the ACE GEN2 printhead purges old color into a small waste spiral; the Material Throwing Assembly then mechanically clears this waste into the collection bin.
This assembly is crucial for Kobra X's automated waste reduction system. By ensuring that purged material is cleanly thrown away from the build plate, it prevents waste entanglement where stray plastic might otherwise be dragged onto the 3D model by the nozzle, a common failure point in rapid color-changing systems.
Features
Active Ejection Mechanism: Uses a spring-loaded or motorized lever to physically propel purged filament into the waste container.
Anti-Clog Geometry: Designed with a wide-mouth funnel and smooth internal surfaces to prevent the nesting of filament spirals.
High-Speed Synchronization: Calibrated to work with the Kobra X's 600 mm/s motion profile, clearing waste in less than 2 seconds during the color-swap cycle.
Heat Resistant Intake: The portion of the assembly nearest the nozzle is reinforced with high-temperature polymers to prevent melting during high-flow purges.
Specifications
Model Number: S010407
Compatible Models: Anycubic Kobra X and Kobra 4
Function: Filament Purge Ejection / Waste Management
Material: High-Impact ABS / Reinforced Nylon
Actuation Type: Mechanical Lever / Carriage Triggered
Mounting Position: Rear X-Axis / Waste Chute Interface
