Description

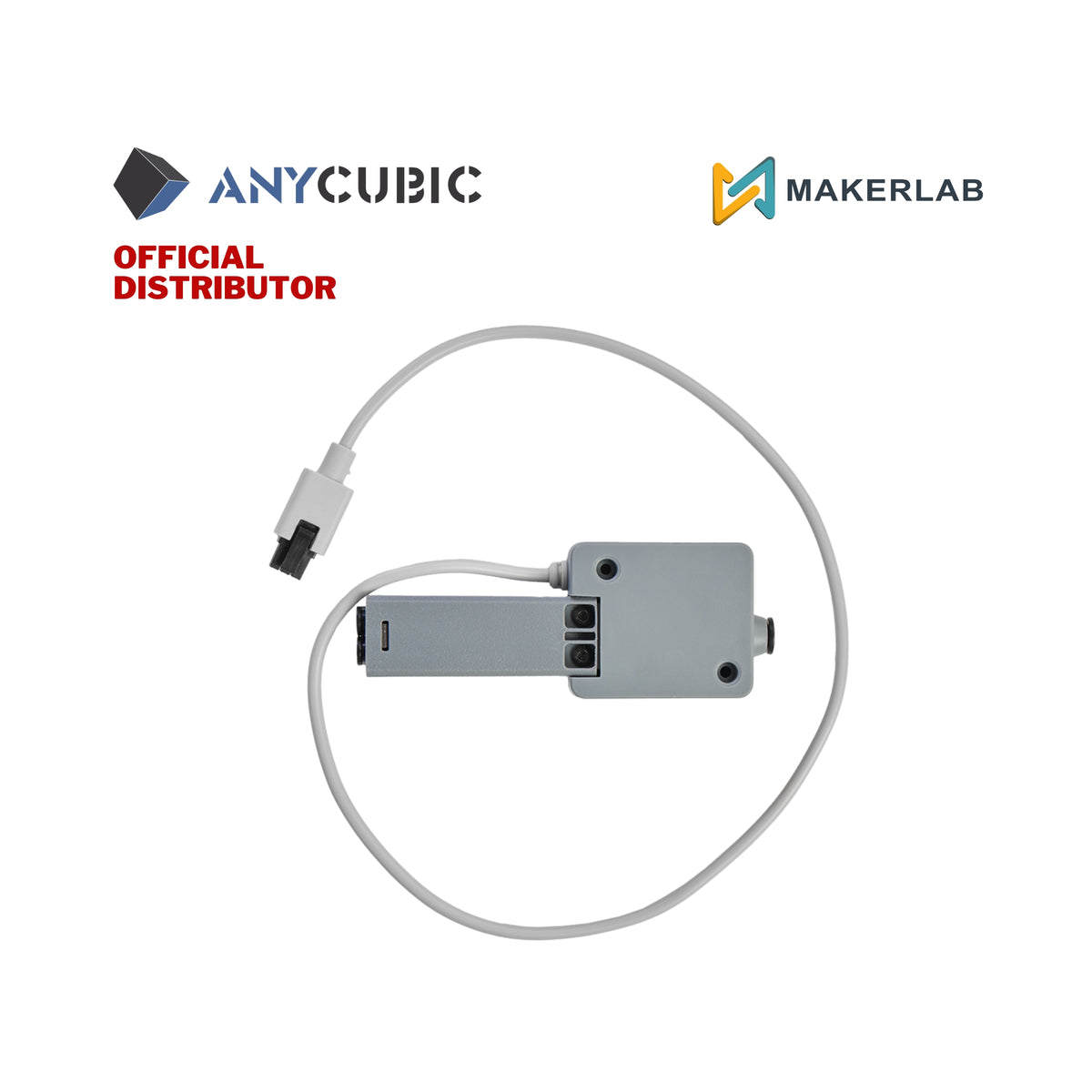

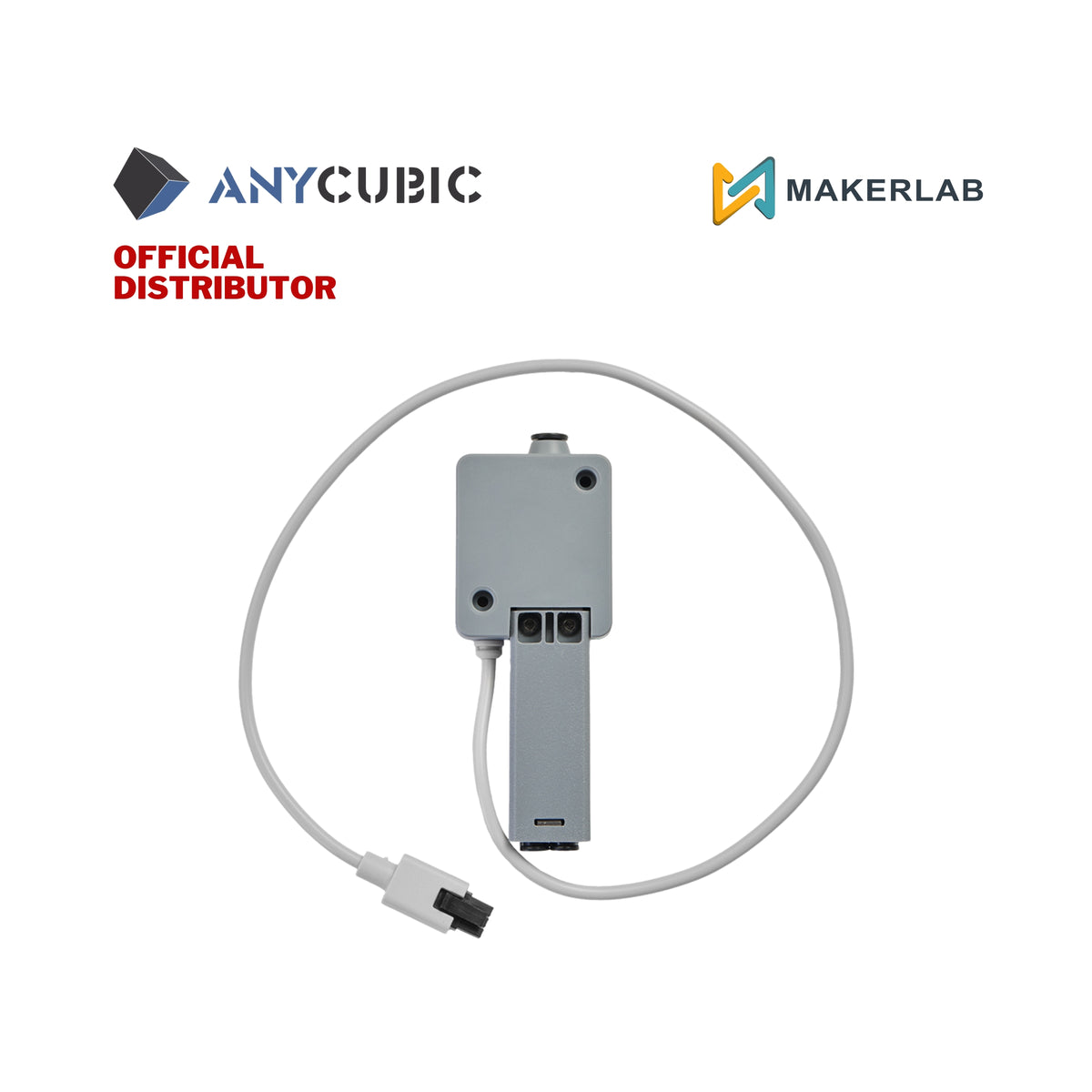

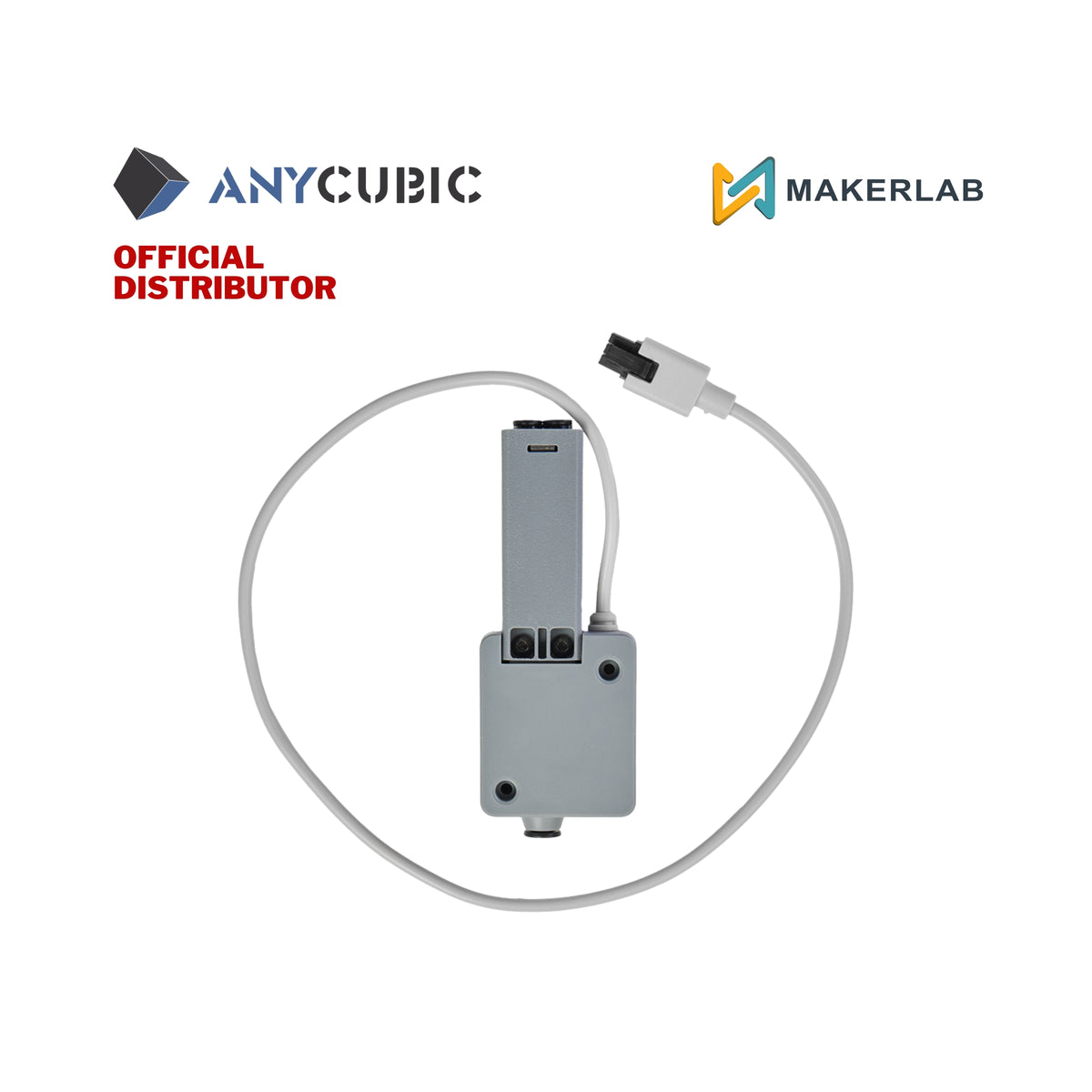

The Anycubic Material Breakage Detection Module is an official OEM smart filament runout and break sensor kit designed specifically for the Anycubic Kobra X series 3D printer.
This optical and mechanical sensing assembly continuously monitors filament presence and feeding movement in real time as filament travels toward the extruder. If the filament runs out, snaps, or experiences a feeder break during printing, the sensor instantly signals the printer's mainboard to automatically pause the print job and park the printhead. This prevents dry-running, hot-end heat creep, and ruins long-duration prints, allowing users to reload a new spool and resume printing seamlessly from the exact same layer.
Features
Real-Time Breakage & Runout Monitoring: High-sensitivity internal detection switches immediately recognize filament snap, exhaustion, or feeding interruptions.
Automatic Print Auto-Pause: Instantly triggers the Kobra X controller to save active print coordinates, park the toolhead, and alert the user before any layer misalignment occurs.
Low-Friction Filament Path: Features polished stainless steel or wear-resistant PTFE internal entry/exit guides to prevent filament scraping, drag, or shaving.
Direct OEM Drop-In Fit: Factory-engineered housing mounts directly to the designated bracket on the Kobra X chassis or feeding system with no hardware modifications required.
Plug-and-Play Electrical Connection: Includes pre-terminated signal wiring harnesses for quick connection directly to the printer's motherboard logic headers.
Specifications
Part Number: P010386
Component Type: Filament Runout & Material Breakage Sensor Module
Printer Compatibility: Anycubic Kobra X Series
Compatible Filament Diameter: 1.75mm
Sensor Mechanism: Optical / Precision Mechanical Switch Hybrid Detection
Operating Voltage: 3.3V - 5V DC
Housing Material: Injection-Molded Flame-Retardant ABS/PC Polymer
