Description

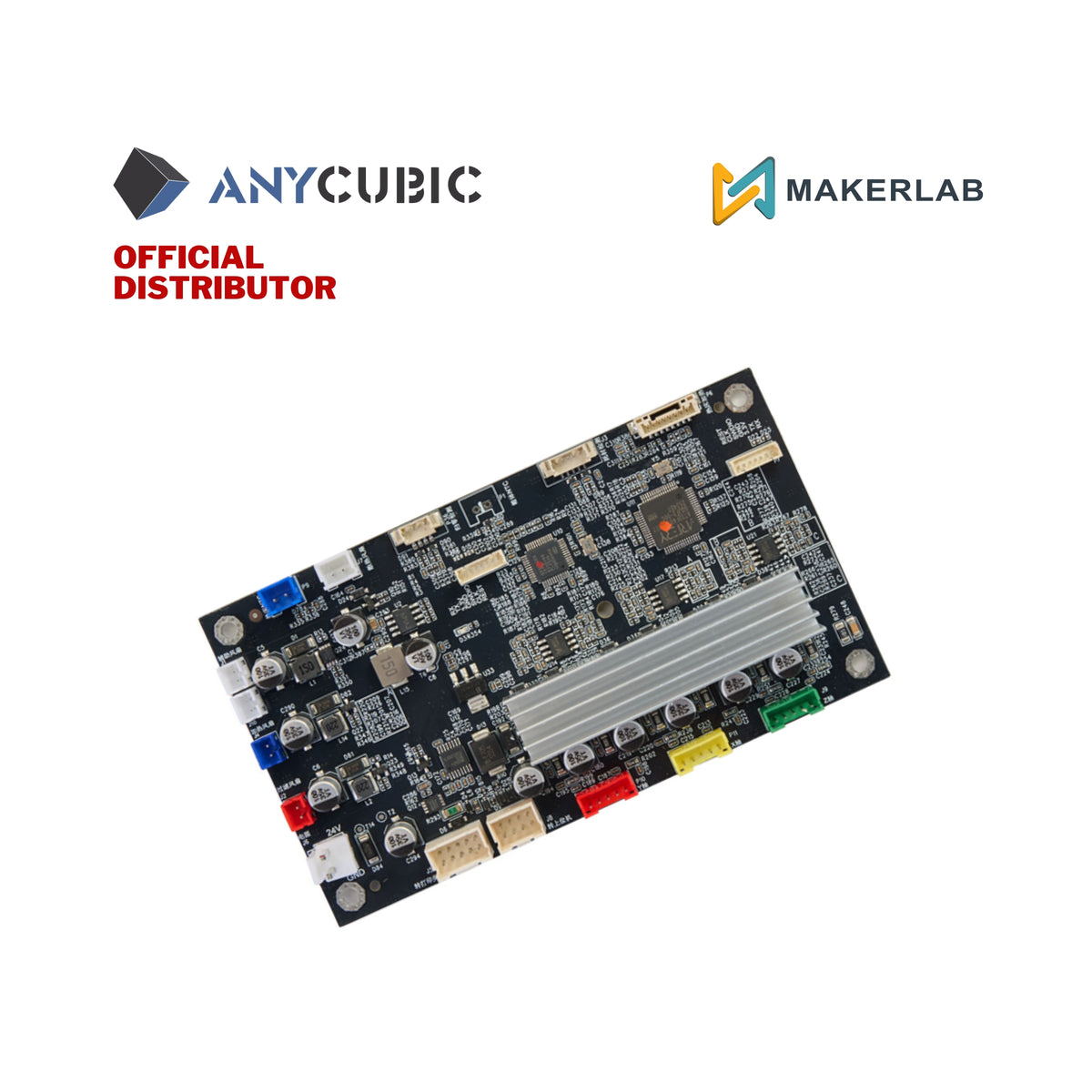

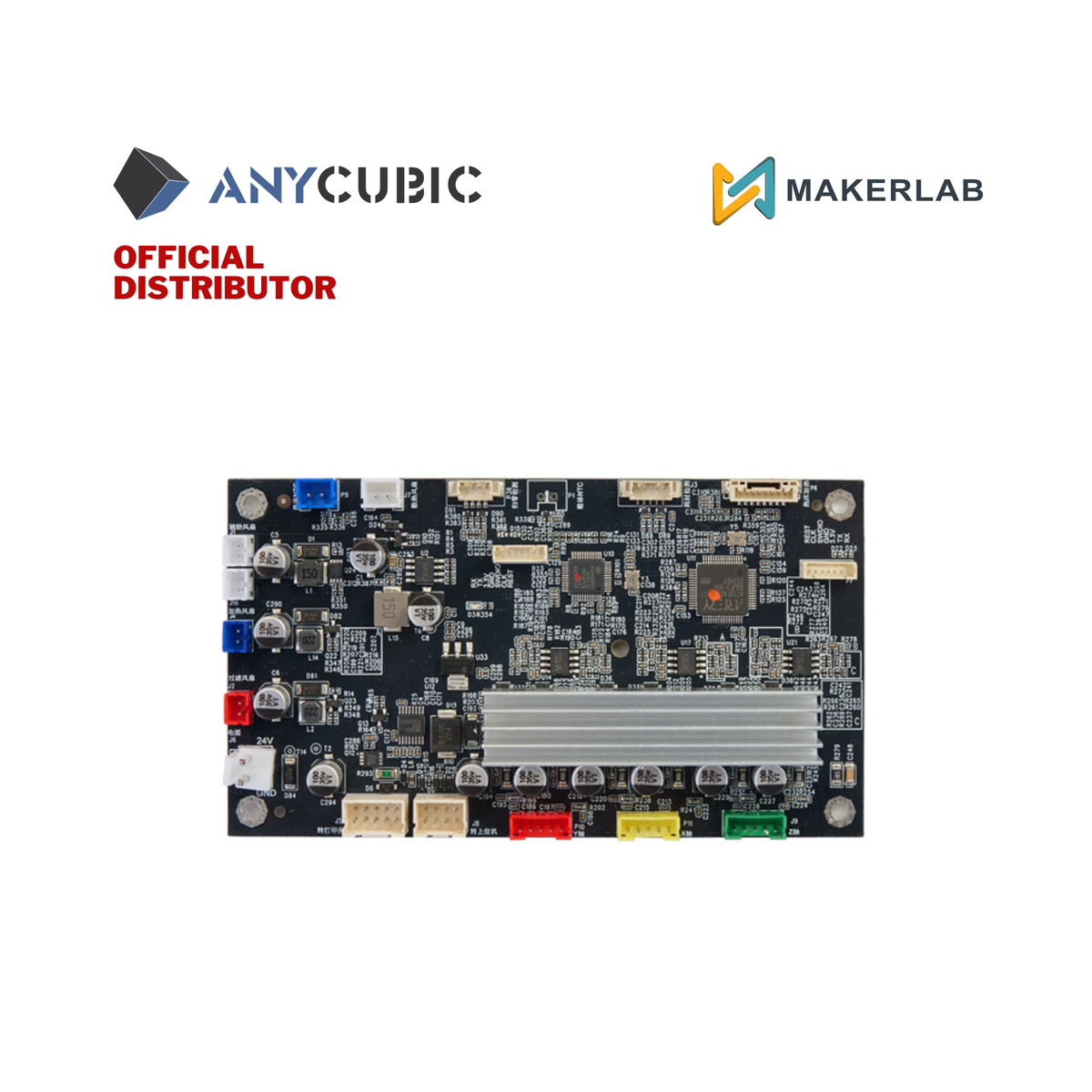

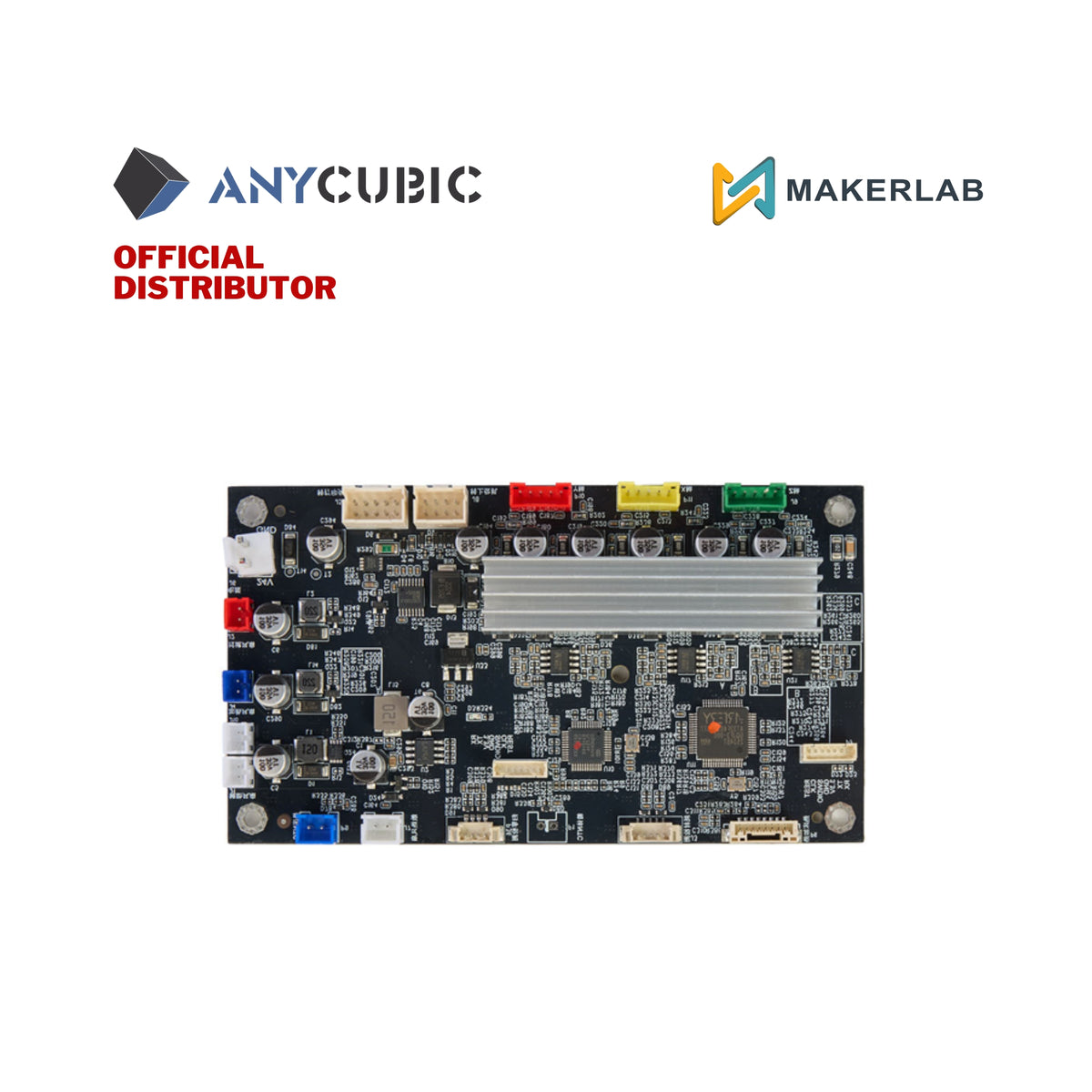

The Anycubic Driver Board is an official OEM stepper motor driver expansion board designed specifically for the Anycubic Kobra S1 Max 3D printer.
Engineered to regulate power delivery and control signals for the printer's motion system, this driver module houses high-efficiency stepper motor controllers capable of ultra-silent operation, high microstepping precision, and reliable torque output. It acts as an essential interface between the main controller board and the X, Y, Z, or extruder axis motors, supporting high-speed acceleration moves without losing steps or overheating during long-duration, large-format prints.
Features
High-Precision Motor Control: Delivers microstepping interpolation for accurate motor positioning, ensuring smooth surface finishes and sharp geometric prints.
Silent Drive Architecture: Reduces active motor operating noise and high-frequency coil whine during rapid direction switches and high-speed travel moves.
Effective Thermal Management: Integrated heavy-duty copper PCB traces and dedicated aluminum heatsink connection zones keep driver chips cool under high electrical current.
Plug-and-Play OEM Compatibility: Designed to drop directly into the designated expansion header sockets on the Kobra S1 Max motherboard without soldering or wiring modifications.
Built-In Electrical Protection: Features over-current, short-circuit, and thermal shutdown protections to prevent damage to the main logic board during mechanical jams.
Specifications
Part Number: S010422
Component Type: Stepper Motor Driver Expansion Board
Printer Compatibility: Anycubic Kobra S1 Max
Operating Voltage: 24V DC
Interface / Mounting: Multi-pin Header Socket Connection
Cooling Method: Passive Aluminum Heatsink Attachment Point
PCB Construction: High-Thermal Conductivity Multi-Layer Board
