Description

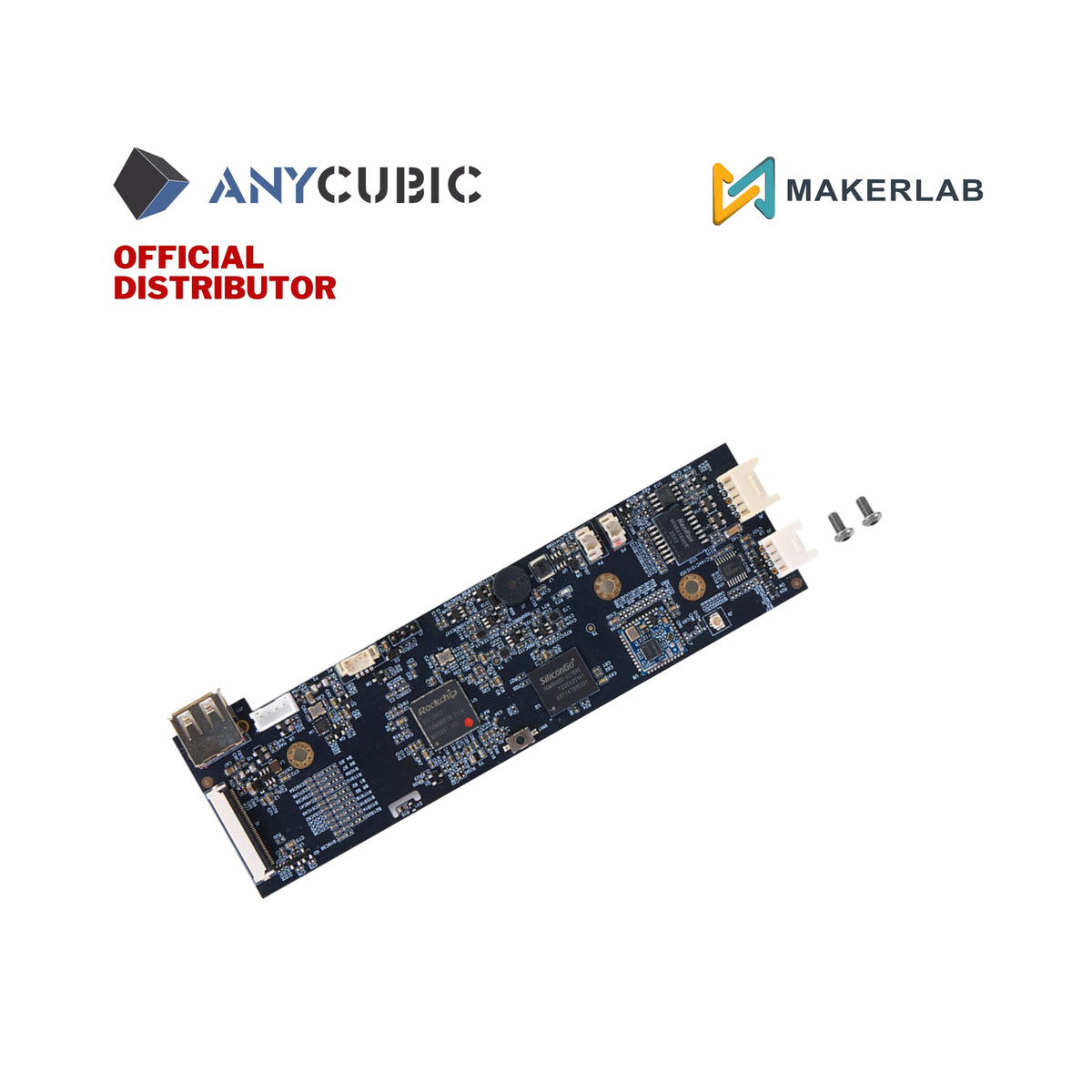

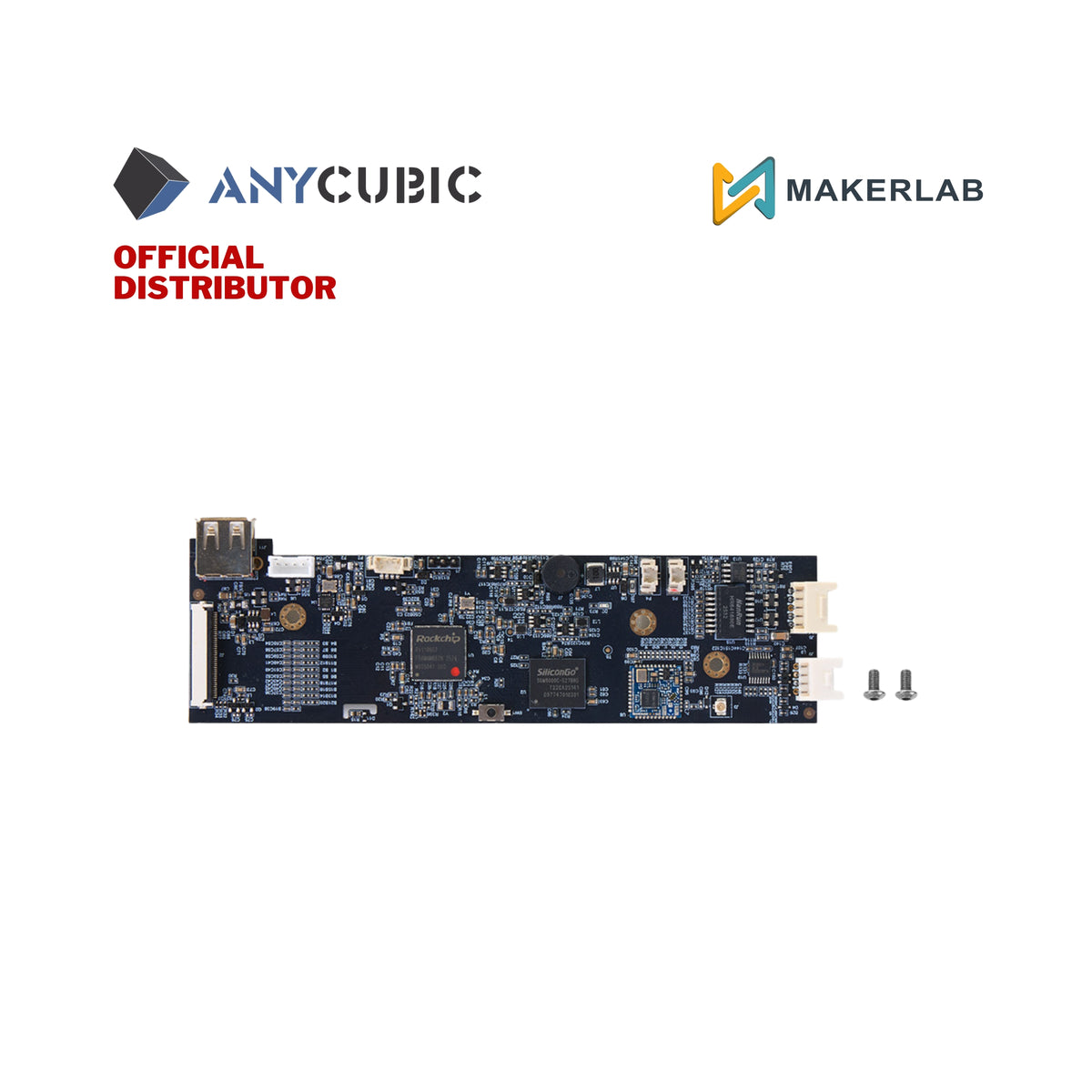

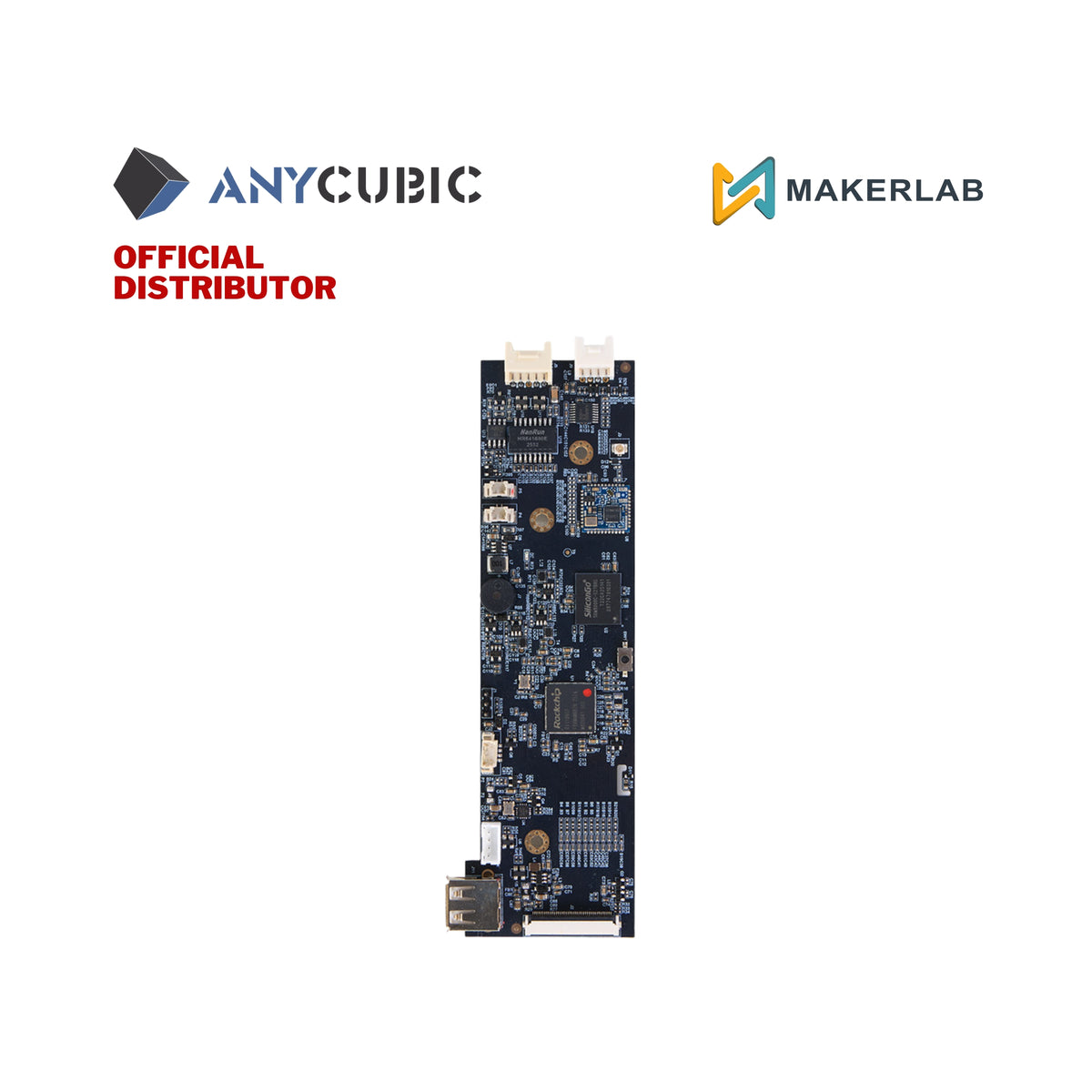

The Anycubic Control Board is the main official OEM motherboard engineered specifically to manage all electronic subsystems for the Anycubic Kobra S1 Max 3D printer.
As the central processing hub of the printer, this board processes G-code commands, coordinates high-speed motor kinematics, regulates thermal loops for the hotend, bed, and active chamber heaters, and manages sensor telemetry. Built on a high-performance 32-bit architecture, it delivers stable processing power required for input shaping, high-speed acceleration algorithms, and real-time communication with external multi-material feeding systems and cloud/network connectivity interfaces.
Features
32-Bit High-Speed Architecture: Powered by a high-frequency 32-bit processor capable of handling rapid trajectory calculations, input shaping, and high volumetric extrusion rates.
Integrated Multi-Rail Power Management: Regulates power delivery across low-voltage logic, 24V stepper drives, high-draw bed heating, and active chamber heating circuits.
Direct OEM Drop-In Replacement: Factory-engineered mounting points, connector layout, and pinout arrangements match the Kobra S1 Max chassis perfectly for seamless replacement.
Expandable Header Ports: Features dedicated connection ports for motor drivers, auto-leveling sensors, filament runout detection, auxiliary cooling fans, and network modules.
Comprehensive Circuit Protection: Built with surface-mounted fuses, TVS diodes, and thermal shutdown safeguards to protect sensitive processing chips against voltage spikes or wire shorts.
Specifications
Part Number: S010438
Component Type: Main Controller Board / Motherboard
Printer Compatibility: Anycubic Kobra S1 Max
Processor Architecture: 32-Bit High-Speed ARM Core
Input Voltage: 24V DC Main Power Rail
Connectivity Ports: USB Interface, Expansion Ports, Display Ribbon Header, Network Interface
Firmware Support: Anycubic Kobra OS / Klipper-Based OEM Architecture
