Description

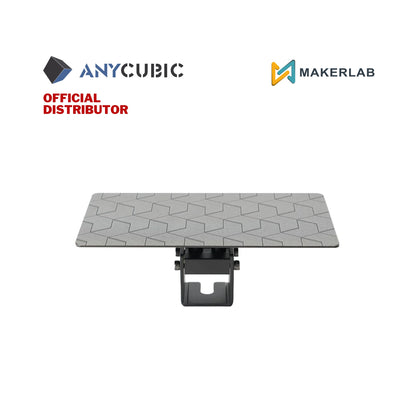

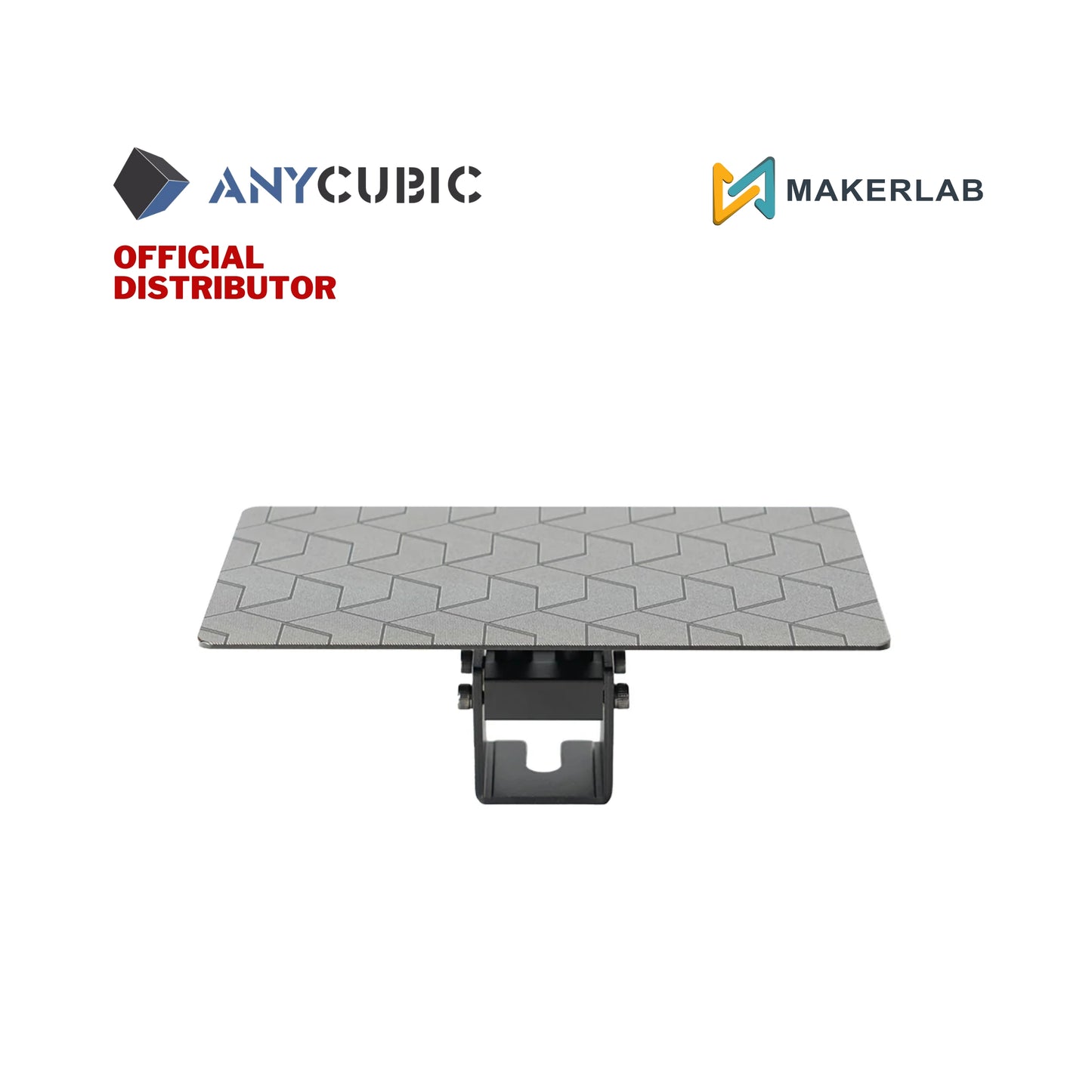

Photon Mono 4 Ultra
Engineered explicitly for the high-speed 10K resolution Photon Mono 4 Ultra. This compact, lightweight platform features a precision laser-carved platform face that helps hold fragile miniature supports firm against rapid layer peel forces.

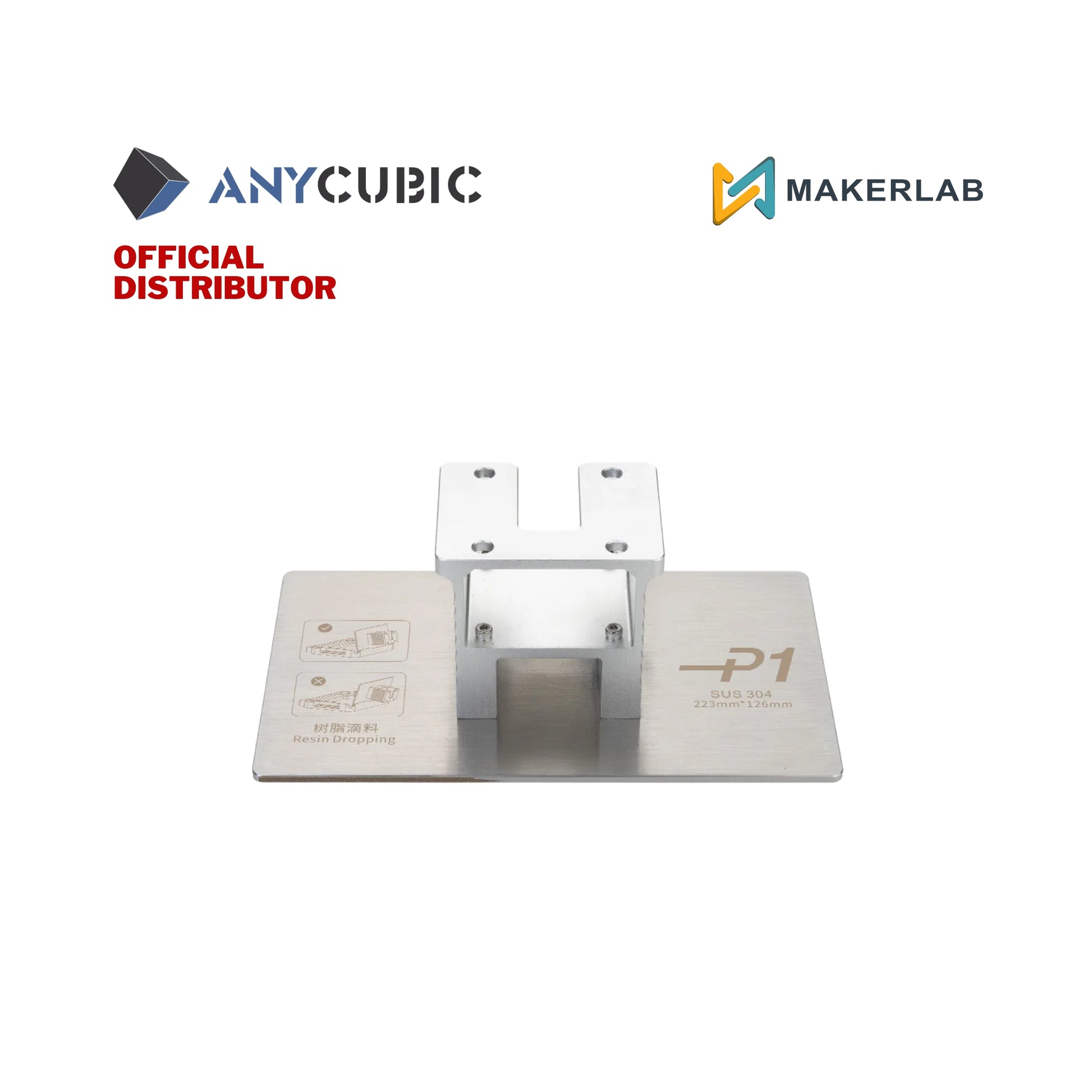

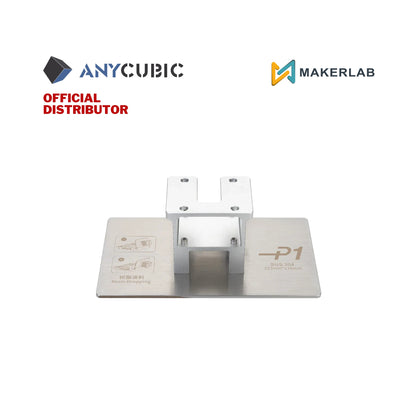

Photon P1
Tailored for the large 10.1-inch medium-footprint Photon P1 multi-material/high-speed system. Built with a steep-angled upper chassis slope to optimize automatic resin run-off, it pairs seamlessly with the high-acceleration vertical Z-axis ball screw layout of the P1 series.

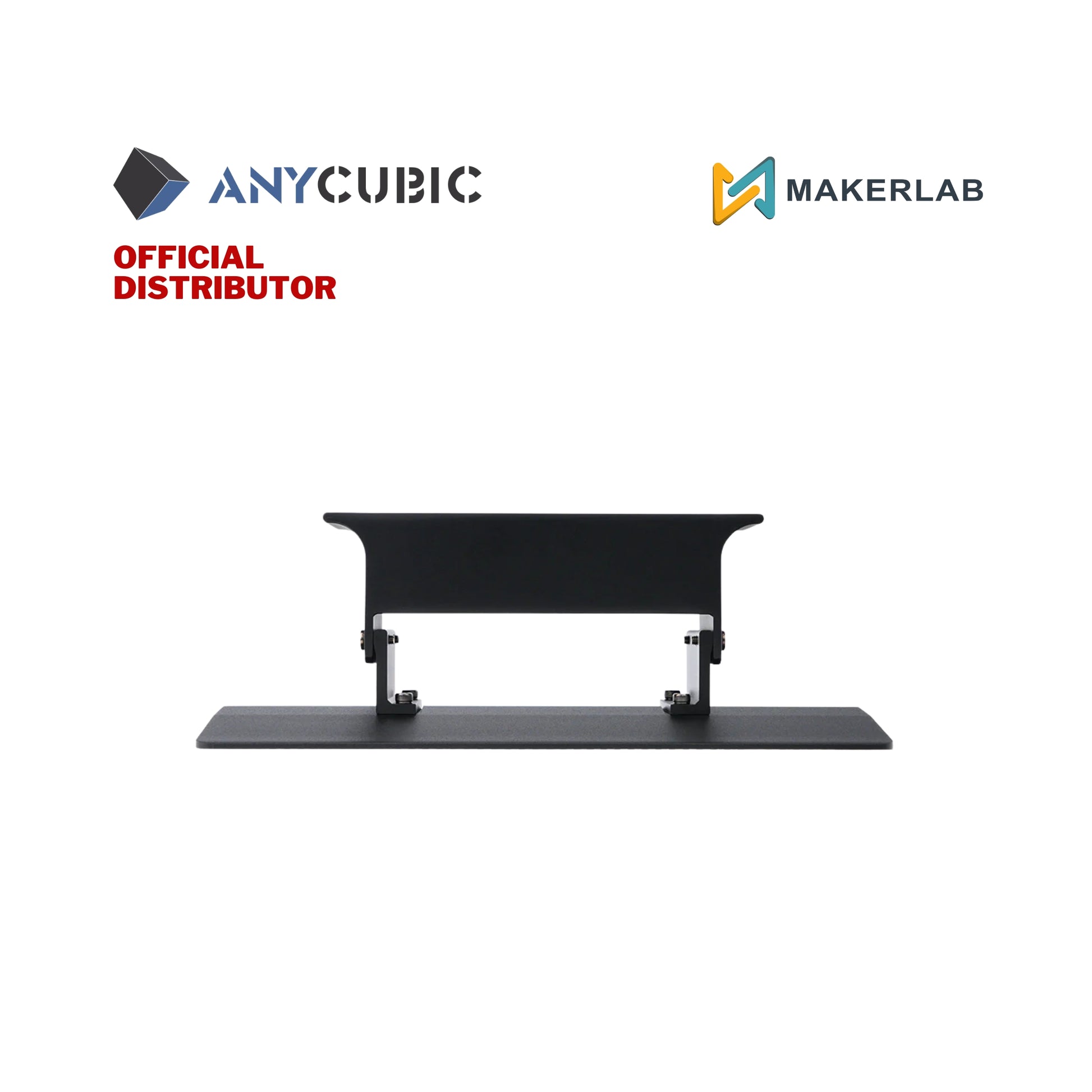

Photon Mono M7 Max
A heavy-duty, large-format structural platform built for the massive build volume of the Photon Mono M7 Max. Features reinforced dual-bolt alignment tracks and an aggressive grip profile across its expansive surface area to securely anchor heavy, solid cross-sectional engineering models.

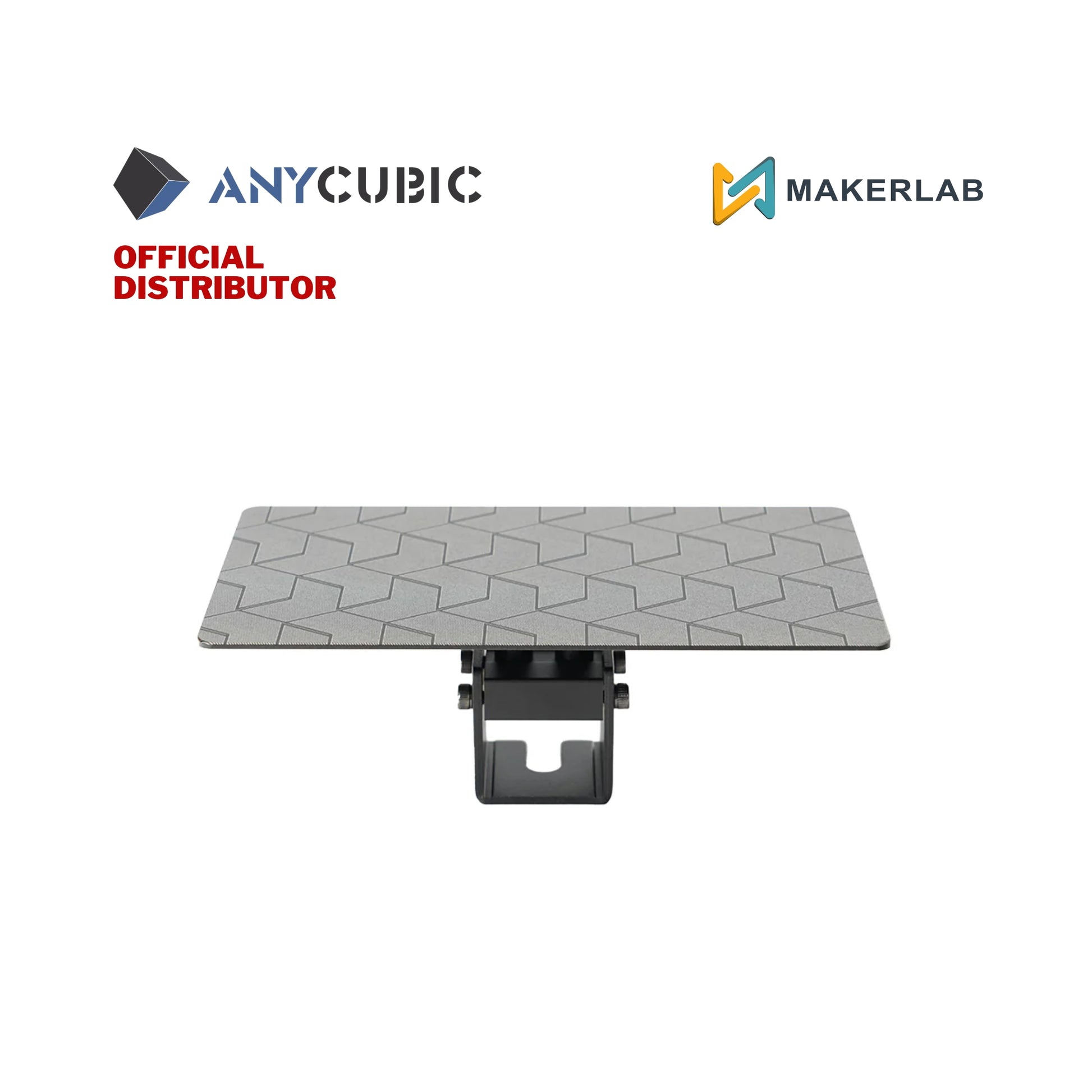

Photon Mono 4
The standard version build stage designed for the base Photon Mono 4 ecosystem. While it shares matching outer dimensional profiles with the Ultra model, its mounting block adapter and mass distribution are balanced specifically for the standard Mono 4's mechanical rail array.
Features
Advanced Surface Interfacing: Features a factory laser-carved pattern that significantly lowers model drop-off and first-layer separation errors, even when working with slippery, high-speed photopolymer resins.
Anti-Pool Sloped Top Design: Molded with a steep-sloped upper block that forces excess resin to slide back down into the vat naturally, minimizing post-print mess and simplifying cleanup.
Heavy-Duty Aluminum Construction: Machined from high-tensile, corrosion-resistant aluminum alloy that resists scratching from metal spatulas and will not degrade from prolonged exposure to chemical solvents or raw resins.
Rigid Quick-Lock Mounts: Designed with a structural top-mount block that slots perfectly onto the printer's Z-axis gantry, ensuring zero shifting under high peel-force loads.
Specifications
Compatibility: Photon Mono 4 Ultra
Type: Laser-Carved Plate
Color: Black
Weight: 439g
Package Dimension: 230*149*98mm
Compatibility: Photon P1
Type: Precision-Ground Steel Plate
Color: Silver
Weight: 1619g
Package Dimension: 286*181*125mm
Compatibility: Photon M7 Max
Type: Laser-Carved Plate
Color: Black
Weight: 2600g
Package Dimension: 400*255*190mm
Compatibility: Photon Mono 4
Type: Laser-Carved Plate
Color: Black
Weight: 439g
Package Dimension: 230*149*98mm
