Description

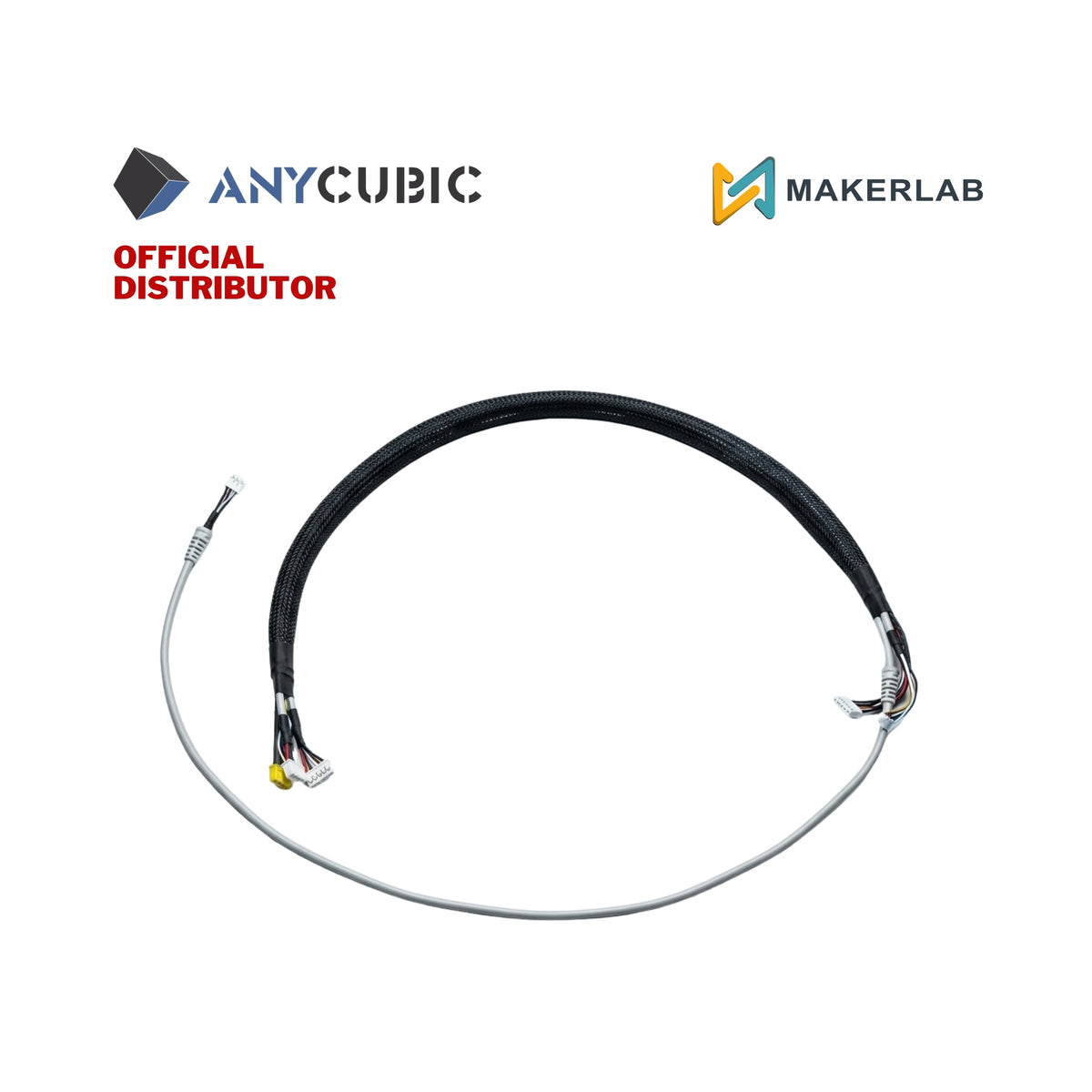

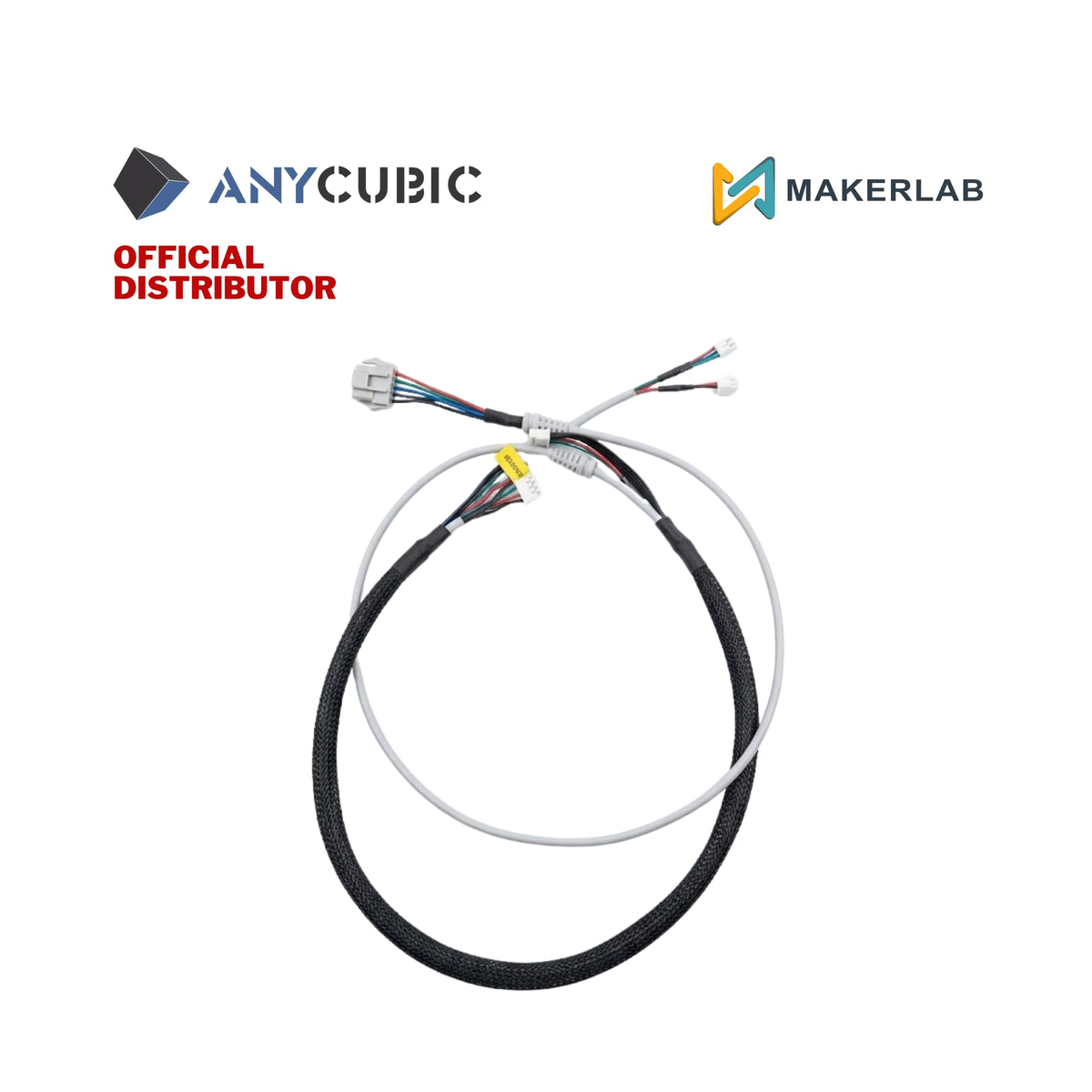

The Anycubic ACE GEN 2 Printhead Signal Cable is an official OEM multi-conductor ribbon harness designed specifically for the Anycubic Kobra X series 3D printers equipped with the ACE (Anycubic Color Engine) GEN 2 toolhead system.
Constructed with high-flex, anti-abrasion wiring and industrial-grade strain relief boots, this harness acts as the primary data line between the mainboard, hotend breakout board, auto-leveling sensors, and multi-filament extrusion drivers. It carries real-time signals for heating element controls, thermistors, toolhead fans, optical filament runout sensors, and high-speed motion telemetry, ensuring stable communication without signal degradation or thermal interference during rapid print head maneuvers.
Features
Direct OEM Cable Assembly: Designed specifically for the Kobra X Series printhead breakout board pinout to ensure plug-and-play installation without wire splicing or pin remapping.
High-Flex Durability Coating: Engineered to withstand millions of continuous back-and-forth bend cycles along the X/Y drag chain without internal conductor fatigue or copper wire fractures.
Shielded Signal Integrity: Incorporates internal braided shielding to protect sensitive thermistors and bed-leveling signals from high-frequency stepper motor EMI noise.
Molded Strain Relief Connectors: Reinforced dual-ended latching connectors prevent accidental detachment under rapid acceleration.
Complete Pinout Integration: Single combined harness routes power, temperature monitoring, fan PWM signals, and ACE GEN 2 filament switching controls.
Specifications
Brand: Anycubic
Part Number: E07020533
Printer Compatibility: Anycubic Kobra X / Kobra X Max Series (ACE GEN 2 System)
Cable Type: Multi-Conductor Shielded Printhead Signal Harness
Conductor Material: High-Purity Tinned Oxygen-Free Copper (OFC)
Connector Terminals: Multi-Pin High-Density Latching Pin Header Terminals
