Description:

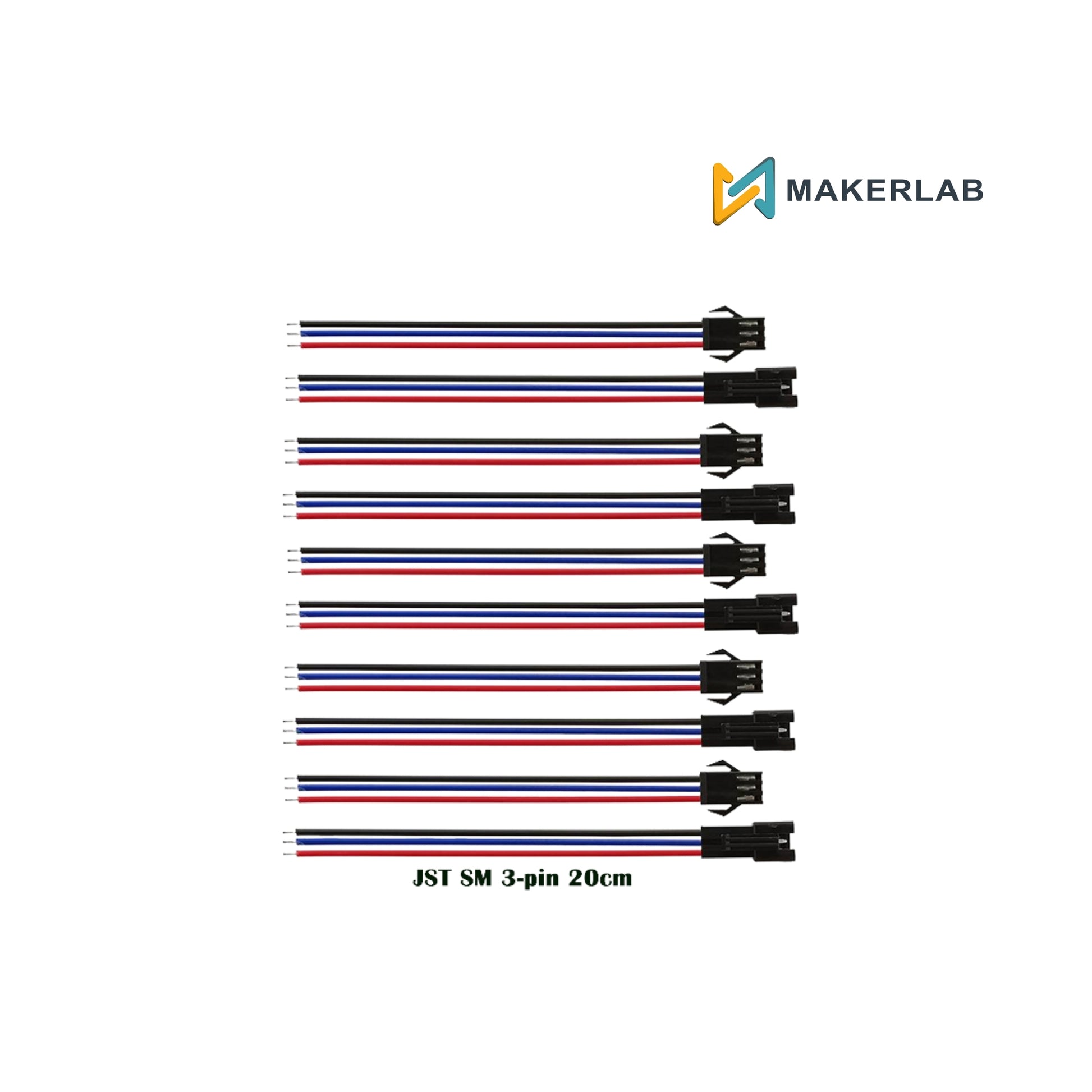

This pack contains 5 matching pairs of male and female JST SM connectors, each factory-crimped with 200mm (20cm) of flexible, color-coded wire. The JST SM series is a "disconnectable crimp style" connector favored for its arm-lock mechanism. This latch ensures that the connection remains stable and secure even when subjected to vibration or moderate tension, making it far more reliable than standard friction-fit headers.
Features:
Secure Latching: The integrated clip/latch prevents accidental disconnections, providing a "click" when fully seated.
Polarized Design: The keyed housing ensures that the positive, negative, and data lines are correctly aligned every time, preventing reverse polarity.
Plug-and-Play: Pre-wired and stripped ends allow for immediate soldering or connection to screw terminals without the need for specialized crimping tools.
Addressable LED Ready: The 3-wire configuration is the industry standard for 3-pin addressable LED systems.
High Flexibility: Stranded wire provides excellent flexibility for tight cable management in drones, robotics, or small enclosures.
Specifications:
Connector Type: JST SM (3-Pin)
Pitch: 2.54 mm (0.1 inch)
Wire Gauge: 22 AWG or 24 AWG (Stranded Copper)
Wire Length: 200 mm (8 inches) per side
Total Mated Length: ~400 mm (16 inches)
Current Rating: Up to 3.0A AC/DC
Voltage Rating: 250V AC/DC
Temperature Range: −25°C to +85°C
Material: Nylon 66 (Housing), PVC (Insulation), Tinned Copper (Wire)
