Description:

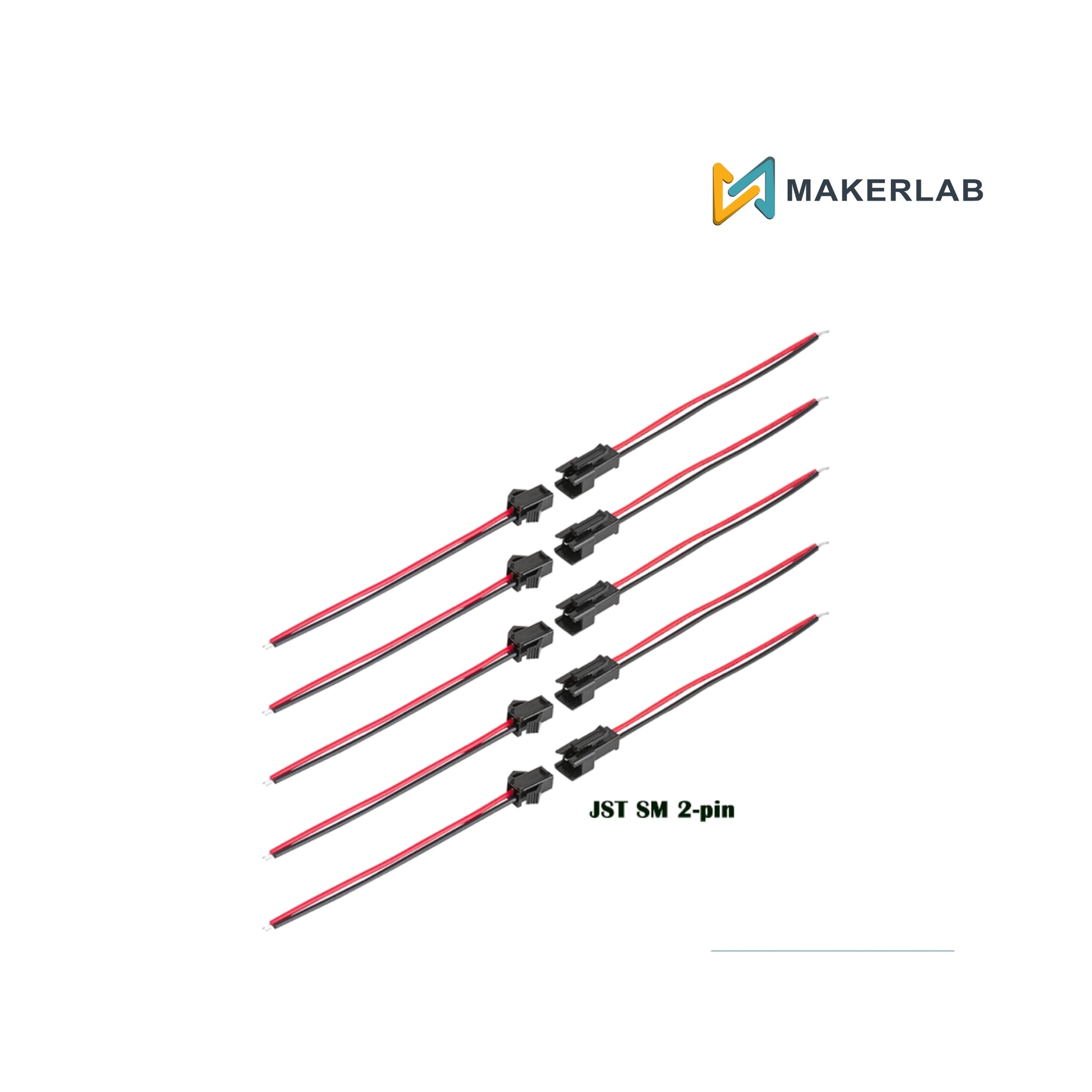

This kit consists of 5 matching pairs of male and female connectors, each pre-crimped with 200mm (20cm) of color-coded wire. The JST SM series is known for its arm-lock mechanism, which prevents accidental disconnections due to vibration or tension. The connectors are polarized, meaning they can only be plugged in one way, protecting your circuits from reverse polarity.
Features:
Secure Locking: Features a snap-lock latch that ensures a solid connection until manually released.
Plug-and-Play: Pre-wired and stripped ends allow for immediate soldering or crimping into your project.
Polarized Design: Keyed housing prevents incorrect mating of the male and female ends.
High Flexibility: Stranded wire provides excellent flexibility for tight spaces in drones or small enclosures.
Standard Pitch: Uses a 2.5mm or 2.54mm pitch compatible with common breadboard and PCB layouts.
Specifications:
Connector Type: JST SM
Number of Pins: 2 Pins
Pitch: 2.54 mm (0.1 inch)
Wire Length: 200 mm
Total Mated Length: ~400 mm
Current Rating: Up to 3.0A AC/DC
Voltage Rating: 250V AC/DC
Operating Temperature: -25°C to +85°C
