Description:

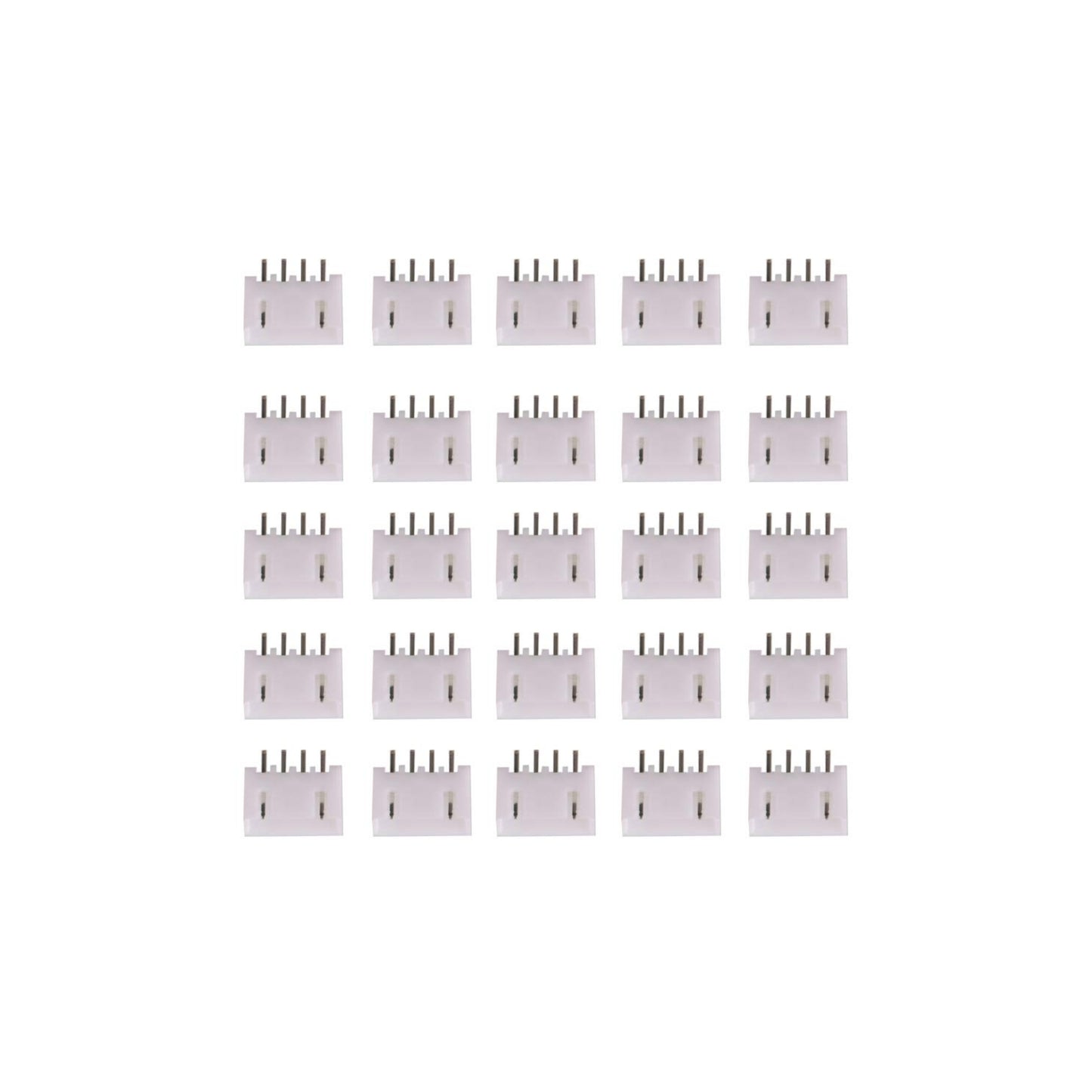

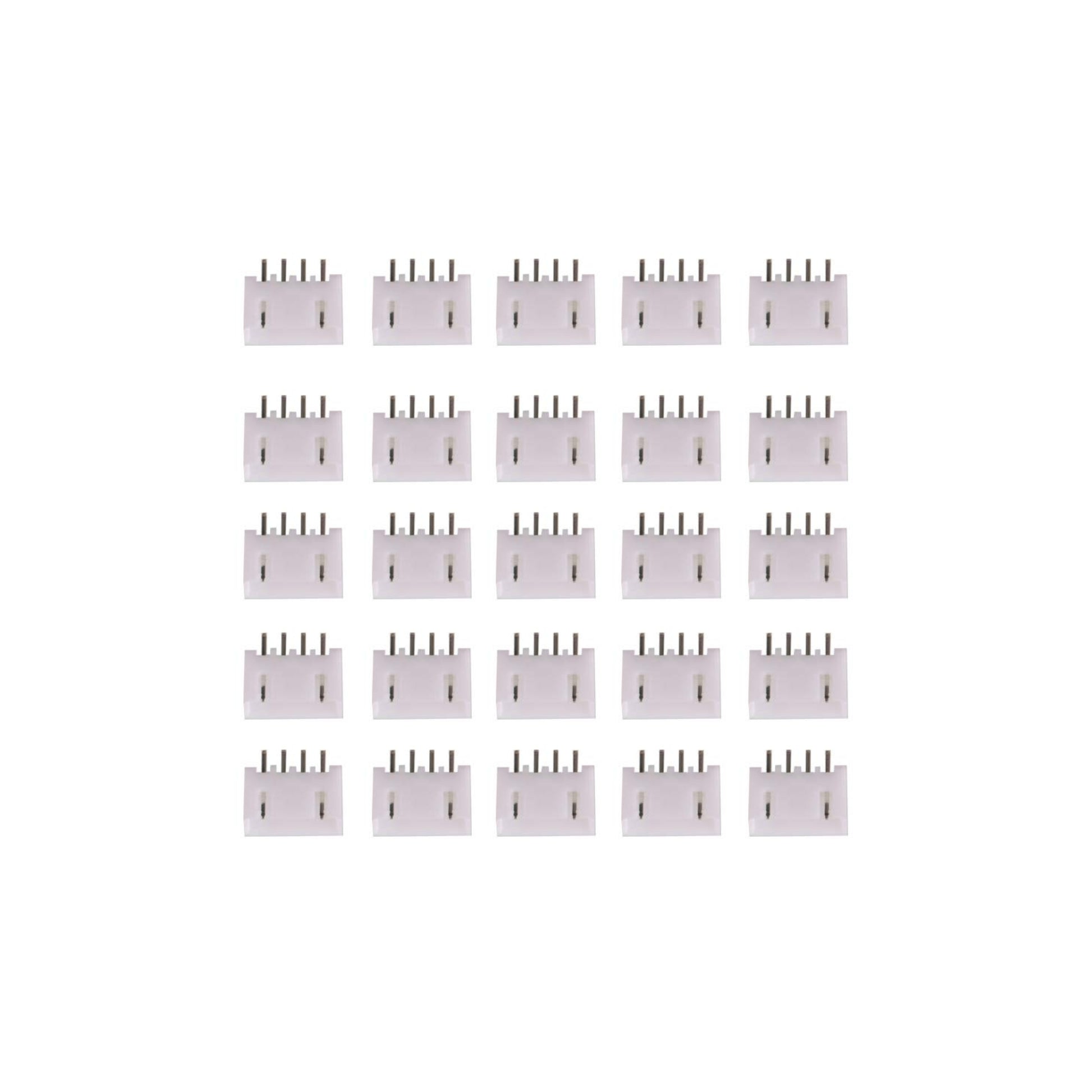

This 4-Pin JST XH Connector set consists of 25 through-hole, top-entry (straight) headers. The "shrouded" design features a protective plastic wall around the pins, which serves two critical purposes: it prevents the pins from bending during handling and ensures the matching female housing can only be inserted in the correct orientation, preventing reverse-polarity damage. With a standard 2.54mm (0.1") pitch, these headers are perfectly compatible with breadboards and perf-boards, making them a favorite for both professional PCB assembly and hobbyist prototyping/
Features:
Polarized Housing: The keyed entry ensures error-proof mating, protecting sensitive electronics from incorrect wiring.
Through-Hole Mounting: Straight (180°) leads are designed for secure soldering directly onto printed circuit boards.
High Current Support: Despite its small footprint, it can handle up to 3A, making it suitable for motor leads and small power supplies.
Vibration Resistant: Features a small mechanical friction-lock that keeps the connection secure even in moving assemblies like 3D printer toolheads.
Standardized Pitch: The 2.54mm (0.1") spacing allows it to be used as a more secure alternative to standard unprotected pin headers.
Specifications:
Quantity: 25pcs/set
Connector Type: JST XH Shrouded Male Header
Pin Pitch: 2.54mm (0.1 inch)
Number of Pins: 4-Pin
Orientation: Straight Angle
Packaging Weight: 50 grams
Packaging Dimensions: 10x10x3cm
