Description

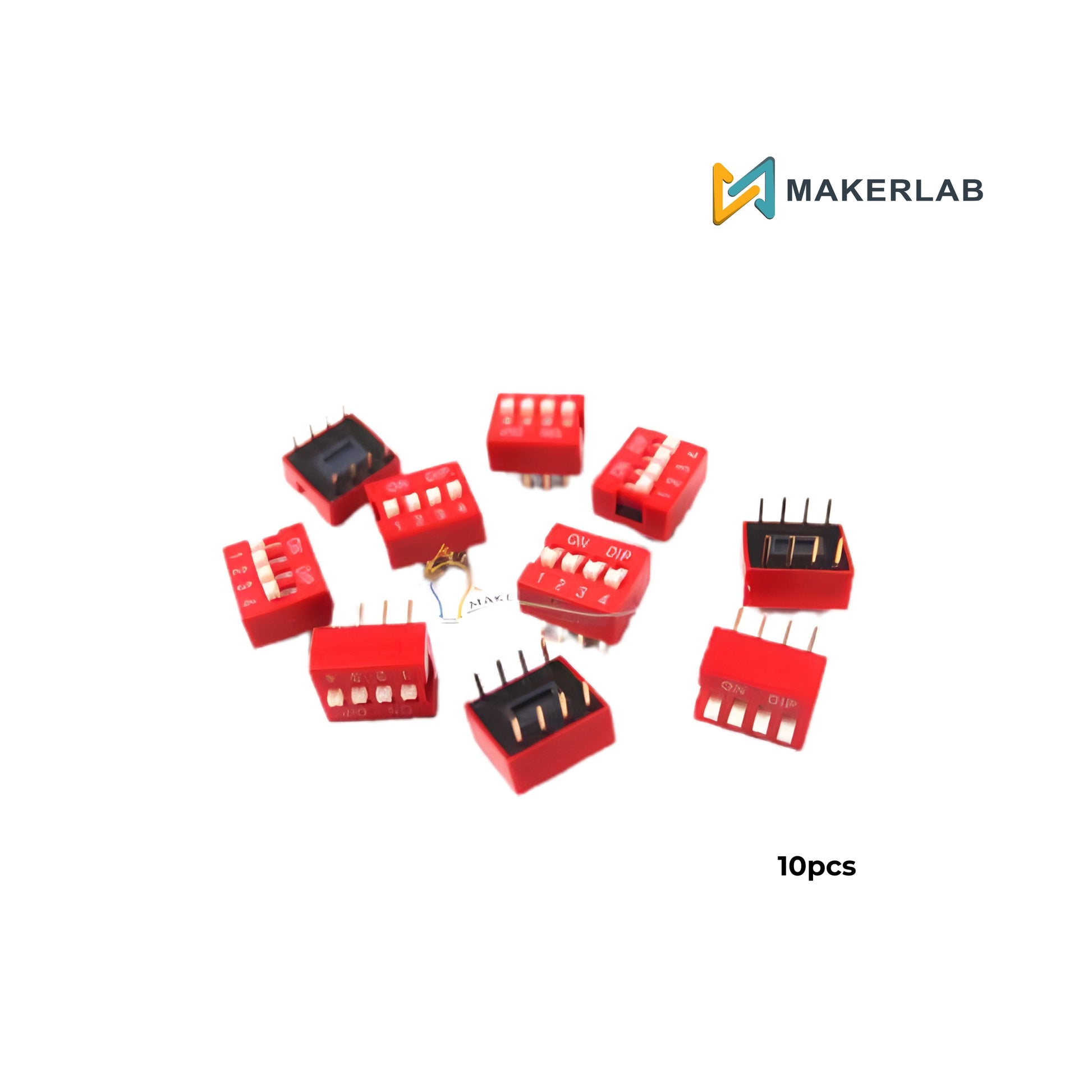

This kit includes ten individual 4-position flat dial switches. Each unit contains four independent sub-switches (poles) housed in a single compact package. The "Flat" design refers to the low-profile actuators that lie flush with the housing, making them ideal for devices with tight clearances or where you want to prevent accidental toggling.
These switches are "Through-Hole" components, featuring standard 2.54mm (0.1 inch) pin spacing, which makes them perfectly compatible with breadboards, prototype perf-boards, and most industrial PCB layouts.
Features
Gold-Plated Contacts: Features high-conductivity gold plating on the internal contacts to ensure a reliable connection and prevent oxidation over long periods.
Low Profile Actuator: The flat slide design ensures the switch does not snag on enclosures or internal wiring.
Standard Breadboard Fit: Designed with a 2.54mm pitch, allowing for easy plug-and-play testing during the prototyping phase.
Clear Labeling: Each position is clearly numbered (1 through 4) with an "ON" indicator marked on the high side of the housing for easy orientation.
Specifications
Switch Type: DIP / Dial Switch
Positions: 4-Way (4-Pole)
Circuit: SPST (Single Pole Single Throw)
Pin Pitch: 2.54mm (0.1 inch)
Switching Rating: 25mA, 24V DC
Non-Switching Rating: 100mA, 50V DC
Contact Resistance: 50mΩ Max
Insulation Resistance: 100MΩ Min at 500V DC
Operating Temp: −20°C to +70°C
Material: PBT Plastic (UL94V-0 Rated)
