Description

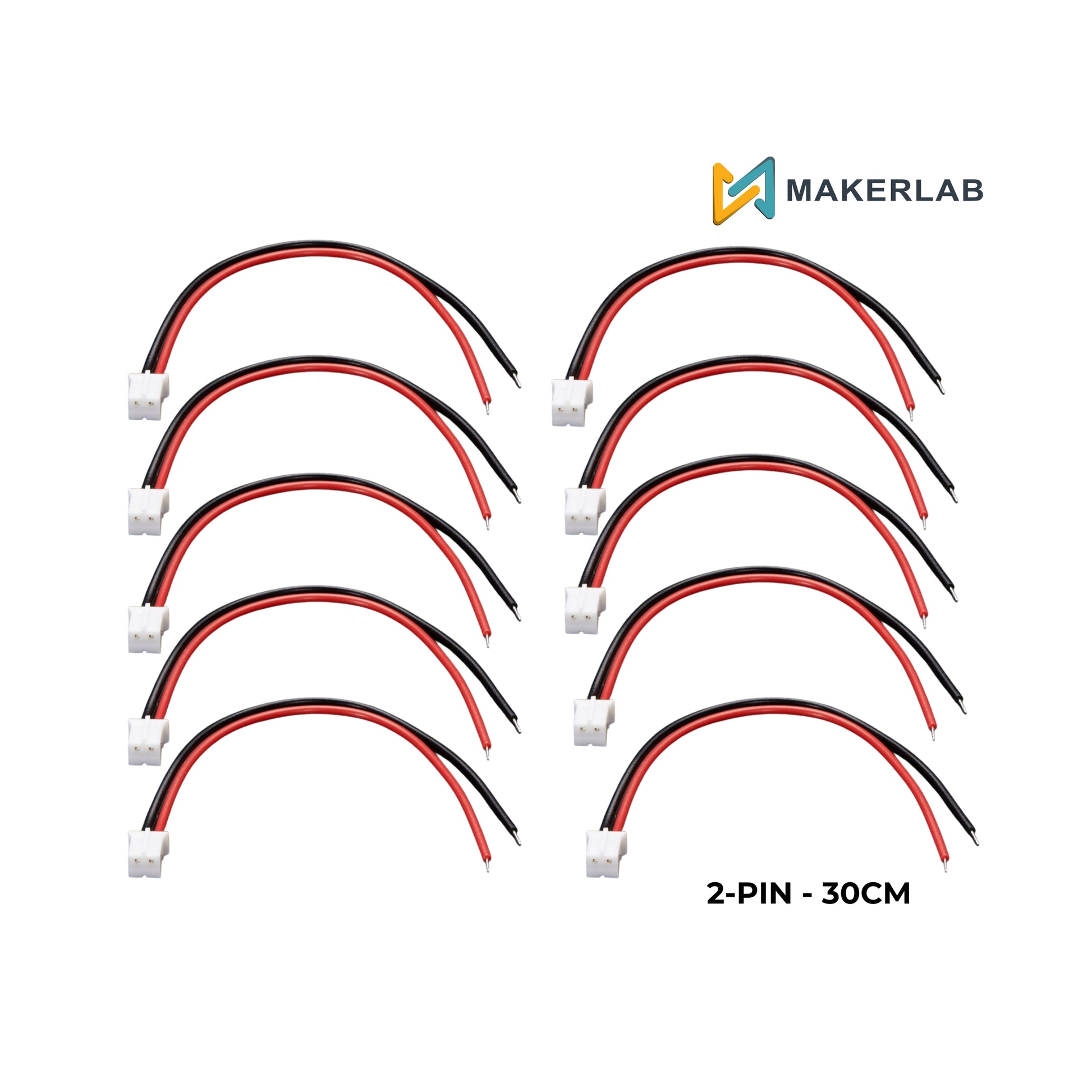

This 10 piece cable set features the popular JST PH 2.0mm interface, characterized by its compact, low-profile design and reliable friction-lock mechanism. Each cable is pre-crimped with a 2-pin female housing on one end and unterminated (bare) tinned leads on the other, allowing for direct soldering to PCBs or integration with other connectors.
The 300mm (approx. 12 inches) length is significantly longer than standard 100mm pigtails, making these ideal for routing power or signals across larger project enclosures, connecting LiPo batteries in drones, or extending fan and sensor wires in 3D printers.
Features
Extended 300mm Reach: Provides ample length for complex cable management without the need for additional extensions or soldering mid-wire.
Secure Friction Lock: The PH series housing features a small locking tab that provides a tactile "click," preventing the cable from vibrating loose in high-motion applications.
High-Flex 26AWG Wire: Constructed with multi-strand tinned copper wire, offering a balance of high flexibility and excellent conductivity.
Standard Polarity Coding: Pre-wired with red (positive) and black (negative) insulation for quick visual identification and reduced risk of reverse-polarity errors.
Universal 2.0mm Pitch: Fully compatible with standard JST PH male headers found on microcontrollers (like Adafruit/SparkFun boards), LiPo chargers, and 3D printer mainboards.
Specifications
Connector Type: JST PH (Female)
Pin Count: 2 Pins
Pitch (Spacing): 2.0 mm
Wire Gauge: 26 AWG (Tinned Copper)
Cable Length: 300 mm
Max Voltage: 100V -- 250V AC/DC
Current Rating: ~2.0A
Operating Temp: −25°C to +85°C
Insulation: PVC (Flexible)
