Description:

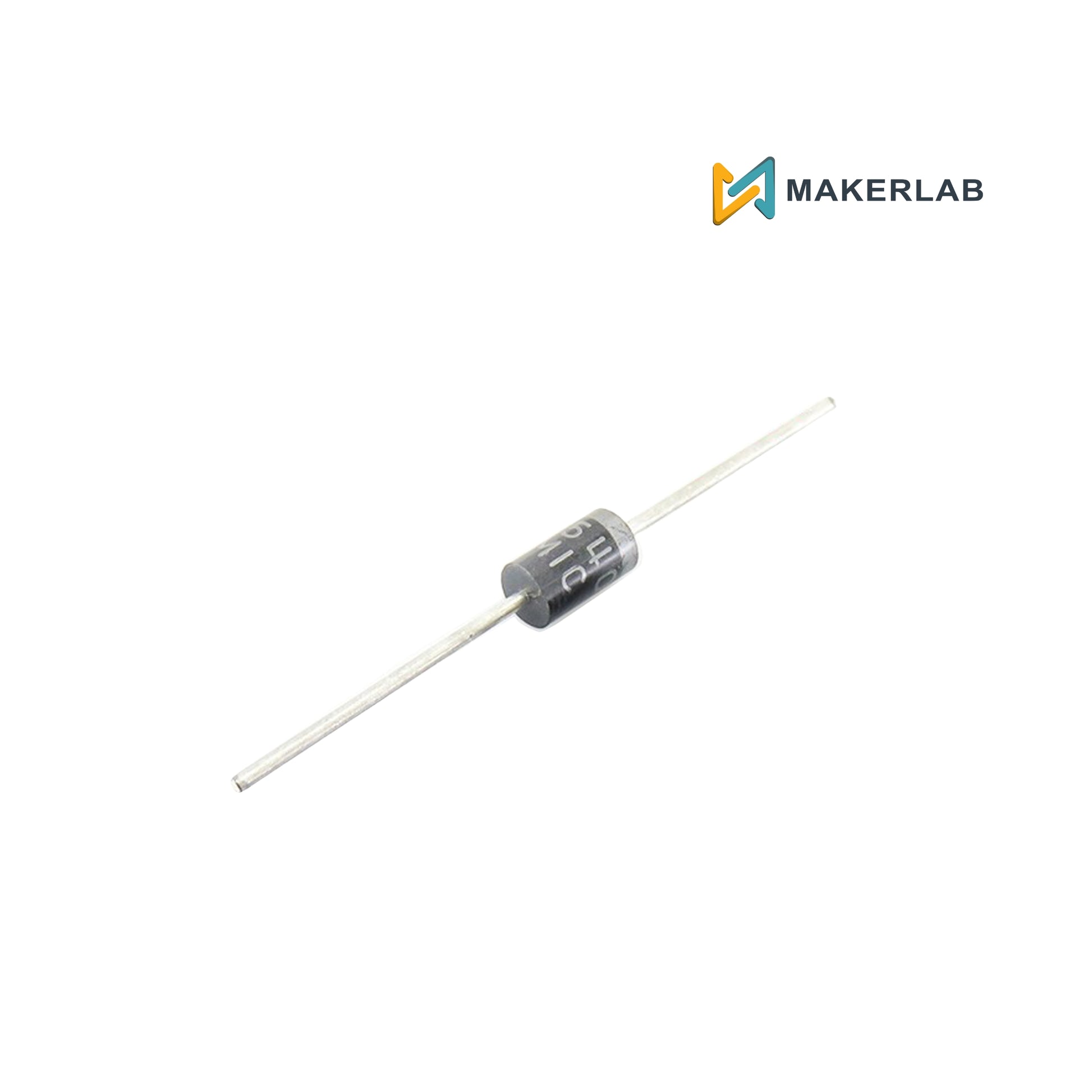

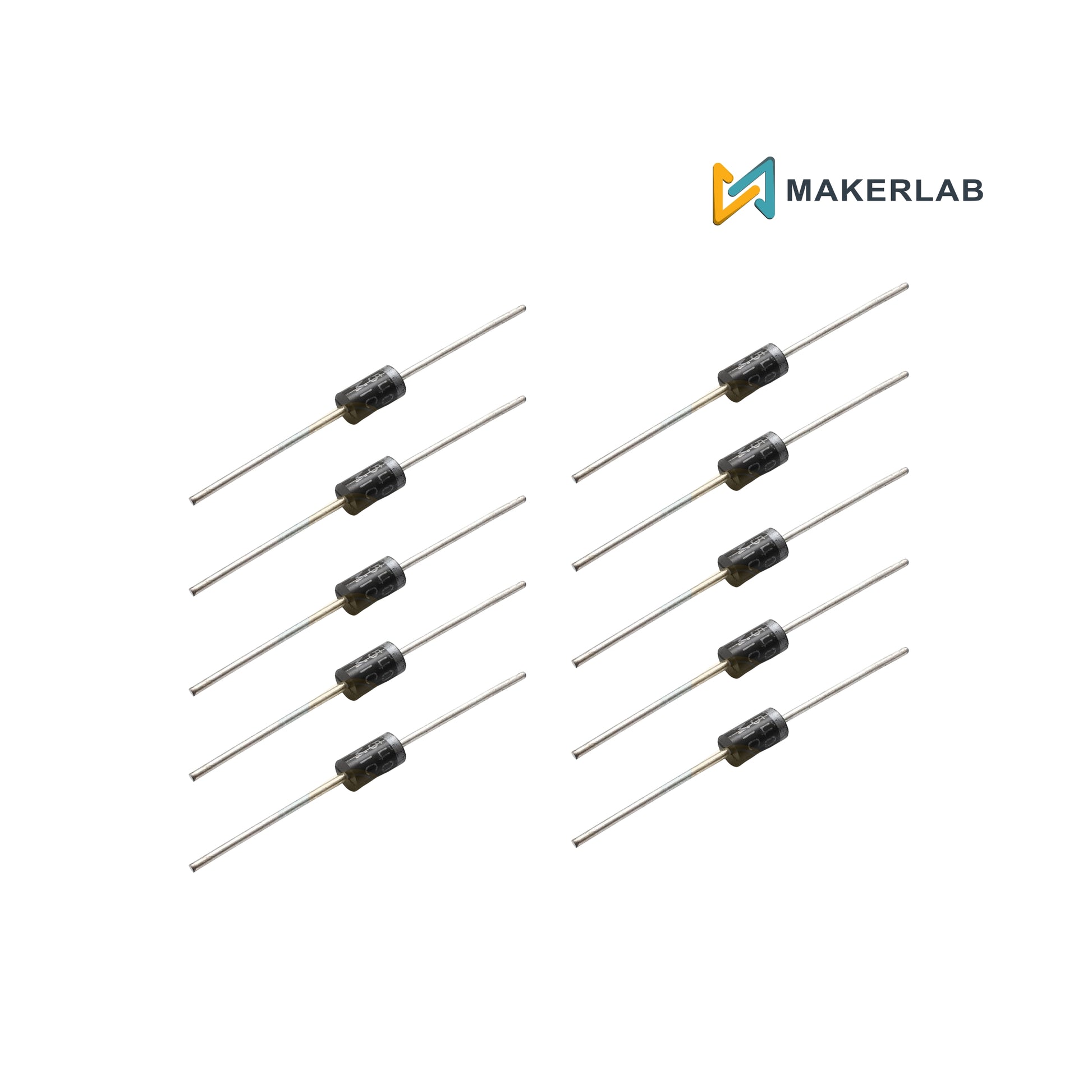

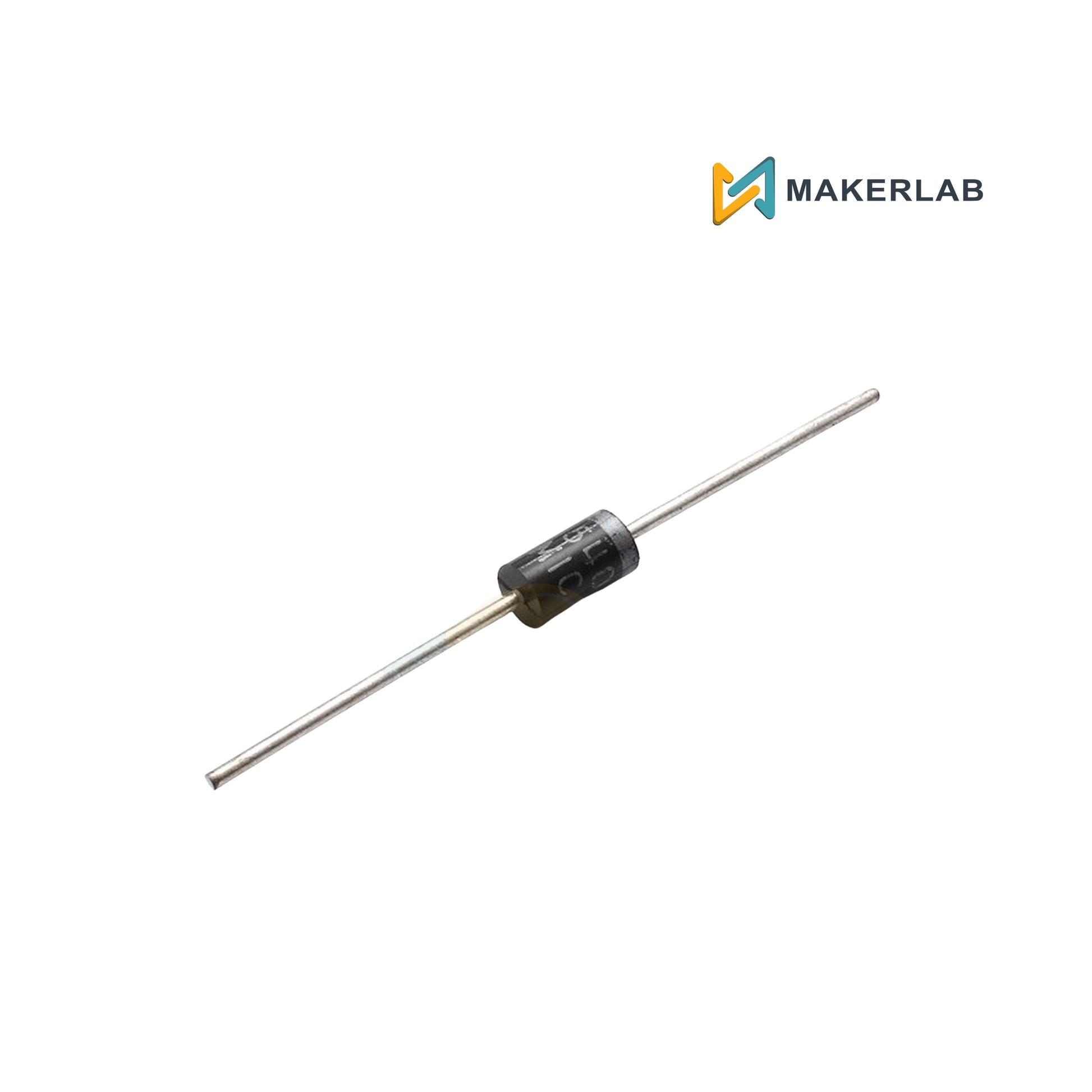

The 1N5401 belongs to a popular series of power diodes known for their high surge current capability and low forward voltage drop. Unlike the smaller 1N400x series which is rated for 1A, the 1N5401 can handle up to 3.0 Amperes of continuous current.
Its DO-201AD (DO-27) package features thicker leads to help dissipate heat into the PCB traces. It is primarily used to convert Alternating Current (AC) to Direct Current (DC) in bridge rectifiers or to act as a "freewheeling" diode to protect sensitive components from inductive voltage spikes in motor and relay circuits.
Features:
High Current Capacity: Rated for a maximum average forward rectified current of 3.0A, making it suitable for medium-power applications.
High Surge Reliability: Can withstand non-repetitive peak forward surge currents up to 200A (for 8.3ms), protecting the circuit during initial power-up.
Through-Hole (DIP) Mounting: Large axial leads are easy to solder and provide a strong mechanical connection to the circuit board.
Standard Polarity Marking: A clear silver band indicates the Cathode (negative) end for easy identification during assembly.
Specifications:
Diode Type: Standard Recovery Rectifier
Max Average Current (IF(AV)): 3.0 A
Max Repetitive Reverse Voltage (VRRM): 100 V
Peak Forward Surge Current (IFSM): 200 A
Forward Voltage Drop (VF): Max 1.2V at 3.0A
Reverse Leakage Current (IR): 5.0μA at 25°C
Package Type: DO-201AD (Axial Leads)
Operating Temperature: −65°C to +150°C
