Description:

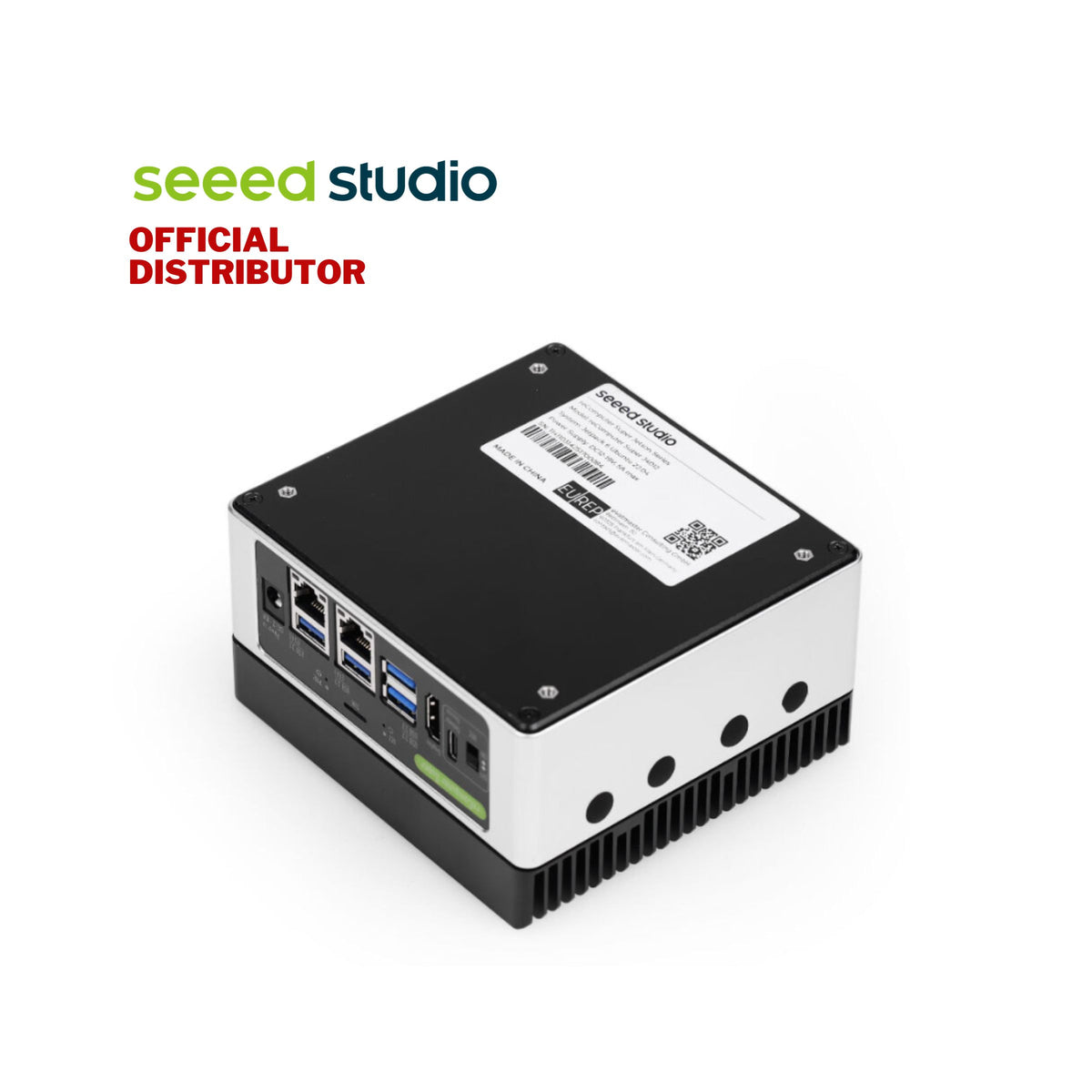

The Seeed reComputer Super J3010 is a compact, high-performance Edge AI device designed for professional deployment and demanding AI applications such as robotics, industrial automation, and smart city infrastructure. It is pre-built with the NVIDIA Jetson Orin™ Nano 4GB production module, enclosed in a robust aluminum case with an advanced thermal solution for reliable operation in industrial environments.
This model is part of the "Super" series, featuring an enhanced carrier board and pre-installed JetPack 6.2 on a 128GB NVMe SSD to enable a "MAXN Super Mode." This mode significantly boosts the device's AI performance up to 34 TOPS, offering a substantial performance leap over the classic version and delivering capabilities for running large language models (LLMs) and complex multi-modal AI tasks directly at the edge with high efficiency.
Features:
Super Boost AI Performance: Delivers up to 34 TOPS in MAXN Super Mode, ideal for demanding applications like vision AI, robotics, and generative AI.
Energy-Efficient Operation: Configurable power modes from 10W to 25W allow for optimized performance and energy consumption.
Robust Thermal Design: Operates reliably in temperatures from -20°C to 65°C.

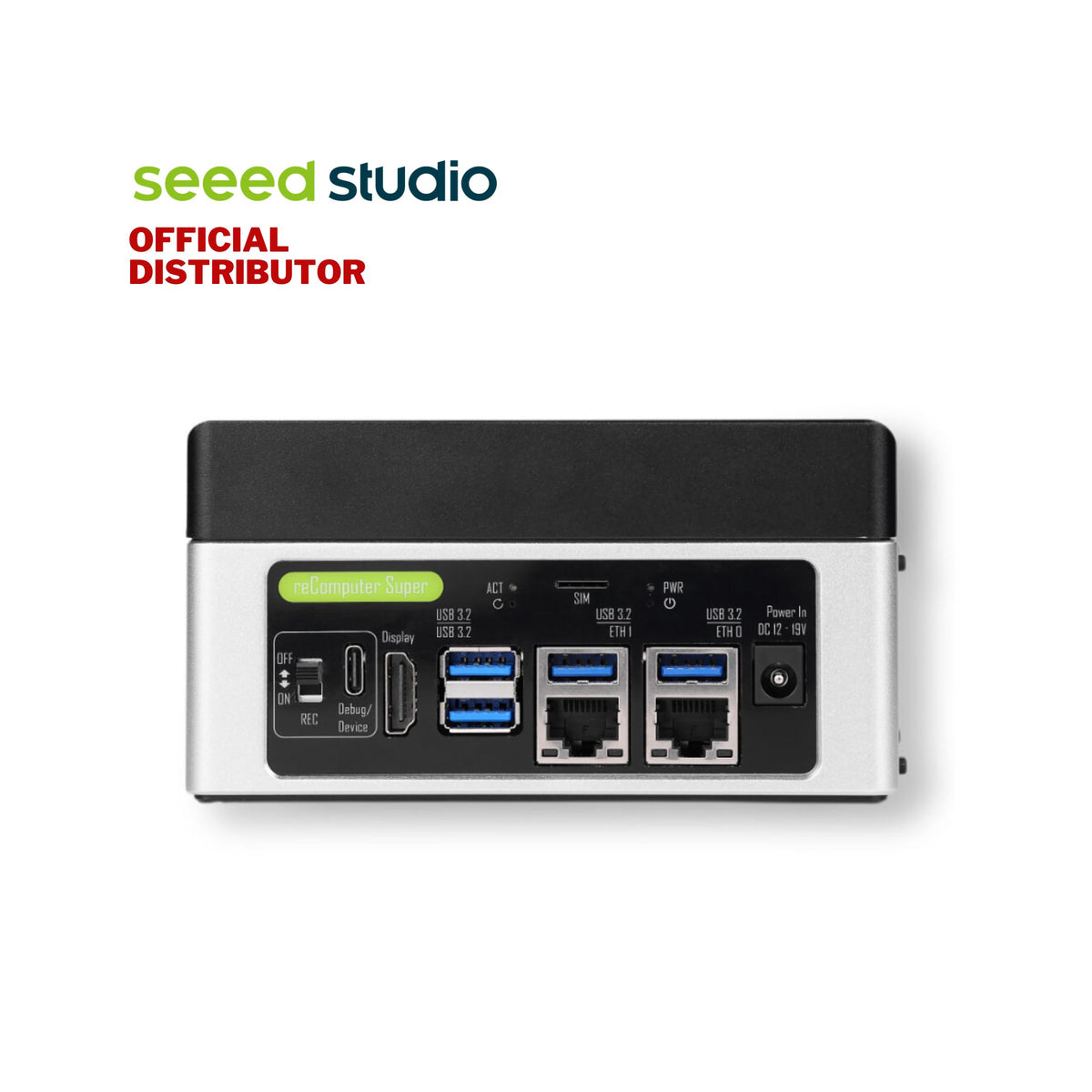

Rich interfaces: features 2xRJ45, SIM card, 4×USB 3.2, HDMI 2.1, and CAN. Also including M.2 Key E/M, Mini-PCIe, 4xCSI for connectivity and cameras.
Ready for Deployment: Pre-installed with JetPack 6.2 and a 128GB NVMe SSD, supporting AI frameworks like NVIDIA Isaac, Hugging Face, and ROS2/1, enabling rapid development of various AI applications.
Specifications:
System on Module: NVIDIA® Jetson™ Orin™ Nano 4GB (Production Module)
AI Performance: Up to 34 TOPS (INT8) in MAXN Super Mode
GPU: 512-core NVIDIA Ampere Architecture with 16 Tensor Cores
CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU
Memory (RAM): 4GB 64-bit LPDDR5 (Up to 51 GB/s in Super Mode)
Storage (Included): 128GB NVMe SSD (M.2 Key M 2280)
Operating System: Pre-installed with NVIDIA JetPack 6.2
Video Output: 1 × HDMI 2.1
Camera Interface: 4 × MIPI CSI (2-lane 15-Pin)
Networking: 2 × RJ45 Gigabit Ethernet Ports
USB Ports: 4 × USB 3.2 Type-A (10 Gbps), 1 × USB 2.0 Type-C (Device Mode/Debug)
Wireless: 1 × M.2 Key E (Pre-installed Wi-Fi/BT combo module)
Expansion Slots: 1 × M.2 Key M, 1 × M.2 Key E, 1 × Mini-PCIe (for 4G/LTE)
Industrial I/O: 1 × CAN Bus (4-Pin Header), 40-Pin GPIO Header
Power Input: 12-19V DC (5525 Barrel Jack)

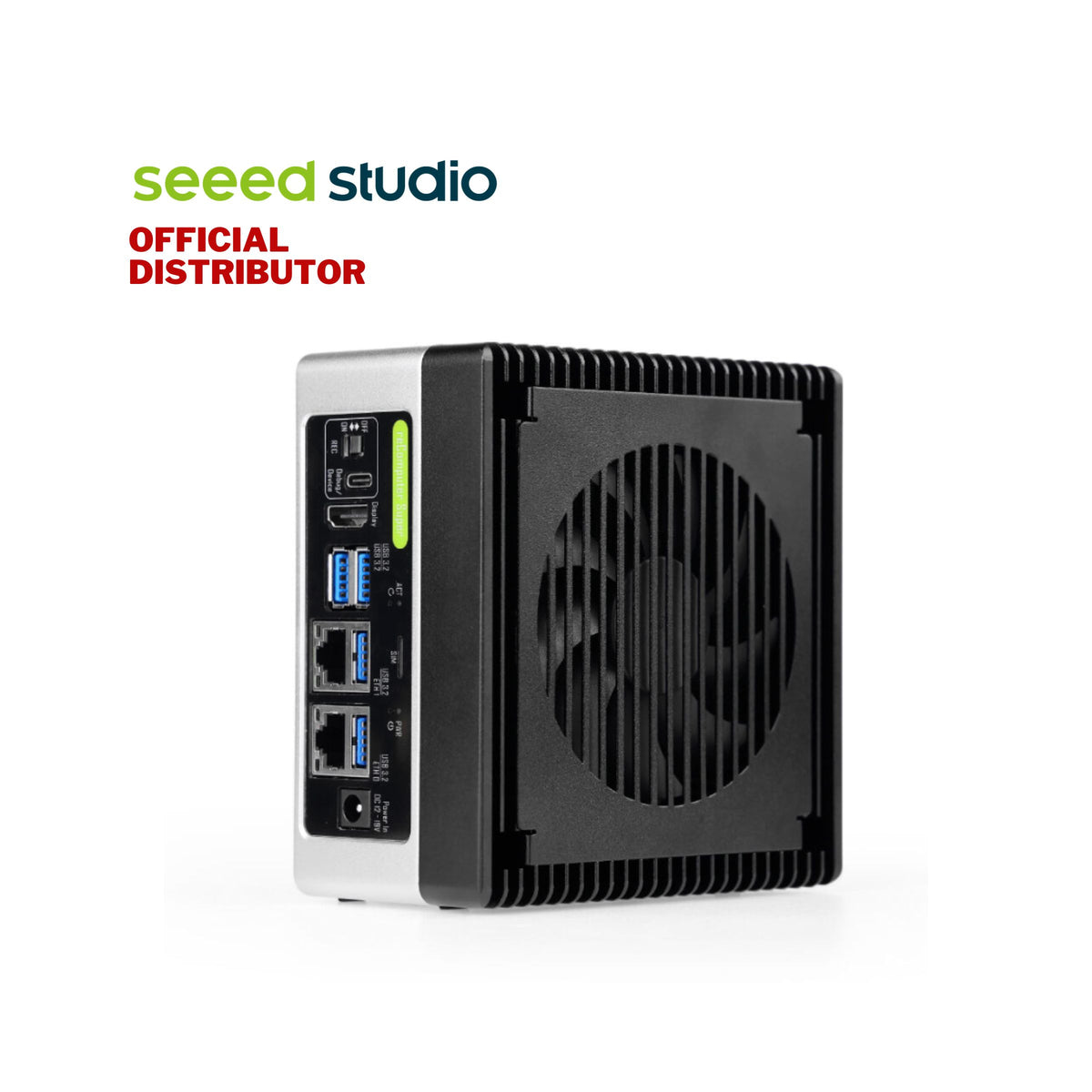

Thermal Management: Active Cooling (Aluminum Heatsink with Fan)
Operating Temperature: −20∘C to 65∘C
