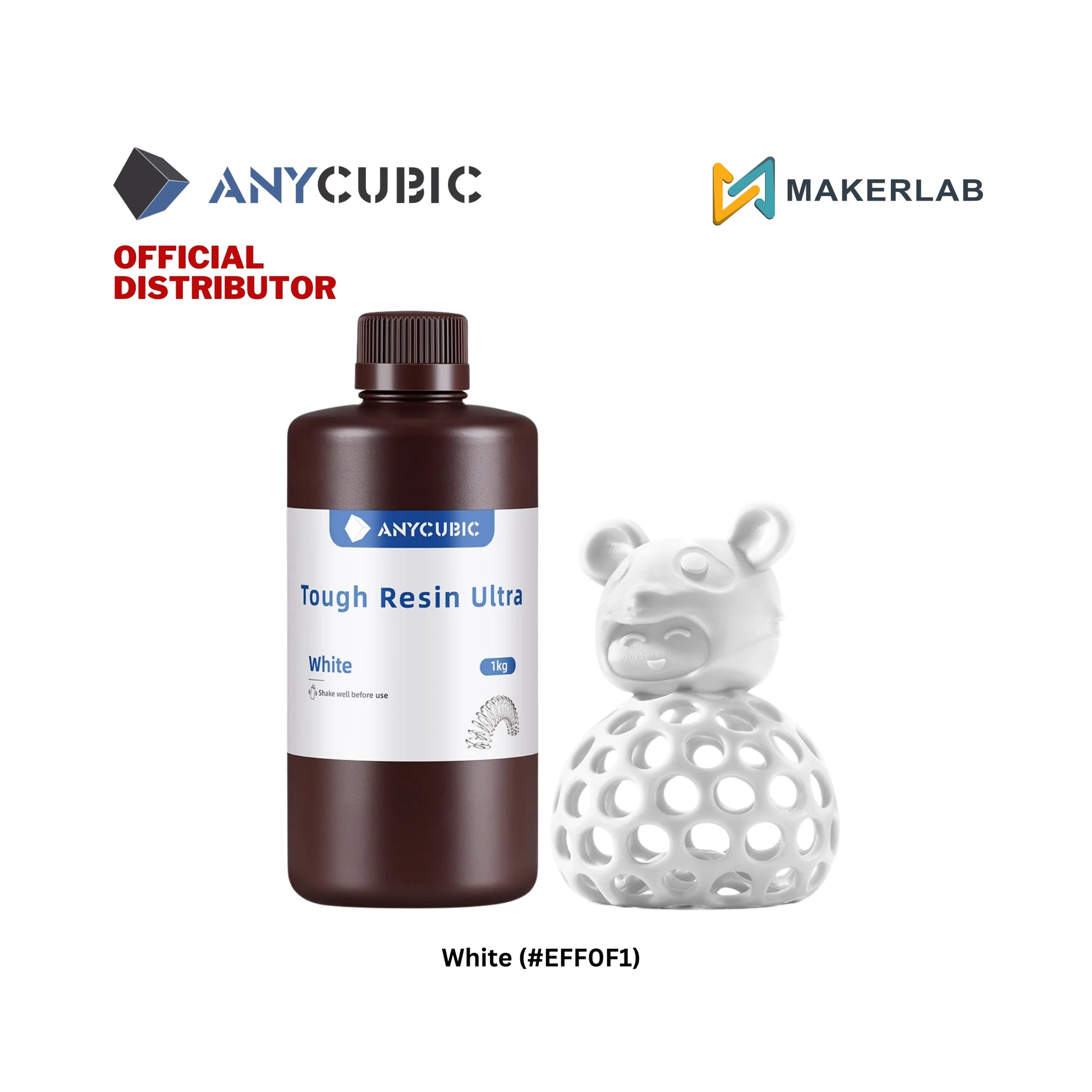

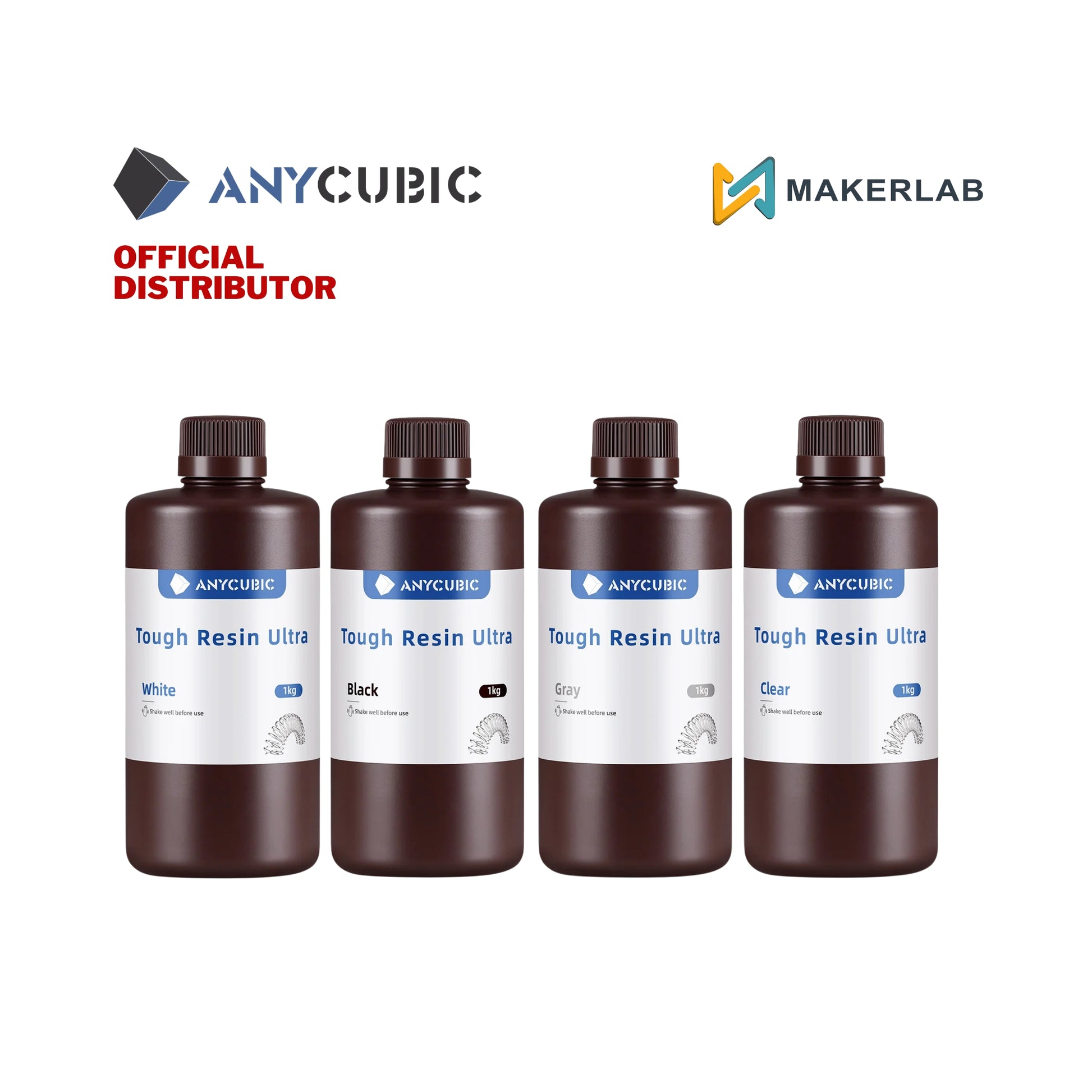

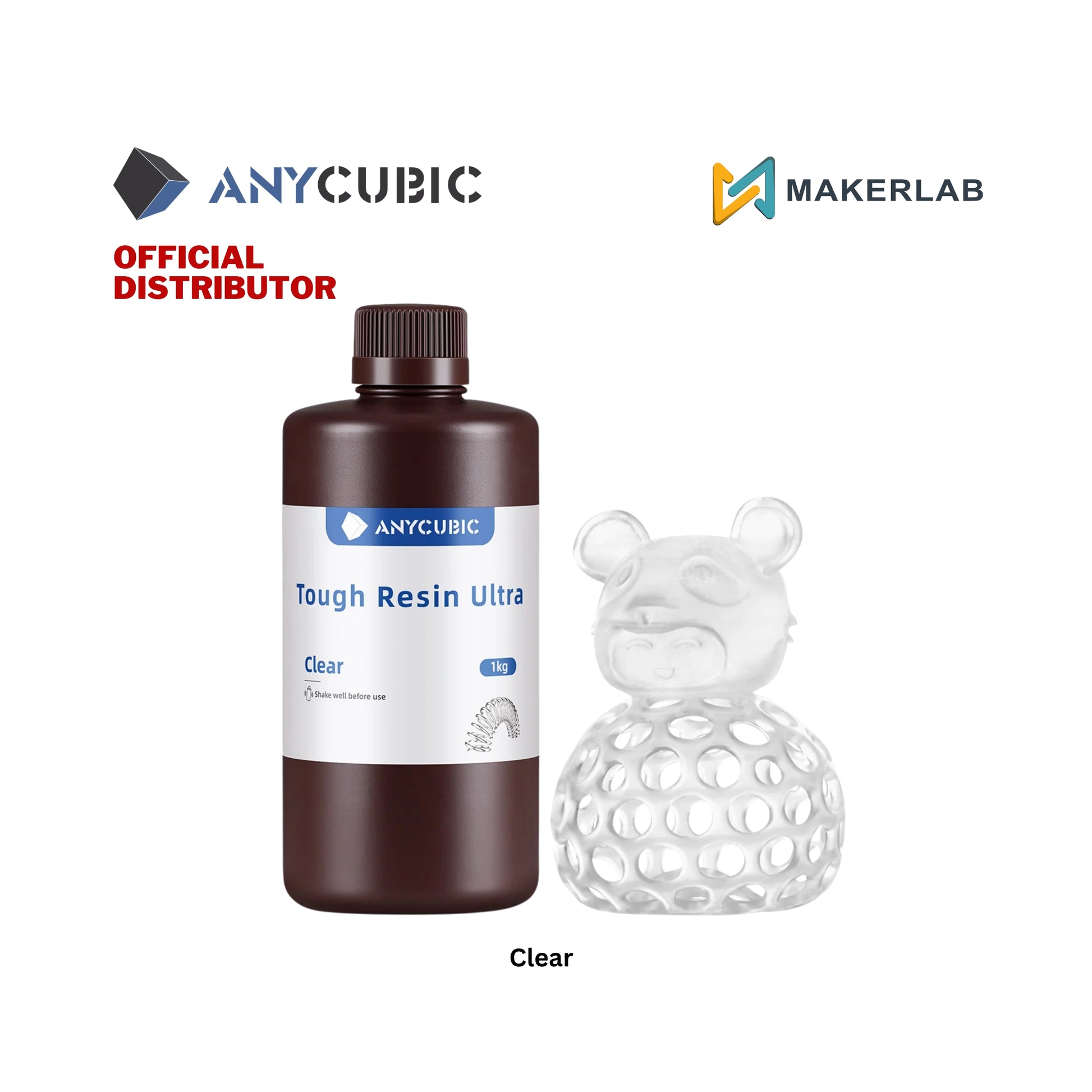

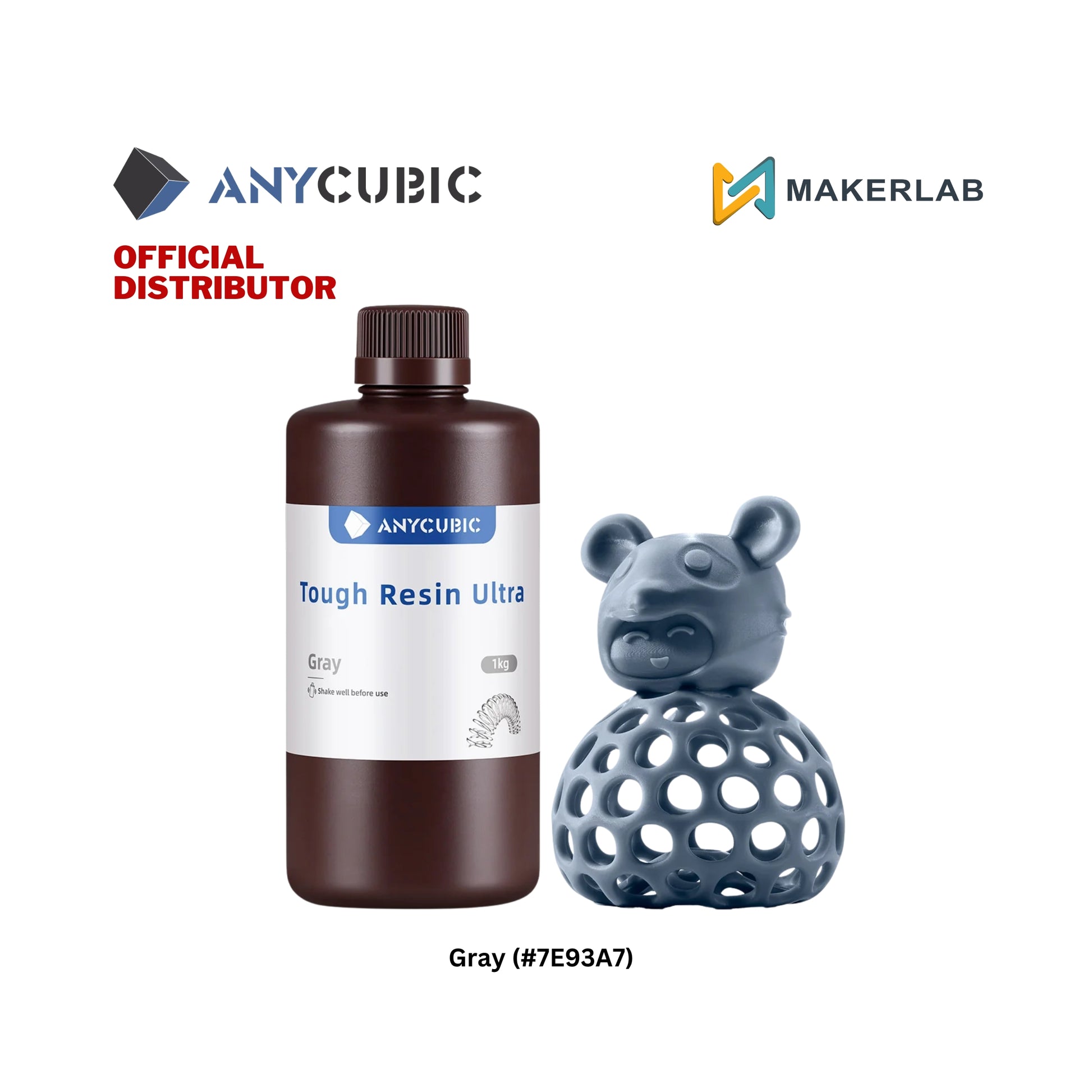

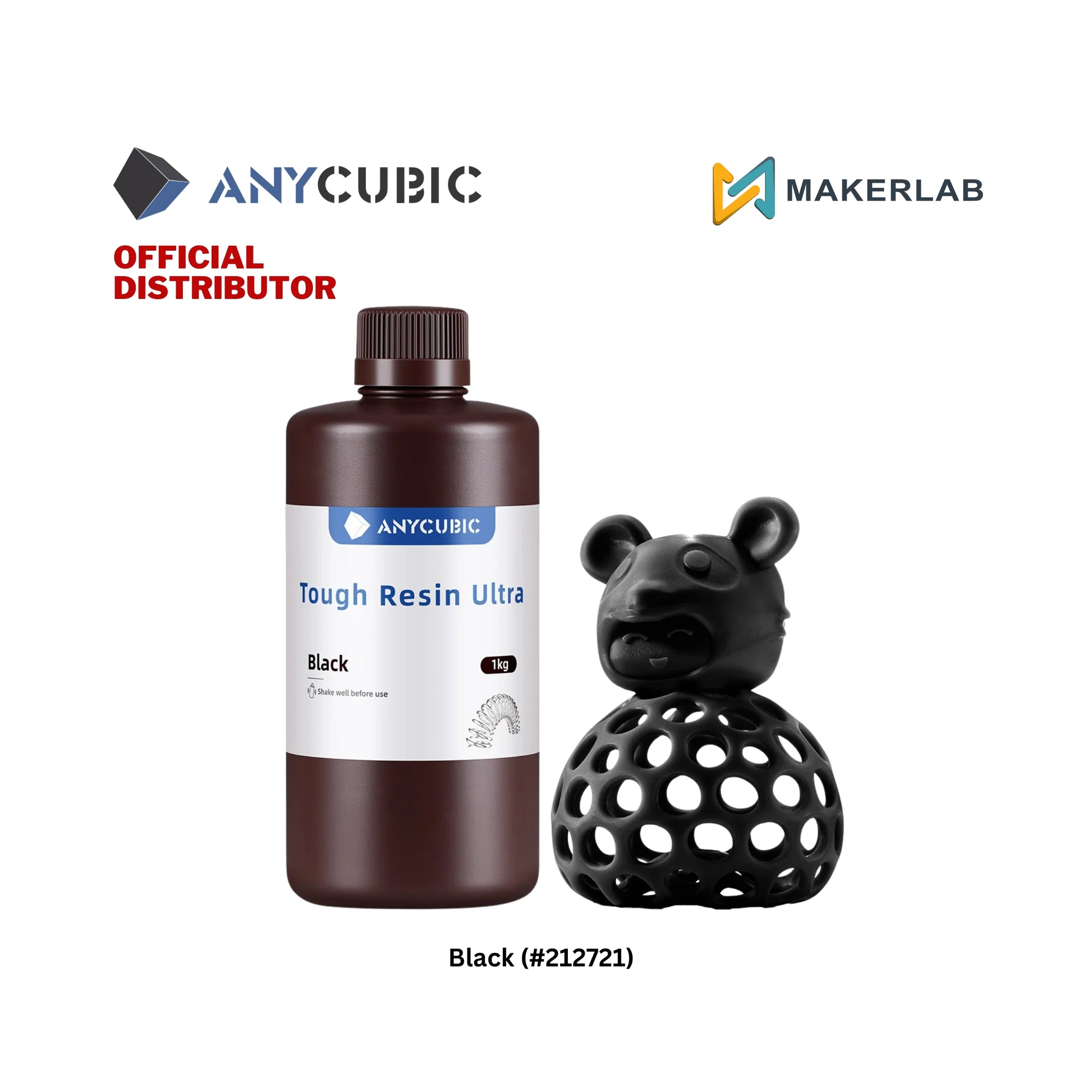

The Anycubic Tough Resin Ultra is a professional-grade engineering resin designed for high impact resistance and mechanical durability. It bridges the gap between standard rigid resins and flexible resins, offering a tough but slightly pliable characteristic similar to molded ABS or Nylon.
It is specifically formulated for parts that need to endure functional testing, repeated mechanical stress, or high-impact environments. Unlike standard resins that shatter upon impact, Tough Resin Ultra can withstand significant bending and compression, returning to its original shape without cracking.
Features

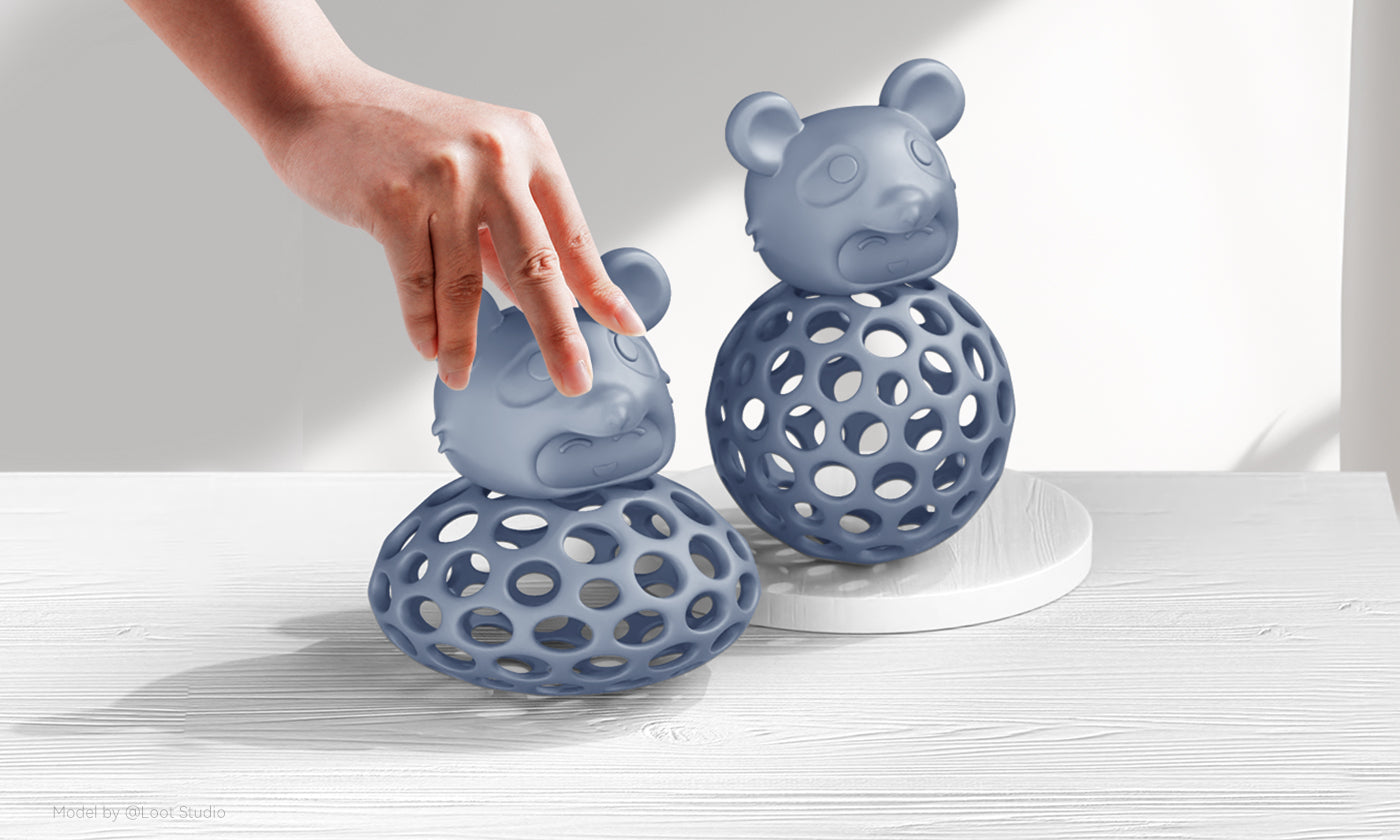

Highly Flexible & Resilient Against Cracking
With 80% elongation at break, this resin delivers exceptional toughness and flexibility. It maintains structural integrity even in thin-walled designs, resists cracking under stress, and rebounds quickly after deformation. Prints reliably withstand accidental impacts, drops, and long-distance shipping.
Weather- & Moisture-Resist for Long-Term Storage
Anycubic Tough Resin Ultra is engineered to combat moisture intrusion and resist UV-induced degradation and embrittlement. With ultra-low water absorption, prints maintain dimensional stability for long-term display and storage.

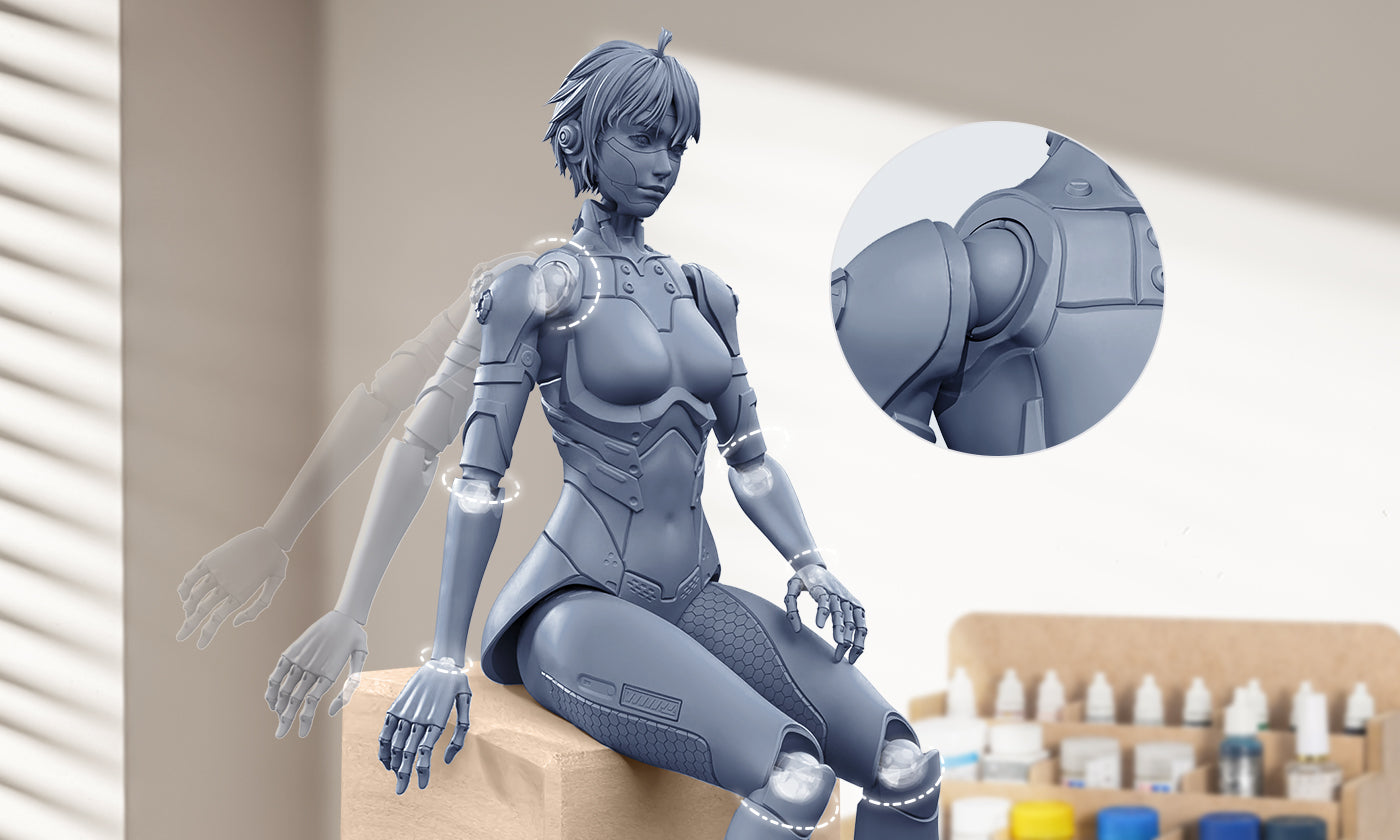

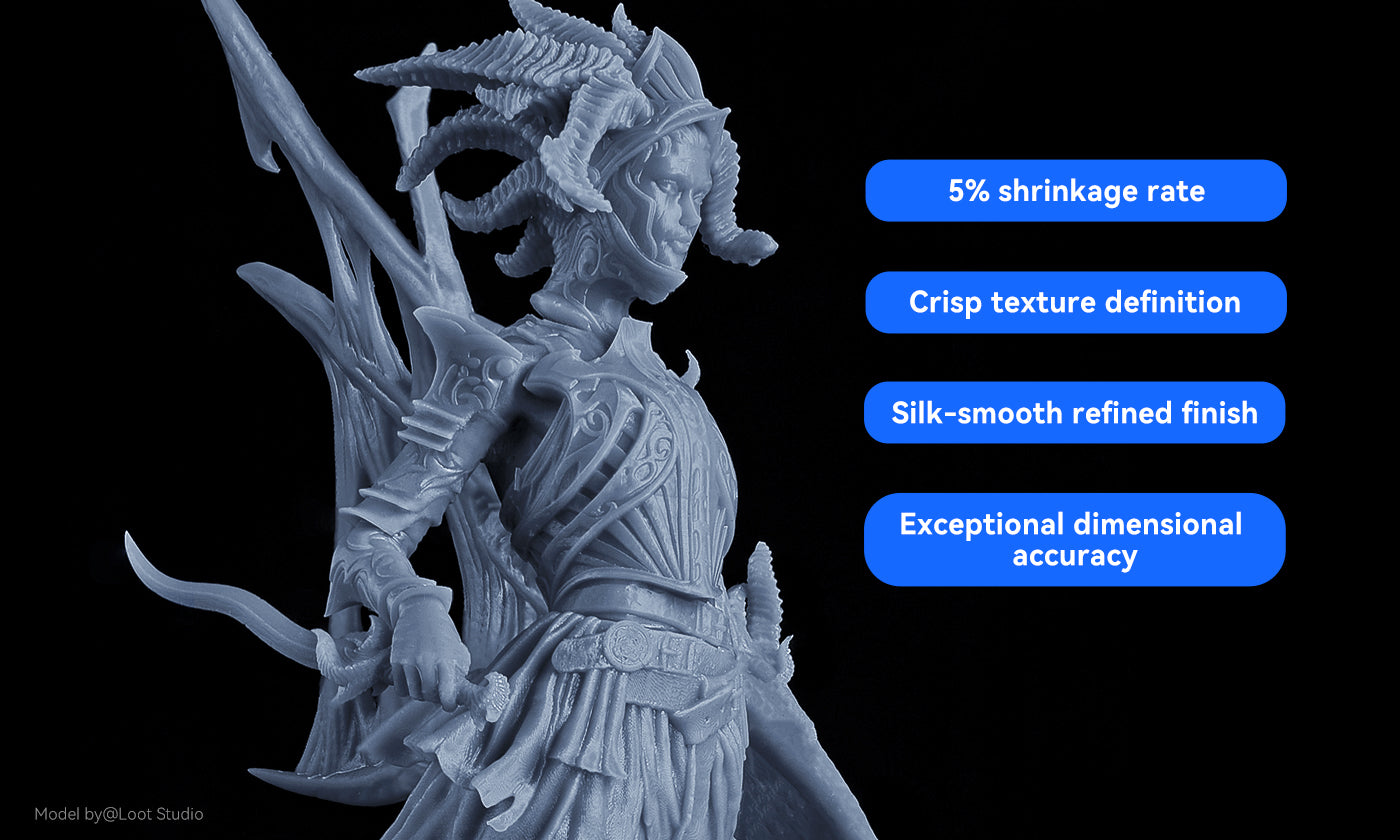

Extreme Detailed Prints
Superior print fidelity for fine details like hair textures, combined with versatile functionality for articulated models. Parts interchange seamlessly, enabling unlimited customization.

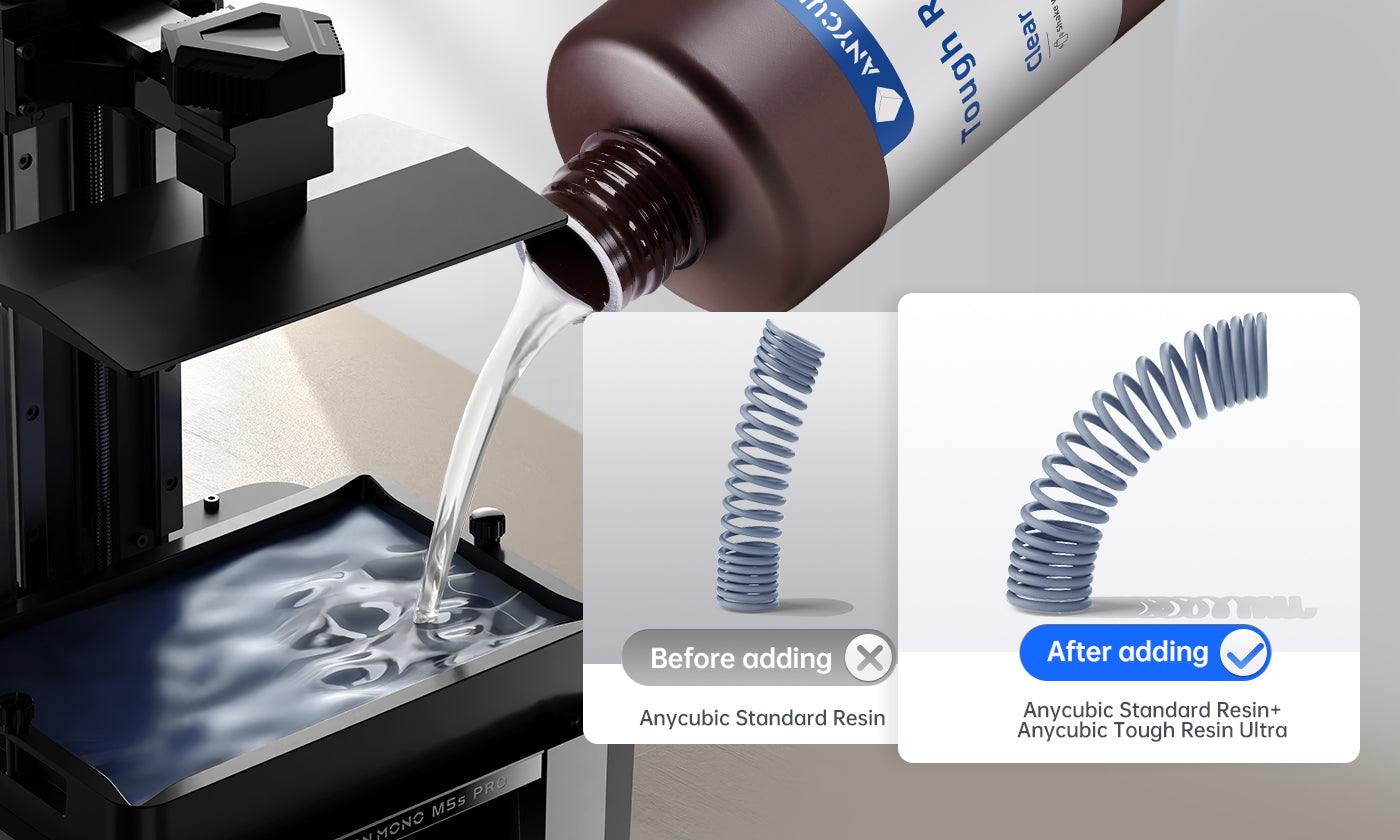

Acts as an Additive
Anycubic Tough Resin Ultra serves two purposes: It functions effectively as a standalone printing material, or as an additive to blend with other resins. When mixed, it enhances impact resistance and long-term durability of the final print.
Minimal Odor & Eco-Friendly
Anycubic resin is specially formulated for minimal odor during printing.
Wide Compatibility
It is compatible with all LCD/DLP printers that use 405nm UV light curing technology and works best with Anycubic LCD printers.
Specifications
PRINT PARAMETERS
First layer exposure duration: 20-40 s
Normal exposure duration: 1.5-3 s
Print temperature: 20-50 ℃
PHYSICAL PROPERTIES
Material: Photopolymer Resin
Wavelength: 365-405 nm
Viscosity: 500-900/mPa·s(25℃)
Density: 1.05-1.25/g/cm³
MECHANICAL PROPERTIES
Hardness: 71-75 HD
Tensile Strength: 20-28 MPa
Elongation at Break: 70-80%
Bending Modulus: 15-25 MPa
Bending Strength: 350-800 MPa
Young's Modulus: 350-450 MPa
Volume Shrinkage Rate: 5.1-6.2%
POST-PROCESSING
Cleaning: 95% IPA
Washing duration: ≥3 mins
UV Wavelength: 405 nm
Curing Temperature: 18-30 ℃
UV Intensity: 25000-30000 uW/c㎡
Curing time: 3 mins
Disposal: Post-UV-curing resin is treated as plastic waste
Instructions for Use
(1) Before use:
Shake the liquid resin before use. Clean the resin tank and the molding platform to keep the bottom of the resin tank in good condition for light transmission.
(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements. Select the correct print parameters and settings for printing.
(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers, tweezers, containers, gloves; ethanol(≥95%), lactate, or isopropyl alcohol cleaning solution;
(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade.
B. Submerge the model in the cleaning solution, rinse or ultrasonically wash, then take out and drain; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.
Precautions
-
The ideal condition for storing uncured resin is a cool, dark place at room temperature and protected from light to avoid high temperature or sunlight.
-
Suggested operating temperature is 18-35°C, and a low temperature may affect the printing effect; thus, the resin can be properly preheated before use (not more than 60°C).
-
If the resin pigment settles, it can be used after stirring or shaking.
-
In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
-
To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
-
To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended: (1) The intensity of the mercury lamp or LED light source is 5-10 mW/m², and the duration is no more than 1 hour (self-regulation); (2)The exposure time in the sun (summer) is around 1 hour; (3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited. (4) It is recommended to print in a dark room or be covered with a lid while printing, as resin is a photosensitive material.
PS: Material properties will vary depending on the molding equipment, post-curing method, and testing equipment. For safety information, please refer to the MSDS of this product.
